Layout
57 x 21 sq ft
Plot size
1197 sq ft
Build area
4788 sq ft
Facing
Floors
4
Bedrooms
1
Bathrooms
9
Car Parking
Yes
Open Terrace
No
Lift
No
Approx build cost
5745600
Here’s a beautifully planned small banquet hall design in Eluru, Andhra Pradesh, created for a client who wanted to build a compact yet fully functional event venue on a very tight 21x57 ft plot. Despite the limited area, this G+3 commercial building offers everything needed for hosting small events like birthdays, anniversaries, corporate meetings, naming ceremonies, and private functions.
What makes this banquet hall special is its smart vertical planning, modern elevation, and the ability to accommodate 50–75 guests comfortably on different floors. The building is south-facing and designed for easy operation in a busy neighbourhood where space is limited.

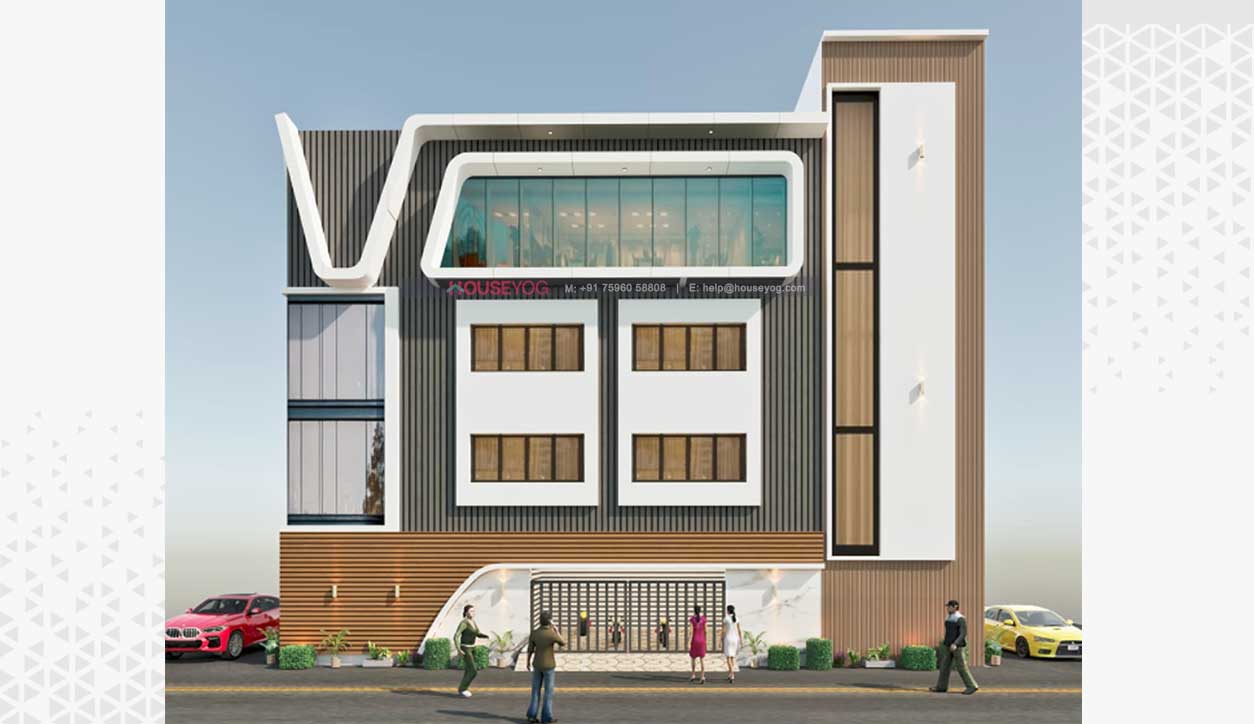

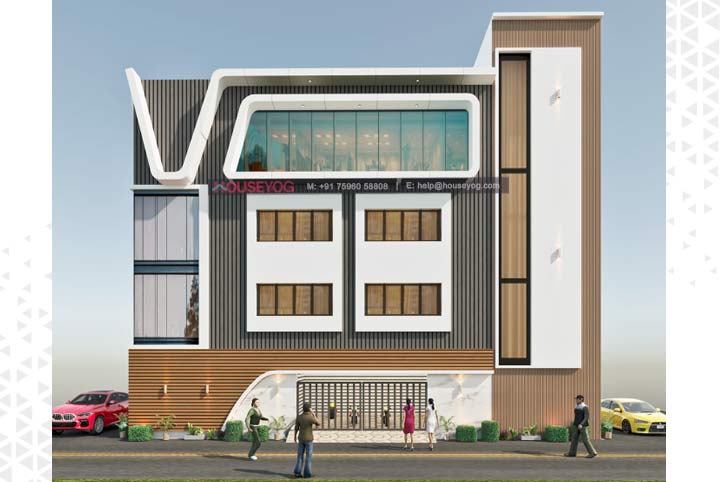

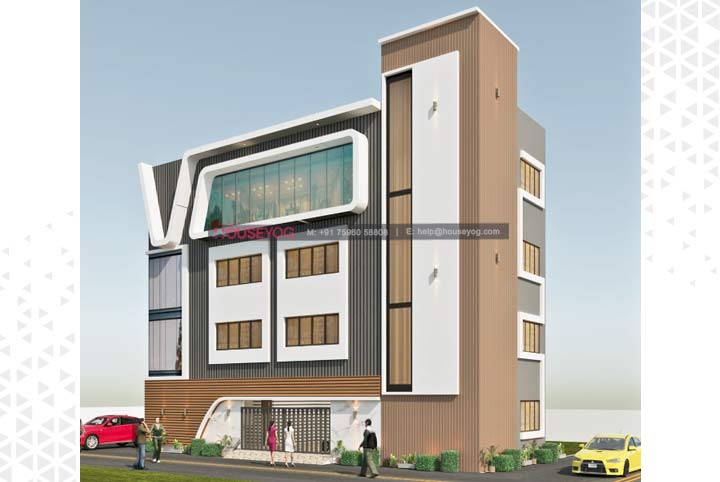

The elevation has a premium commercial look with clean vertical lines, glass elements, stylish cladding, and a balanced façade. The goal was to make the building stand out from the surrounding structures and give it a high-end appearance despite the compact plot size.

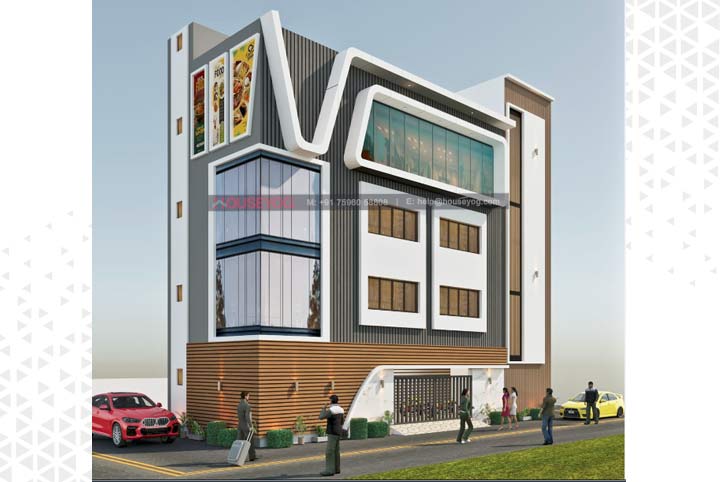

The standout feature is the bold wrap-around white façade element on the upper floors, giving the building a striking, modern identity in a dense urban street.
This design ensures the banquet hall has a strong street presence and looks appealing for social and corporate events.
The ground level has been planned efficiently to maximize utility:
Perfect for managing operations smoothly in a small commercial setup.
This floor features a compact multipurpose hall ideal for training sessions, workshops, birthday parties, or small gatherings.
A great space for intimate events or corporate meetings.
This is the primary event area with bright interiors and thoughtful circulation:
Designed to handle frequent social functions without crowding.
The third floor has a well-laid-out dining hall:
Since the client owns a restaurant nearby, the banquet is designed to receive food from an external kitchen efficiently.
The terrace floor acts as a flexible utility area and can be used for storage, equipment, or small open gatherings if needed.
Why This Banquet Hall Design Works So Well on a Small Plot
Designing a banquet hall on a 21x57 ft plot is challenging, but this project shows how smart planning can deliver:
This is ideal for urban neighbourhoods with limited land availability.
If you're planning a similar compact banquet hall design, make sure to optimise:
For more tips on designing small-town banquet halls, check this guide: 👉 How to Plan a Marriage Hall or Banquet Hall in Small Towns
Whether you have a small plot or a large commercial space, we can create a personalised banquet or function hall design tailored to your city, budget, and business needs.
Explore Our Marriage & Banquet Hall Design Services, Request a Free Quote for Your Project or Call/WhatsApp: +917596058808
Ground Floor plan features and amenities

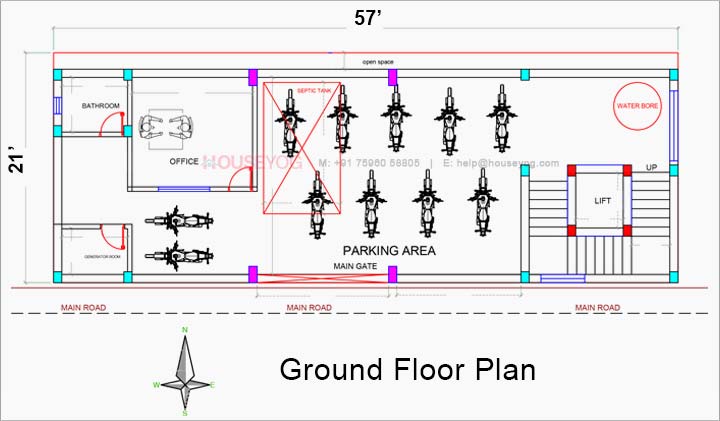

Ground Floor: Parking area with office, generator room, lift, staircase, and utility spaces planned for a compact 21×57 ft plot.
Hall
Yes
Attached Bathroom
1
Study
No
Temple
No
Utility space
Yes
Swimming pool
No
Garden
Yes
Car Parking
Yes
First Floor plan features and amenities

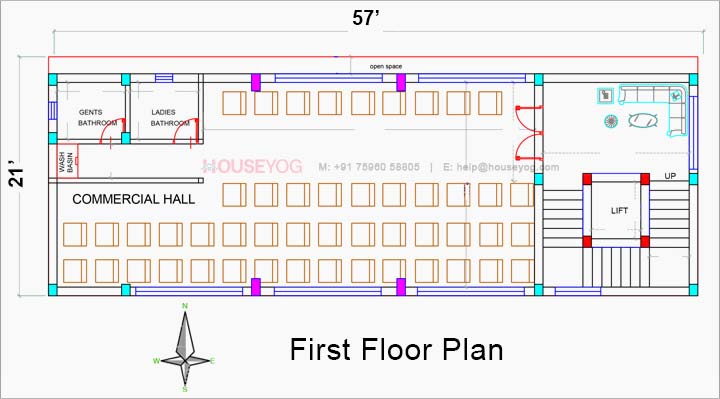

First Floor: 50-seater commercial hall with separate washrooms, handwash area, and smooth access via lift and stairs.
Hall
Yes
Common Bathroom
2
Study
No
Temple
No
Utility space
Yes
Swimming pool
No
Garden
No
Car Parking
No
Second Floor plan features and amenities

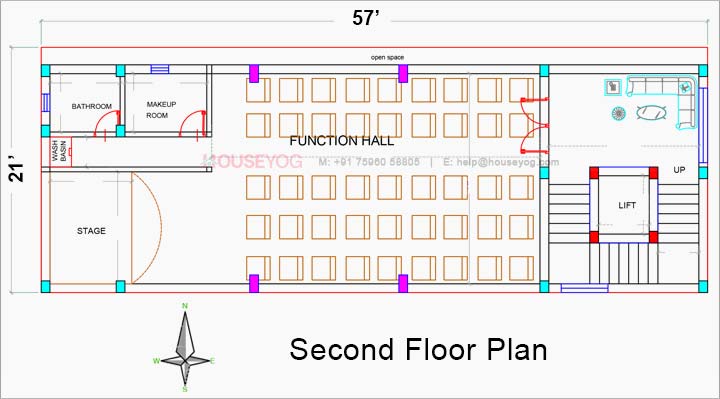

Second Floor: Main function hall with stage, 50-guest seating, dedicated washrooms, and a central waiting lobby.
Hall
Yes
Common Bathroom
2
Study
No
Temple
No
Utility space
Yes
Swimming pool
No
Garden
No
Car Parking
No
Third Floor plan features and amenities

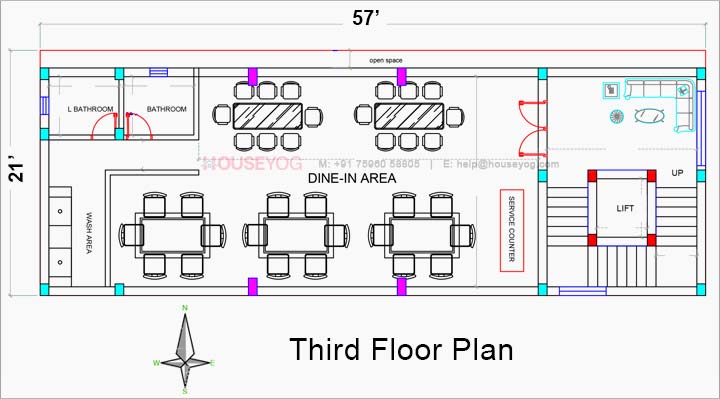

Third Floor: Dining hall with 35-person seating, service counter, wash area, and waiting space near lift and stairs.
Hall
Yes
Common Bathroom
2
Study
No
Temple
No
Utility space
Yes
Swimming pool
No
Garden
No
Car Parking
No
Rooftop plan features and amenities

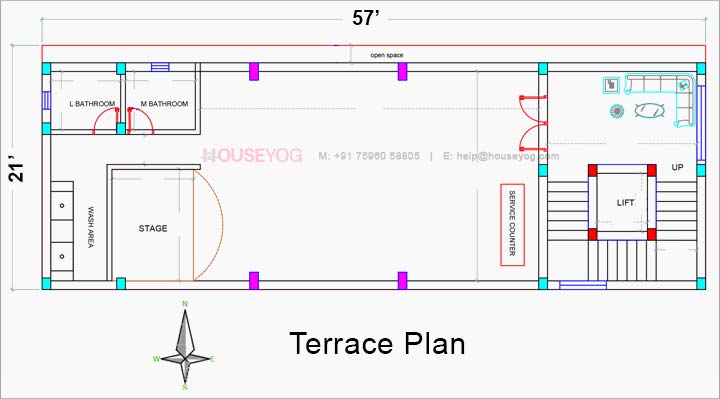

Terrace: Multi-purpose utility space for support functions and equipment.
Hall
Yes
Study
No
Temple
No
Utility space
No
Swimming pool
No
Garden
No
Car Parking
No
Design style: Luxury, Modern
Last updated on: 02 Dec 2025
Design Code: HP1088
This house plan and design can be fully customized to meet your plot size and functional requirements. If you liked this plan and need cosmetic changes, then please tell us about your desired changes and we’ll help you get it right at surprisingly affordable rates.
Call us on 75960 58808 and talk to our experts now.
