28x50 Duplex Indian House Plan – 3bhk, East Facing, Open Parking - HP1037

Key Features of This Plan

  • Layout
    28 x 50 sq ft

  • Plot size
    1400 sq ft

  • Build area
    1586 sq ft

  • Facing
    East

  • Floors
    2

  • Bedrooms
    3

  • Bathrooms
    2

  • Car Parking
    Yes

  • Open Terrace
    No

  • Lift
    No

  • Approx build cost
    1903200

Plan Description

Here's a compact, comfortable and modern 3 BHK duplex house plan with a combined built up area of approx 1586 sq ft. This beautiful duplex house can be built on a plot size of approx 1400 to 1500 sq ft. The client had a plot size of 28xby sq ft and they wanted a modern house that is spacious as well space optimized. There is a car parking space and front side space that can be used for landscaping purposes.

In this east facing duplex house plan design, the ground floor built up area is approx 801 sq ft and features spacious hall (the dining and living area), super spacious bedroom with a balcony at the back side, a good sized kitchen and a separate wash area with a common toilet.

The staircase on the ground floor leads to the first floor of this duplex house. The first floor of the house has a built up area of approx 785 sq ft and features a grand living area, two bedrooms and one bathroom. There is also a front side open sit out area with potted planters.

The exterior elevation design of this modern duplex house looks beautiful. We have used quite a few colors, like lemon green, brown, and grey along with off white. The exterior view of the house looks sleek and very much modern and Indian at the same time.

This house plan is fully editable and can be customized as per your space requirement and priority and if you liked this house plan or elevation design, and want to customize it to your needs, then feel free to check with us.

Plan Specification

Built up area around: 801 sq ft - front open space

  • Bedroom
    1

  • Hall
    Yes

  • Kitchen
    1

  • Common Bathroom
    1

  • Study
    No

  • Temple
    No

  • Utility space
    Yes

  • Swimming pool
    No

  • Garden
    No

  • Car Parking
    Yes

Built-up area approx: 785 sq ft - features 2 bedrooms, one bathroom, living room, sit out area and one balcony.

  • Bedroom
    2

  • Hall
    Yes

  • Common Bathroom
    1

  • Study
    No

  • Temple
    No

  • Balcony
    1

  • Utility space
    No

  • Swimming pool
    No

  • Garden
    No

  • Car Parking
    No

House Plan and Elevation Images

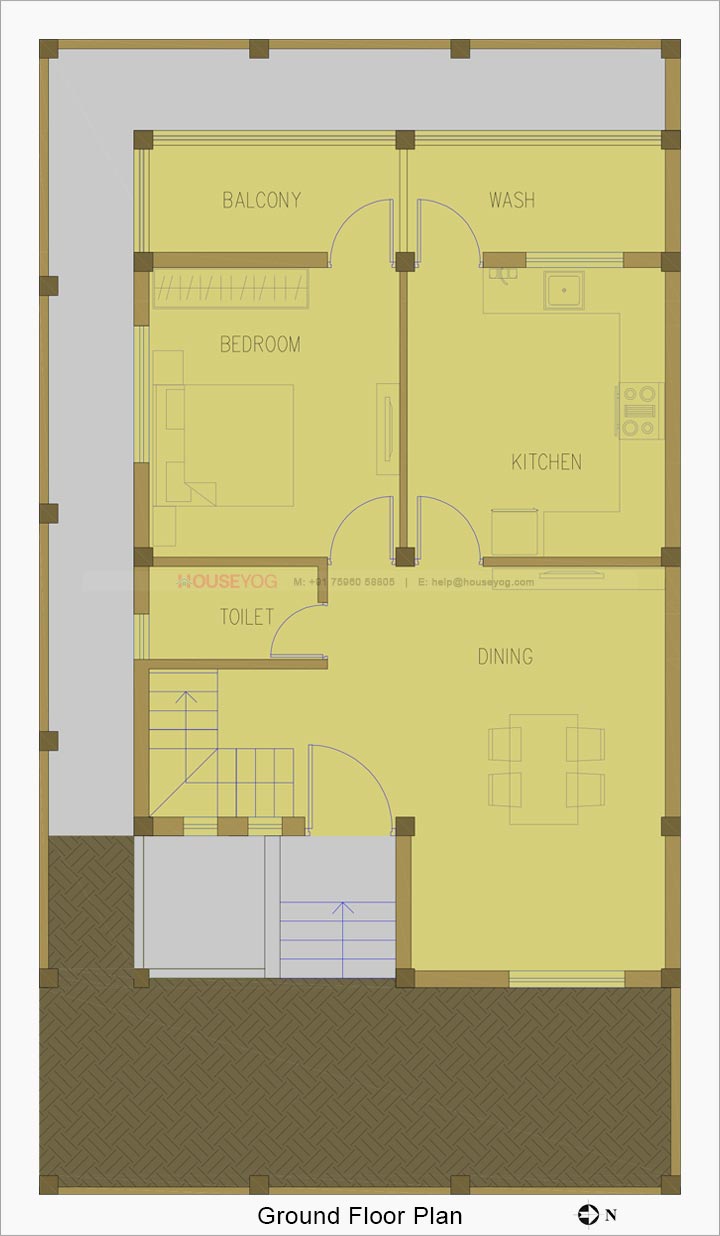

Ground floor plan
Ground floor plan

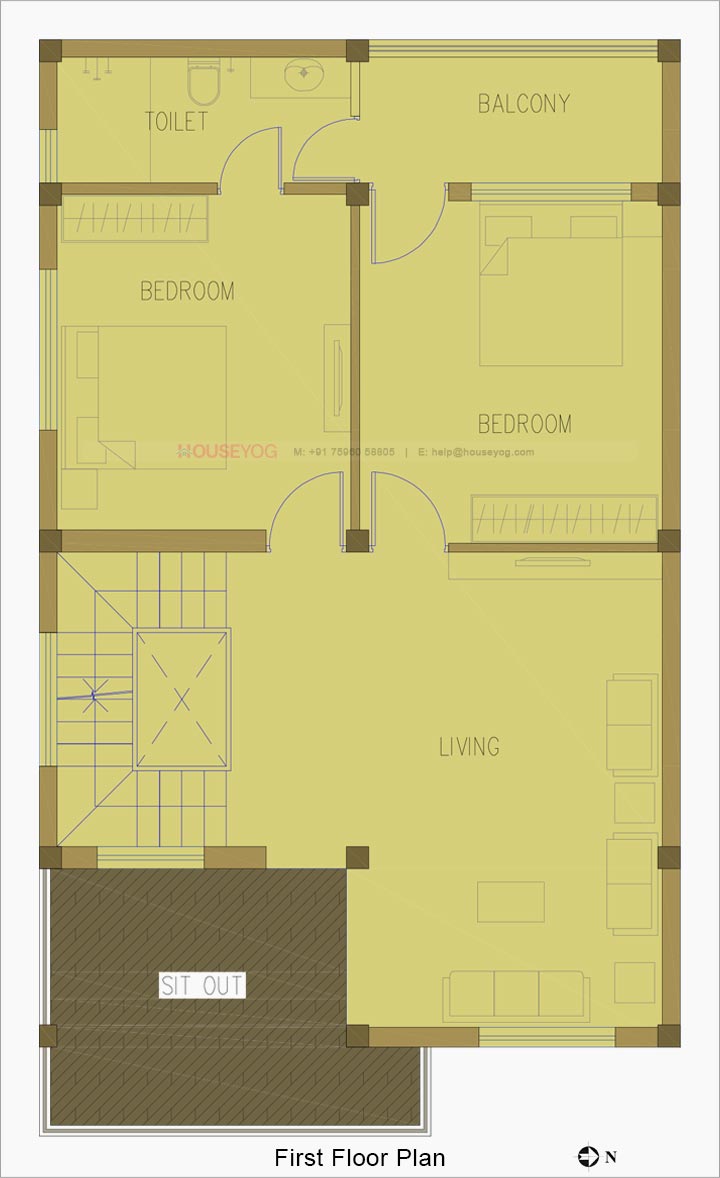

First floor plan
First floor plan
House Elevation
House Elevation

Design style: Budget, Indian, Modern, Simple

Last updated on: 01 Mar 2021

What's included in complete plan set?

  • Space optimized floor plan with measurements
  • High definition 3D front elevation design
  • Structural and Working drawings
  • Drainage and plumbing blue print
  • Electrical and circuit drawings

Get this house plan and design customized for you!

Design Code: HP1037

This house plan and design can be fully customized to meet your plot size and functional requirements. If you liked this plan and need cosmetic changes, then please tell us about your desired changes and we’ll help you get it right at surprisingly affordable rates.

Call us on 75960 58808 and talk to our experts now.

Modify This Plan

Buy This Plan and Start Building

All house design plans and packages includes free customization and changes.

Order this plan now, and get it modified without paying any customization charges.

Basic: Plan and Elevation Design

11600

House plan drawing
Building elevation design
--
--
--
--
--
--

Most Popular

Complete: Plan, Elevation and Drawings

20700

House plan drawing
Building elevation design
Structural drawing
Working drawing
--
--
--
--

Full Set: Plan, Elevation and complete drawings

28300

House plan drawing
Building elevation design
Structural drawing
Working drawing
Drainage drawing
Electrical drawing
Plumbing drawing
--
