House plan design

5 Bedroom Modern House Design - HP1016

Key Features of This Plan

  • Layout
    40 x 70 sq ft

  • Plot size
    2800 sq ft

  • Build area
    2823.09 sq ft

  • Facing
    East

  • Floors
    2

  • Bedrooms
    5

  • Bathrooms
    6

  • Car Parking
    No

  • Open Terrace
    No

  • Lift
    No

  • Approx build cost
    3387708

Plan Description

Here's a super luxurious modern house design for a 2800 sq ft plot area – east facing, 5 bedrooms, 6 bathrooms with half covered car parking and open terrace with potted planters for a luxurious and comfortable living. This bungalow style modern house design from houseyog offers the best amenities and features for a mid size family to live together.

The floor pan of this 5 bedroom duplex house has been designed to offer spacious and comfortable living. The house is designed for a plot area of approx 2800 sq ft (approx plot layout 40X70 sq ft). The combined built up area of this two floor house is approx 2823 sq ft.

The ground floor of this house design has a built up area of approx 1441.80 sq ft which has been designed to accommodate two bedrooms with attached bathrooms, and a third common bathroom. There is a large open kitchen with L shaped kitchen countertop, and adjacent to the kitchen is a separate dining area, which is also spacious.

The drawing room on the ground floor has been designed separately where the family can host their friends and guests. The drawing room has been designed to provide an L shaped sitting area to accommodate 6-7 people on one side, and there is space to place another 3 seater sofa. The entertainment unit in the drawing rooms strategically separates this space from the dining area and rest of the house.

Apart from these luxurious features, the ground floor also offers a separate pooja room or the temple room, utility space (which can be used as a wash area) and a small store room.

The first floor of this luxurious 5 bedroom house design has a built up area of approx 1381 sq ft. There are three bedrooms, with three attached bathrooms on the first floor. We have also provided a sitting/drawing area and one store room.

The highlight of this amazing bungalow style house design is an open terrace with a landscaped garden. This space can be used to host your friends, family and guests on special occasions as well as to just enjoy the fresh and beautiful air outside.

The elevation design of this beautiful 5 bedroom house is just beautiful. For the front elevation design of this house, we have used wooden colored tiles, and for other sides of exterior elevation, we have used beautiful wall weather proof paints.

If you are planning to construct a bungalow style, 5 bedroom dream home on a plot of approx 2800 sq ft, then this modern house design may be the perfect one to consider. If you liked this house plan, floor and elevation design and want to make some small customization here and there to suit your needs, then our expert architects and 3D designers can customize this design to meet your requirements.

Plan Specification

Ground floor built up area approx: 1441 sqft. Designed to offer separate storage room, pooja room and utility space that can be used as per need.

  • Bedroom
    2

  • Hall
    Yes

  • Kitchen
    1

  • Attached Bathroom
    2

  • Common Bathroom
    1

  • Study
    No

  • Temple
    Yes

  • Utility space
    Yes

  • Swimming pool
    No

  • Garden
    No

  • Car Parking
    Yes

First floor built up area approx 1381 sq ft. Feature open terrace with landscaped garden and sit-out area

  • Bedroom
    3

  • Hall
    Yes

  • Attached Bathroom
    3

  • Study
    No

  • Temple
    No

  • Balcony
    1

  • Utility space
    No

  • Swimming pool
    No

  • Garden
    Yes

  • Car Parking
    No

House Plan and Elevation Images

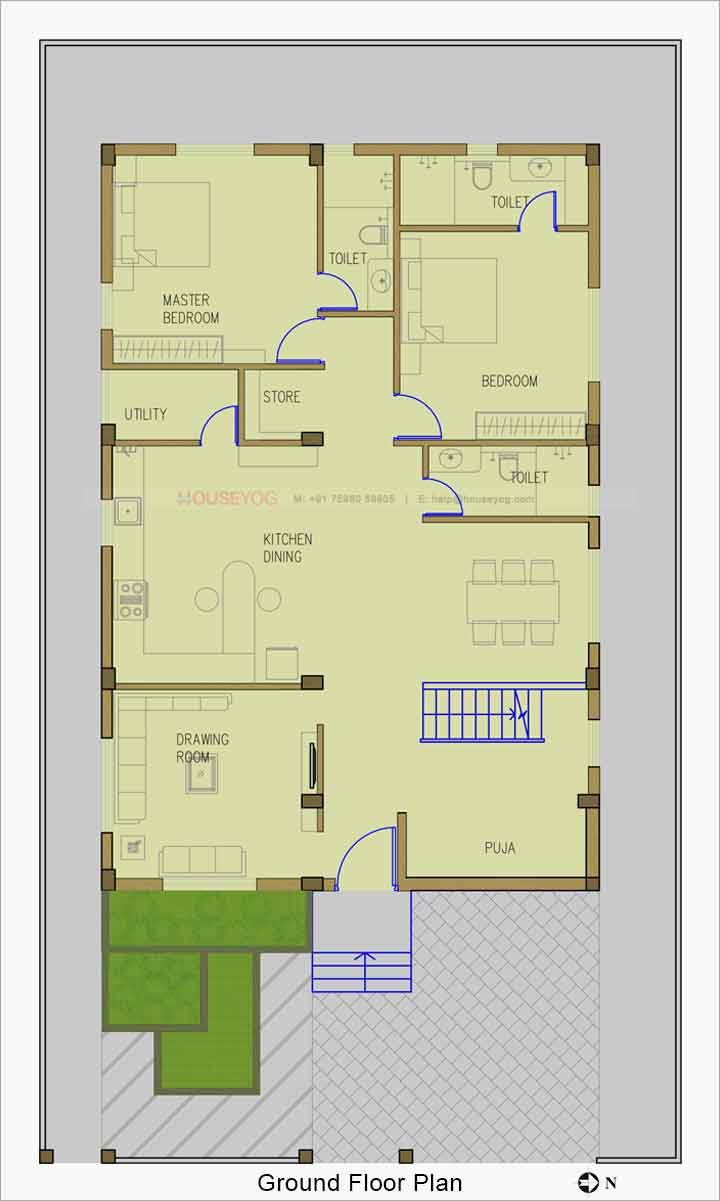

Ground floor plan
Ground floor plan

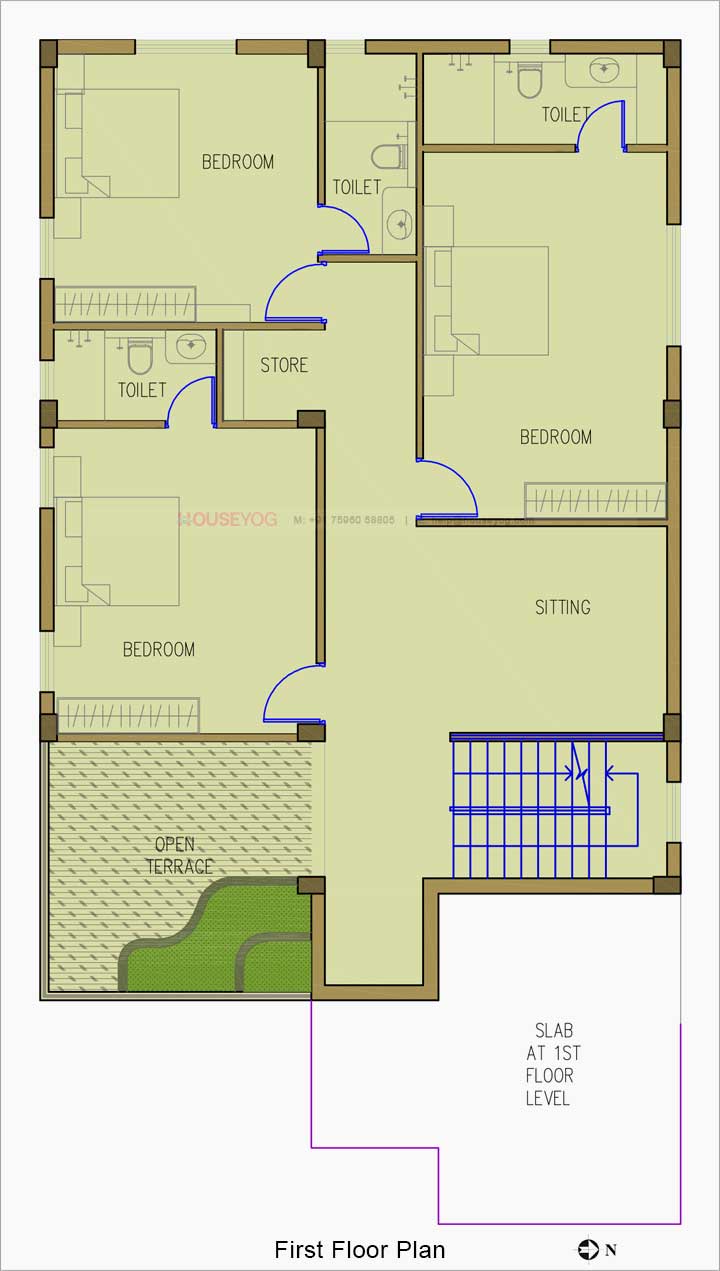

First floor plan
First floor plan

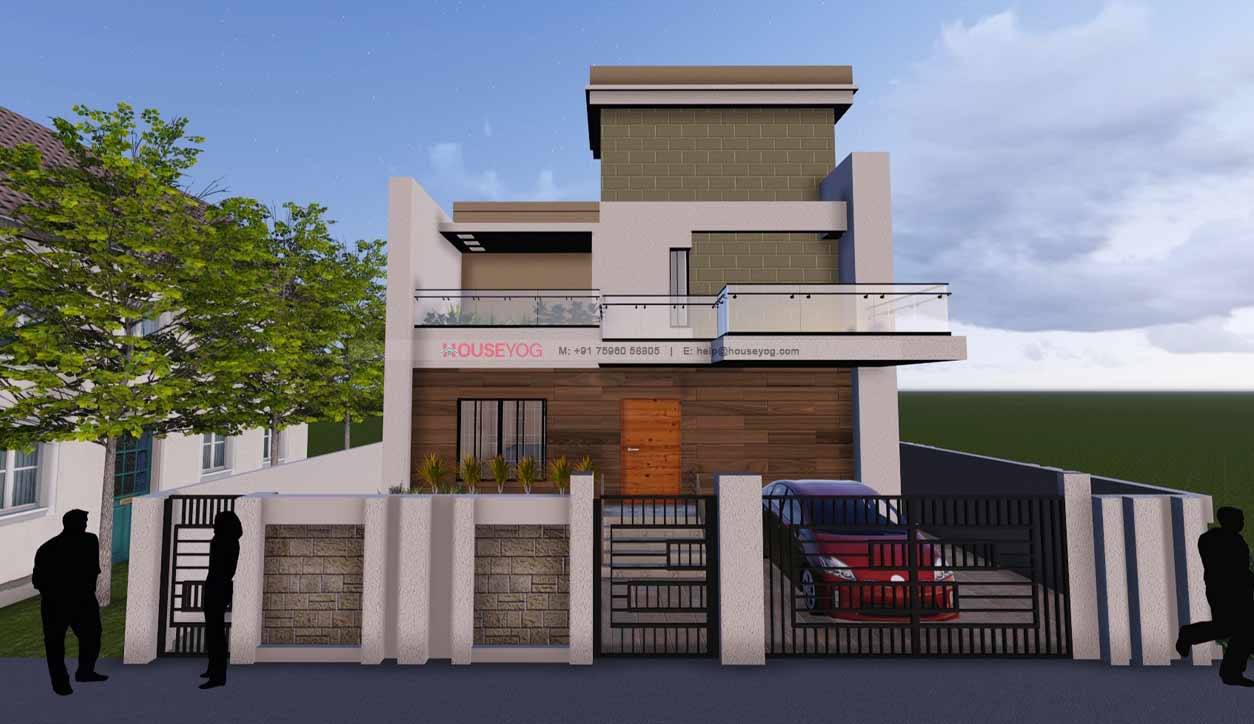

House Elevation - Front View
House Elevation - Front View

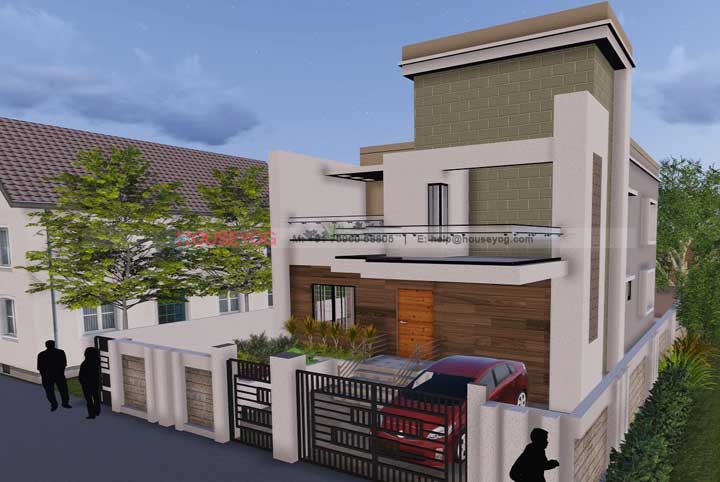

House Elevation - Side View
House Elevation - Side View

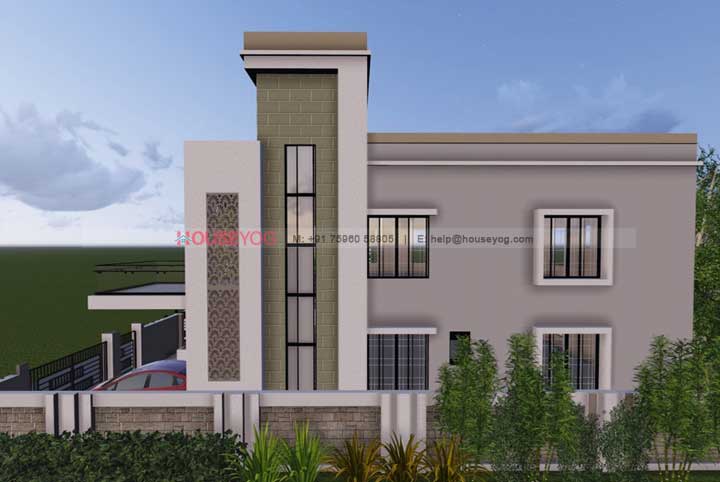

House Elevation - Rear View
House Elevation - Rear View

Design style: Bungalow, Duplex, Luxury, Modern

Last updated on: 21 Dec 2020

What's included in complete plan set?

  • Space optimized floor plan with measurements
  • High definition 3D front elevation design
  • Structural and Working drawings
  • Drainage and plumbing blue print
  • Electrical and circuit drawings

Get this house plan and design customized for you!

Design Code: HP1016

This house plan and design can be fully customized to meet your plot size and functional requirements. If you liked this plan and need cosmetic changes, then please tell us about your desired changes and we’ll help you get it right at surprisingly affordable rates.

Call us on 75960 58808 and talk to our experts now.

Modify This Plan

Buy This Plan and Start Building

All house design plans and packages includes free customization and changes.

Order this plan now, and get it modified without paying any customization charges.

Basic: Plan and Elevation Design

17200

House plan drawing
Building elevation design
--
--
--
--
--
--

Most Popular

Complete: Plan, Elevation and Drawings

31900

House plan drawing
Building elevation design
Structural drawing
Working drawing
--
--
--
--

Full Set: Plan, Elevation and complete drawings

45100

House plan drawing
Building elevation design
Structural drawing
Working drawing
Drainage drawing
Electrical drawing
Plumbing drawing
--

Similar House Plans That You'll Love

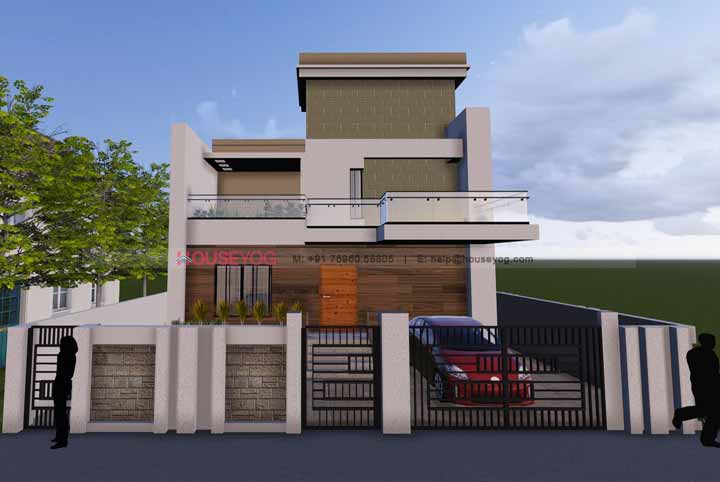

5 Bedroom Modern House Design
