Luxurious 5 Bedroom House Plan Design - HP1004

Key Features of This Plan

  • Layout
    41 x 61.6 sq ft

  • Plot size
    2525.6 sq ft

  • Build area
    2318.17 sq ft

  • Facing
    East

  • Floors
    2

  • Bedrooms
    5

  • Bathrooms
    5

  • Car Parking
    Yes

  • Open Terrace
    No

  • Lift
    No

  • Approx build cost
    2781804

Plan Description

This super luxurious duplex house design offers luxury and ambience. The house design can be built on a plot area of approx 2500 square feet, with approx plot area of 41 by 61 square feet. This north facing 5 BHK house design has the total build up area of approx 2318.17 square feet, out of which the ground floor build area is 1172.73 sq ft and first floor build area is approx 1145.44 sq ft. There is a covered car parking space at the ground floor, and there is an open terrace of approx size 184.99 sq ft on the first floor. The design is Vastu friendly, spacious from inside, looks luxurious from outside and it offers plenty of lighting and proper ventilation to bring positivity and good vibes inside the house.

Plan Specification

Among other utility spaces, this house design offers wash area and store room

  • Bedroom
    2

  • Hall
    Yes

  • Kitchen
    1

  • Attached Bathroom
    1

  • Common Bathroom
    1

  • Study
    No

  • Temple
    No

  • Utility space
    Yes

  • Swimming pool
    No

  • Garden
    Yes

  • Car Parking
    Yes

Offers huge space for temple, which can be used as study area as well.

  • Bedroom
    3

  • Hall
    Yes

  • Attached Bathroom
    2

  • Common Bathroom
    1

  • Study
    No

  • Temple
    Yes

  • Balcony
    1

  • Utility space
    Yes

  • Swimming pool
    No

  • Garden
    No

  • Car Parking
    No

House Plan and Elevation Images

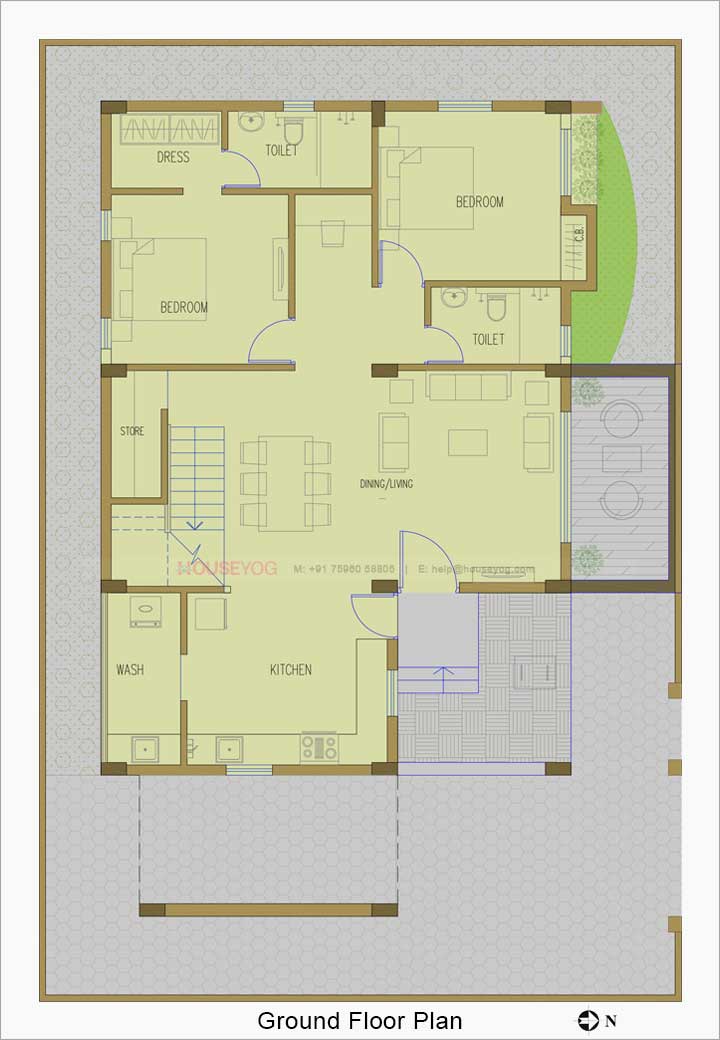

Ground floor plan
Ground floor plan

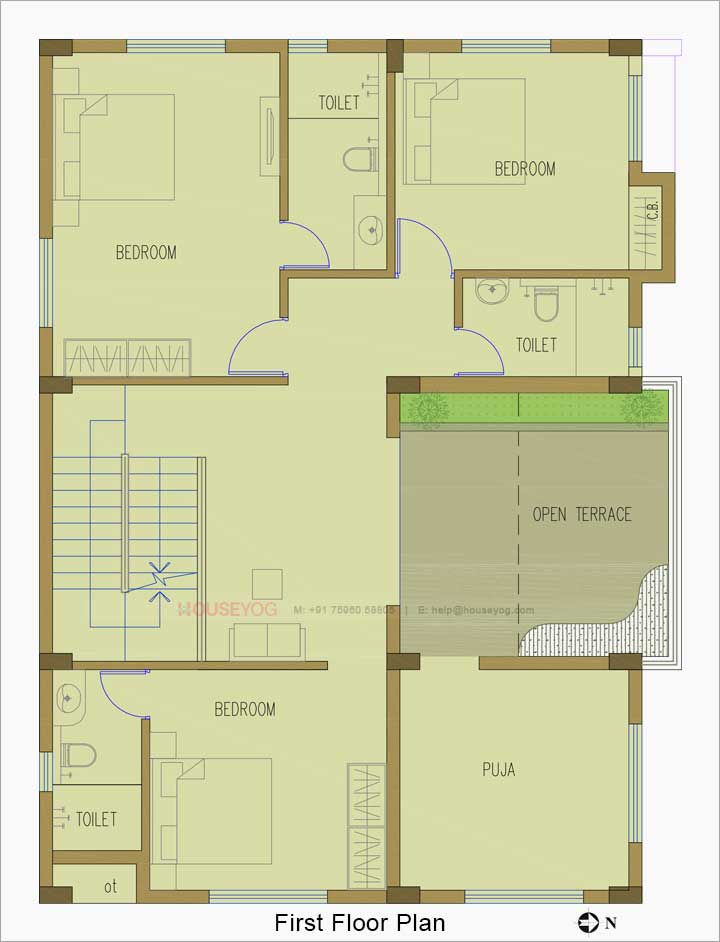

First floor plan
First floor plan

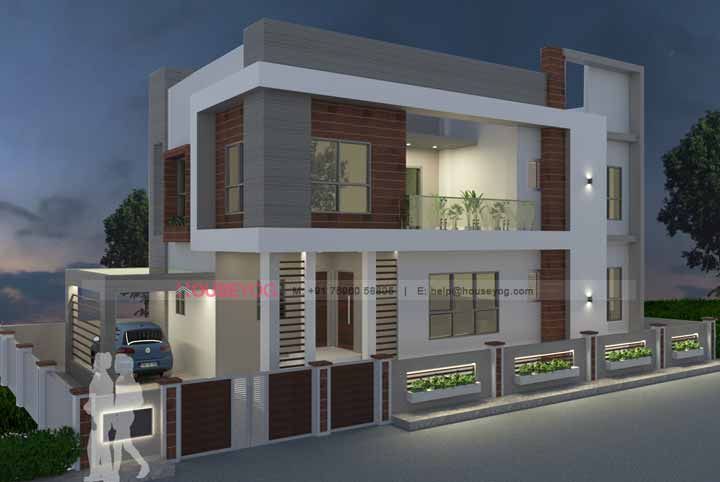

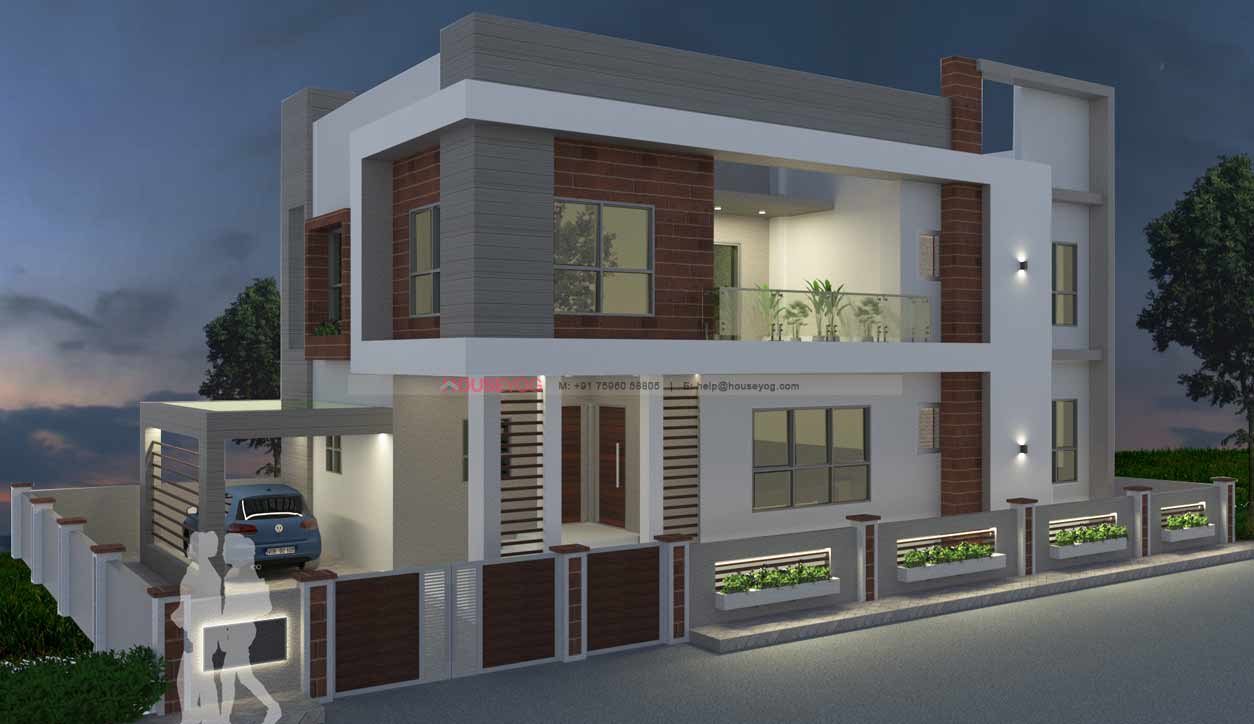

House Elevation
House Elevation

Design style: Bungalow, Contemporary, Duplex, Indian, Luxury, Modern

Last updated on: 22 Dec 2020
