5 Bedroom House Design With Front Elevation - HP1018

Key Features of This Plan

  • Layout
    50.9 x 52.9 sq ft

  • Plot size
    2692.6 sq ft

  • Build area
    2867.91 sq ft

  • Facing
    North

  • Floors
    2

  • Bedrooms
    5

  • Bathrooms
    5

  • Car Parking
    Yes

  • Open Terrace
    No

  • Lift
    No

  • Approx build cost
    3441492

Plan Description

Here's a super comfortable 5 bedroom duplex house design with modern front elevation. This 5 BHK bungalow style duplex house design from houseyog offers plenty of open space at the front and open terrace with potted planters at the first floor.

This super luxurious house design offers spacious and comfortable living. The house has been designed for a plot layout of approx 50.9x52.9 sq ft (approx 2,677 square feet plot size). The two storey house design has a built up area of approx 2867.91 sq ft and features 5 bedrooms, 5 bathrooms, car parking space for two cars and an open terrace.

The ground floor of the house has a built up area of approx 1433.95 sq ft. The main entry of the house on the ground floor leads you to a grand living and dining room. Next is a good sized kitchen with space to place two kitchen countertops. Adjacent to the kitchen, we have provided a midsized store room and a wash area. Then there is a master bedroom with an attached bathroom and dressing room. Next, there is another bedroom and a common toilet and a staircase that leads you to the first floor.

The first floor of the house in house design has a built up area of 1433.95 sq ft. Once you are on the first floor of the house, you enter a grand living hall. On the first floor in this house pan, we have provided three bedrooms, with attached bathrooms and dressing rooms.

The first floor of the house features a pooja room (temple) and then there is a grand open terrace with potted planters, which is accessible from the living area. While the terrace allows some extra space to host your friend, family and guests, it also allows natural lights and ventilations through doors and windows.

The front elevation design of this bungalow style house has been designed to offer a super luxurious exterior look. We have used wall tiles for front exterior finish, because it may be a one time investment, but it is quite easy to maintain. The exterior tiles can easily be replaced with weather proof exterior wall paint.

If you were planning to build a grand bungalow style duplex house for your family, then this 5 bedroom house design may be the one you should closely look at.

If you liked this 5 bedroom two floor house design, but want some cosmetic changes, then you can use houseyog house plan customization to get this plan customized to perfection to meet your requirements.

Plan Specification

Ground floor built up area approx 1433.95 sqft. Separte utility spaces e.g. store rooms and wash area, open car parking space for two cars, open space in the front can be landscaped.

  • Bedroom
    2

  • Hall
    Yes

  • Kitchen
    1

  • Attached Bathroom
    1

  • Common Bathroom
    1

  • Study
    No

  • Temple
    No

  • Utility space
    Yes

  • Swimming pool
    No

  • Garden
    Yes

  • Car Parking
    Yes

First floor built up area approx: 1433.95 sq ft. Features grand size living area and a pooja rom. There are three grand size bedrooms, with attached bathrooms and dresser on the first floor of this house design. Large size open terrace with potted planter

  • Bedroom
    3

  • Hall
    Yes

  • Attached Bathroom
    3

  • Study
    No

  • Temple
    Yes

  • Balcony
    1

  • Utility space
    No

  • Swimming pool
    No

  • Garden
    Yes

  • Car Parking
    No

House Plan and Elevation Images

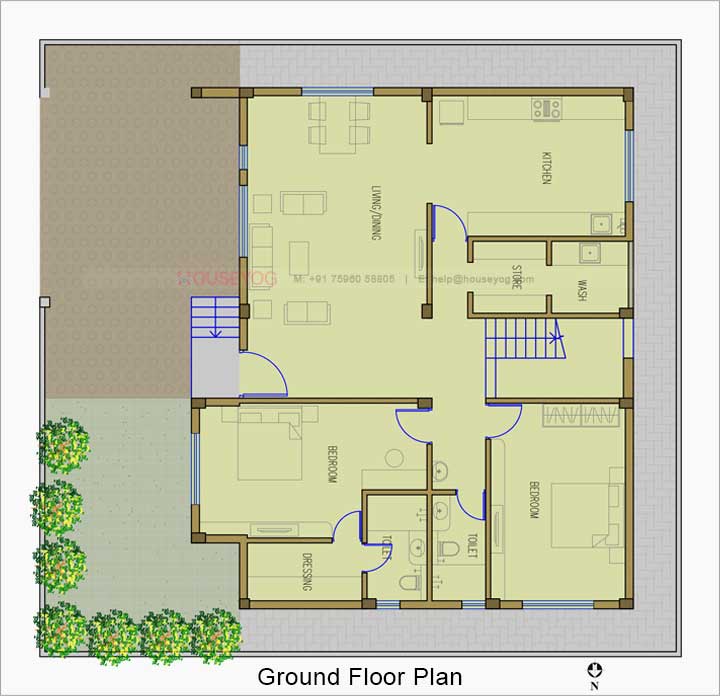

Ground floor plan
Ground floor plan

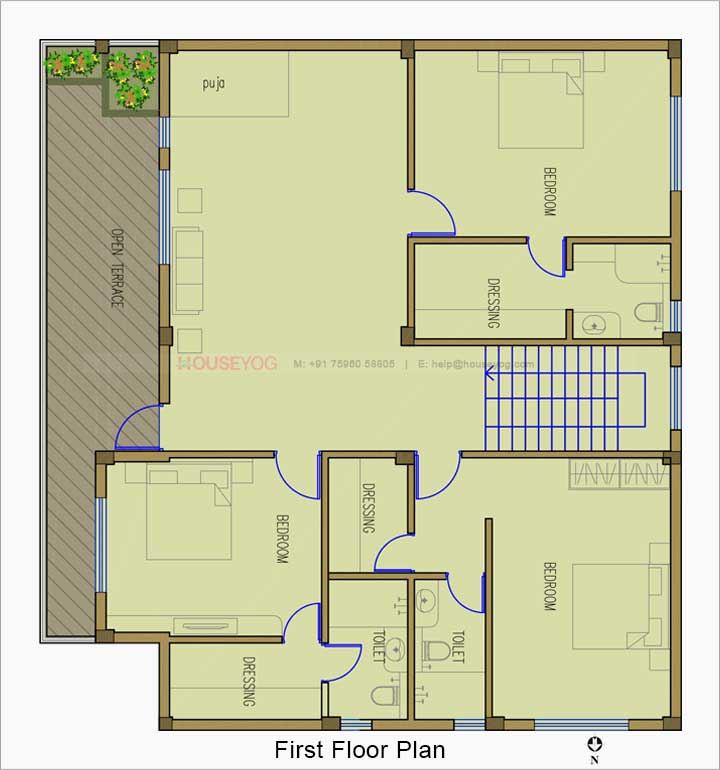

First floor plan
First floor plan

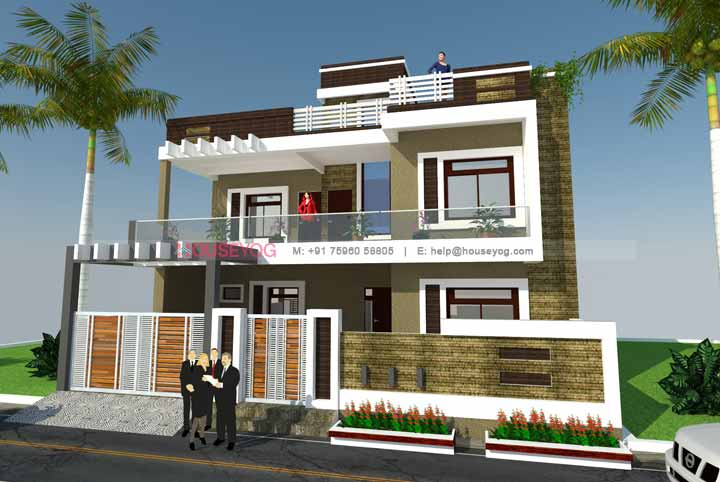

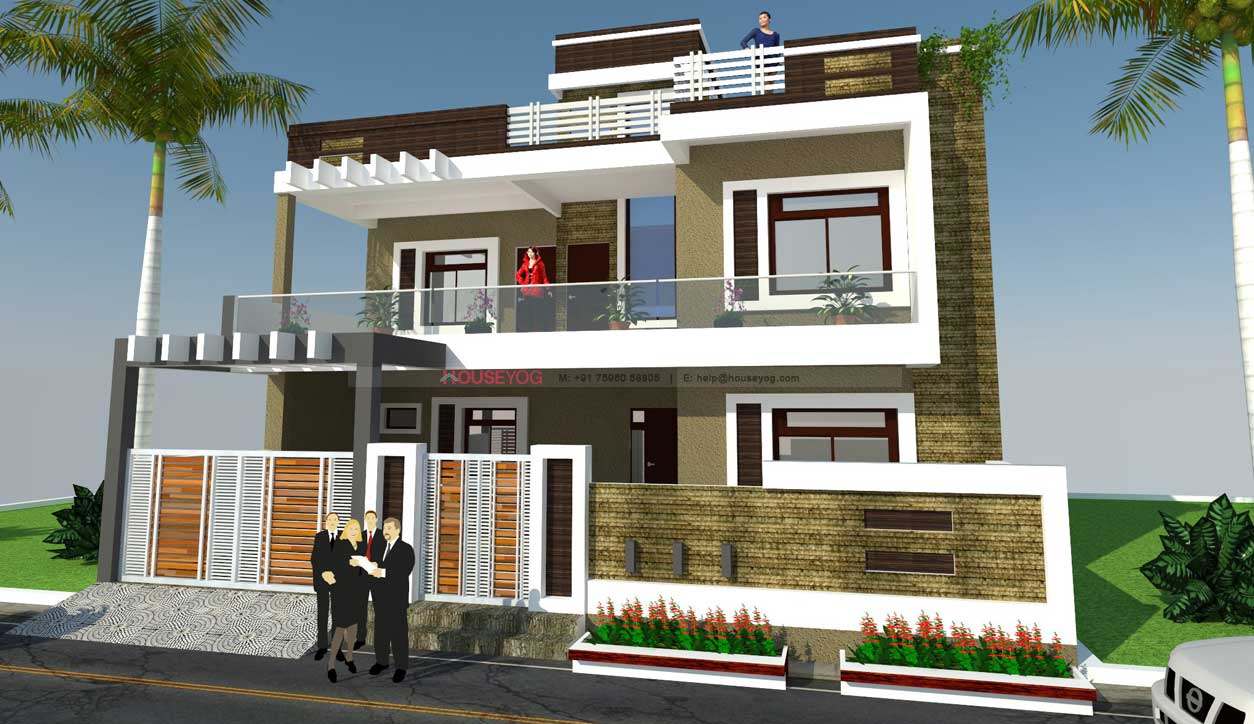

House Elevation
House Elevation

Design style: Budget, Bungalow, Duplex, Indian, Luxury, Modern

Last updated on: 30 Dec 2020

What's included in complete plan set?

Download a sample plan set

  • Space optimized floor plan with measurements
  • High definition 3D front elevation design
  • Structural and Working drawings
  • Drainage and plumbing blue print
  • Electrical and circuit drawings

This plan design can be customized!

This house plan design can be customized to meet your requirements. If you liked this plan and need cosmetic changes, then please tell us about your desired changes and we’ll help you get it right. Click the button to tell us your customization needs, or call 75960 58808.

Modify This Plan

Buy This Plan and Start Building

All house design plans and packages includes free customization and changes.

Order this plan now, and get it modified without paying any customization charges.

Basic: Plan and Elevation Design

16770.4

House plan drawing
Building elevation design
--
--
--
--
--
--

Most Popular

Complete: Plan, Elevation and Drawings

31040.8

House plan drawing
Building elevation design
Structural drawing
Working drawing
--
--
--
--

Full Set: Plan, Elevation and complete drawings

43811.2

House plan drawing
Building elevation design
Structural drawing
Working drawing
Drainage drawing
Electrical drawing
Plumbing drawing
--
