Layout
45 x 57 sq ft
Plot size
2565 sq ft
Build area
7600 sq ft
Facing
North
Floors
3
Bedrooms
6
Bathrooms
7
Car Parking
Yes
Open Terrace
No
Lift
No
Approx build cost
9120000
This elegant three-storey house design in Kolkata (South) sits on a 45x57 north-facing plot and has been designed to deliver premium family living with modern architectural aesthetics. The ground floor is planned as a full parking zone with a lift and staircase core, along with a compact sitting room and attached bathroom—perfect for meetings, visitors, or a small home office setup.
The first and second floors together form a luxurious duplex residence. The first floor features a spacious master bedroom suite (16x11 ft) with an attached bath and walk-in closet, an additional bedroom (16x12 ft), a well-appointed open kitchen (11x9.9 ft), a store room (12x4 ft), a large puja room (12x10 ft), and an expansive drawing room (26x12 ft) ideal for hosting guests. The layout also includes one common and one attached bathroom for daily comfort.
The second floor includes four well-designed bedrooms (three with attached bathrooms), a centrally located living room, and two balconies—one wide balcony at the front and another at the rear, offering excellent airflow and natural light. This layout is perfect for a large family seeking comfort, space, and privacy.
Designed with a modern luxury elevation, the home features clean geometry, stone textures, glass balconies, vertical fins, warm wooden highlights, and green planter elements—making it an eye-catching residential property in South Kolkata.
This project reflects high-quality residential architecture and is ideal for homeowners looking for a premium duplex house design, LBS Kolkata, or a bespoke home crafted by experienced architects.
The contemporary elevation features clean horizontal lines, stone-textured cladding, wood-finish panelling, recessed lighting, modern glass railings, and deep balconies with integrated green planters. The sleek façade gives the home a premium urban look, making it one of the finest modern house designs in Kolkata.

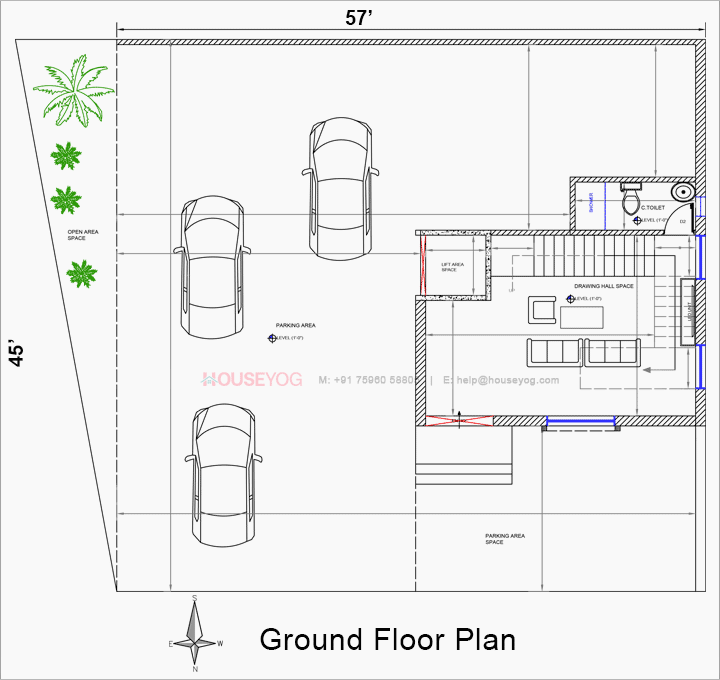

Ground Floor plan features and amenities
A spacious ground floor designed primarily for parking, with lift access and a compact office/sitting room with attached bathroom.
Bedroom
1
Hall
Yes
Attached Bathroom
1
Study
No
Temple
No
Utility space
Yes
Swimming pool
No
Garden
Yes
Car Parking
Yes

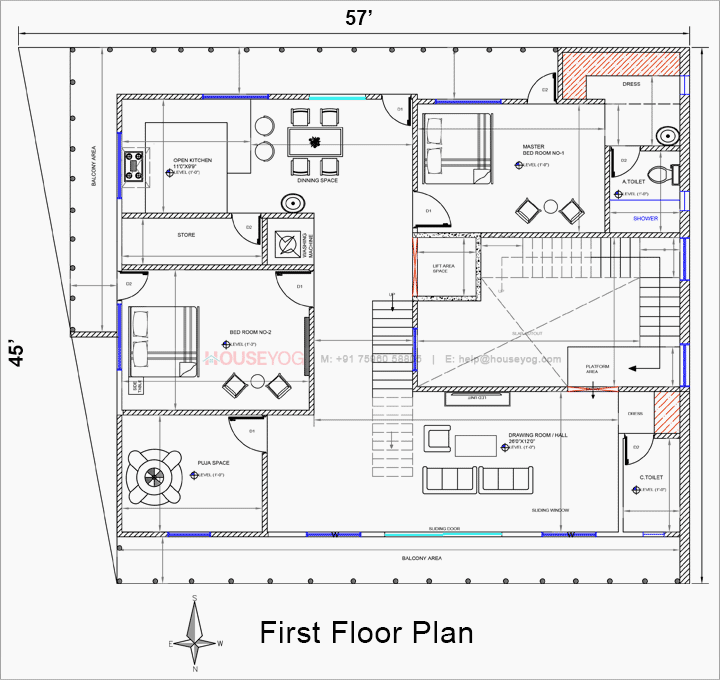

First Floor plan features and amenities
A luxurious family level with a master suite, second bedroom, open kitchen, store room, large puja room, and a 26-ft drawing hall.
Bedroom
2
Hall
Yes
Kitchen
1
Attached Bathroom
1
Common Bathroom
1
Study
No
Temple
Yes
Balcony
1
Utility space
Yes
Swimming pool
No
Garden
No
Car Parking
No

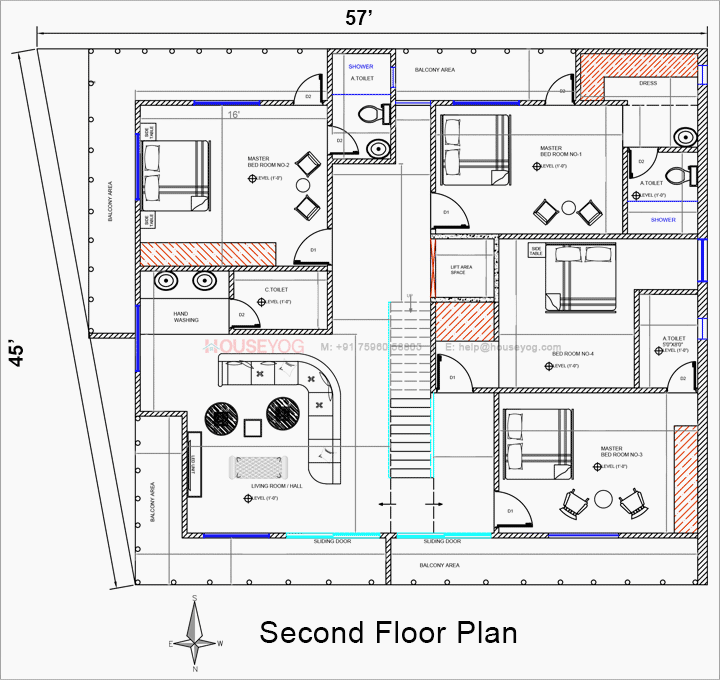

Second Floor plan features and amenities
A private family level featuring four bedrooms (three attached), a living room, and dual balconies for excellent ventilation.
Bedroom
4
Hall
Yes
Attached Bathroom
3
Common Bathroom
1
Study
No
Temple
No
Balcony
1
Utility space
Yes
Swimming pool
No
Garden
No
Car Parking
No
Design style: Duplex, Farmhouse, Indian, Luxury, Modern
Last updated on: 19 Nov 2025
Design Code: HP1087
This house plan and design can be fully customized to meet your plot size and functional requirements. If you liked this plan and need cosmetic changes, then please tell us about your desired changes and we’ll help you get it right at surprisingly affordable rates.
Call us on 75960 58808 and talk to our experts now.
All house design plans and packages includes free customization and changes.
Order this plan now, and get it modified without paying any customization charges.
