40x60 House Plan – 4 Bhk East Facing Duplex House Design With Open Terrace - HP1040

Key Features of This Plan

  • Layout
    40 x 60 sq ft

  • Plot size
    2400 sq ft

  • Build area
    2595 sq ft

  • Facing
    East

  • Floors
    2

  • Bedrooms
    4

  • Bathrooms
    4

  • Car Parking
    Yes

  • Open Terrace
    No

  • Lift
    No

  • Approx build cost
    3114000

Plan Description

Here's a super luxurious and spacious 40X60 house plan – 4 Bedroom, 4 Bathroom, East facing duplex house plan for 2400 sq ft plot.

This super luxurious duplex house has been designed for one of our clients in Moga, Punjab. The two storey house features 4 Bedrooms, 4 bathrooms (two bedrooms/bathrooms on each floor), a very spacious hall and living area, a grand size kitchen and a store room. The total build area of this duplex house is approx 2595 sq ft.

On the ground floor, the total build up area is approx 1596 sq ft (including car parking) we have provided a king size, super spacious living room, dining hall and two bedrooms, and two bathrooms. One of the bathrooms is attached to the master bedroom, and there's one common bathroom. Adjacent to the living area is a kitchen and a separate store room. We have also provided a big size car parking space that can be used to park any 4 wheeler and bike etc.

The first floor has a total built-up area of approx 996 sq ft, excluding the open terrace of approx 355 sq ft. We have provided two bedrooms on the first floor, one attached bathroom and one common bathroom. There is a closed verandah or the hall as well as an open terrace that can be decorated with potted planters.

For the building elevation design, we have designed it with simplicity in mind and the elevation of this duplex house looks super modern and elegant. We have kept provisions for three entrances to the main campus of the building. There is one big gate that leads to the parking area, behind that we have a small gate for bikes or other such vehicles and then there is a gate for owners entry.

We have used off-white, grey and brown color to an elegant look to the exterior elevation design of this duplex house. For the exterior walls of the building and the boundary walls, there is provision for both exterior wall paints as well as wall tiles as per taste and budget of the client.

If you are looking for a beautiful modern 40 by 60 sq ft house plan and elevation design, and you are looking for a luxurious as well as spacious feel, then this house pan can be the best match for you. And the best part is that this house 40x60 house plan design can be customized to fit your needs and space requirements.

Want to design a beautiful house like this for your 40x60 sq ft plot? Call us on 7596058808 now and talk to an expert to get the best price and offers.

Plan Specification

Ground floor built up area approx: 1596 sq ft. Features 2 bedrooms, 2 bathrooms, kitchen, store/utility room, living hall, dining area and car parking.

  • Bedroom
    2

  • Hall
    Yes

  • Kitchen
    1

  • Attached Bathroom
    1

  • Common Bathroom
    1

  • Study
    No

  • Temple
    No

  • Utility space
    Yes

  • Swimming pool
    No

  • Garden
    No

  • Car Parking
    Yes

First floor built up area approx: 996 sq ft. Features 2 bedrooms, 2 bathrooms, covered Verandah (hall), open terrace with provision for potted planters.

  • Bedroom
    2

  • Hall
    Yes

  • Attached Bathroom
    1

  • Common Bathroom
    1

  • Study
    No

  • Temple
    No

  • Balcony
    1

  • Utility space
    No

  • Swimming pool
    No

  • Garden
    Yes

  • Car Parking
    No

House Plan and Elevation Images

Ground floor plan
Ground floor plan
First floor plan
First floor plan
House Elevation - Front View
House Elevation - Front View

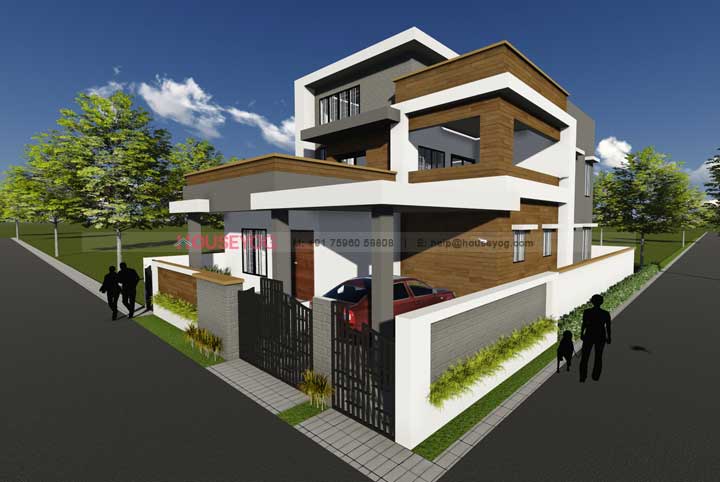

House Elevation - Side View
House Elevation - Side View

Design style: Bungalow, Duplex, Indian, Luxury, Modern

Last updated on: 23 Feb 2021

What's included in complete plan set?

  • Space optimized floor plan with measurements
  • High definition 3D front elevation design
  • Structural and Working drawings
  • Drainage and plumbing blue print
  • Electrical and circuit drawings

Get this house plan and design customized for you!

Design Code: HP1040

This house plan and design can be fully customized to meet your plot size and functional requirements. If you liked this plan and need cosmetic changes, then please tell us about your desired changes and we’ll help you get it right at surprisingly affordable rates.

Call us on 75960 58808 and talk to our experts now.

Modify This Plan

Buy This Plan and Start Building

All house design plans and packages includes free customization and changes.

Order this plan now, and get it modified without paying any customization charges.

Basic: Plan and Elevation Design

15600

House plan drawing
Building elevation design
--
--
--
--
--
--

Most Popular

Complete: Plan, Elevation and Drawings

28700

House plan drawing
Building elevation design
Structural drawing
Working drawing
--
--
--
--

Full Set: Plan, Elevation and complete drawings

40300

House plan drawing
Building elevation design
Structural drawing
Working drawing
Drainage drawing
Electrical drawing
Plumbing drawing
--
