51x49 Indian House Design - North Facing Duplex Plan And Elevation - HP1028

Key Features of This Plan

  • Layout
    51 x 49 sq ft

  • Plot size
    2499 sq ft

  • Build area
    2204 sq ft

  • Facing
    North

  • Floors
    2

  • Bedrooms
    4

  • Bathrooms
    4

  • Car Parking
    Yes

  • Open Terrace
    No

  • Lift
    No

  • Approx build cost
    2644800

Plan Description

The super comfortable, modern and luxurious, 4 bedroom, duplex Indian house design with car parking, and deck area on the ground floor and open terrace on the first floor.

This Indian house plan has been designed for a plot size of approx 2499 sq ft, plot layout 51' x49' sq ft. The total built up area of this north facing duplex Indian house is approx 2204 sq ft.

The ground floor of this modern Indian house has a built up area of approx 1239 sq ft. Ground floor features an elevated entry, with an open deck area on the front side. There is a large living area (which can be partitioned if needed), dining area, master bedroom with attached bathroom in the front side, another bedroom with common bathroom, kitchen and separate wash area.

The first floor of this modern Indian house plan has a built up area of approx 964 sq ft. The staircase from the ground leads to the first floor. The first floor features one master bedroom with attached toilet (at the front side), second bedroom with a small balcony, one common toilet and a Puja room (temple). There is an open terrace of approx 240 sq ft where potted plants can be placed to enhance the beauty and sitting arrangements can be made. The open terrace can also be used to place swings (Jhoola), or use this space to enjoy the sunshine.

The front elevation design (front view of the house) looks super rich and modern. We have used modern stone finished tiles on the front exterior walls of this house design. The stone finish tile makes the house design look super rich and modern. The tiles on the front exterior walls can also be replaced with weather proof exterior wall paints to keep the construction costs lower.

This Indian house design with front view is fully customizable, which means that if you have a similar size plot and you have liked this design, but want some changes here and there, then we can get that done for you.

Plan Specification

Ground floor built up area approx: 1239 sq ft, features open deck area, grand size living room, dining area, 2 bedroom, one attached bath, one common bath, kitchen with separate wash area.

  • Bedroom
    2

  • Hall
    Yes

  • Kitchen
    1

  • Attached Bathroom
    1

  • Common Bathroom
    1

  • Study
    No

  • Temple
    No

  • Balcony
    1

  • Utility space
    Yes

  • Swimming pool
    No

  • Garden
    Yes

  • Car Parking
    Yes

Fist floor built up area approx: 964 sq ft, features two bedrooms, two bathrooms, hall, temple room, balcony and open terrace.

  • Bedroom
    2

  • Hall
    Yes

  • Attached Bathroom
    1

  • Common Bathroom
    1

  • Study
    No

  • Temple
    Yes

  • Balcony
    1

  • Utility space
    Yes

  • Swimming pool
    No

  • Garden
    Yes

  • Car Parking
    No

House Plan and Elevation Images

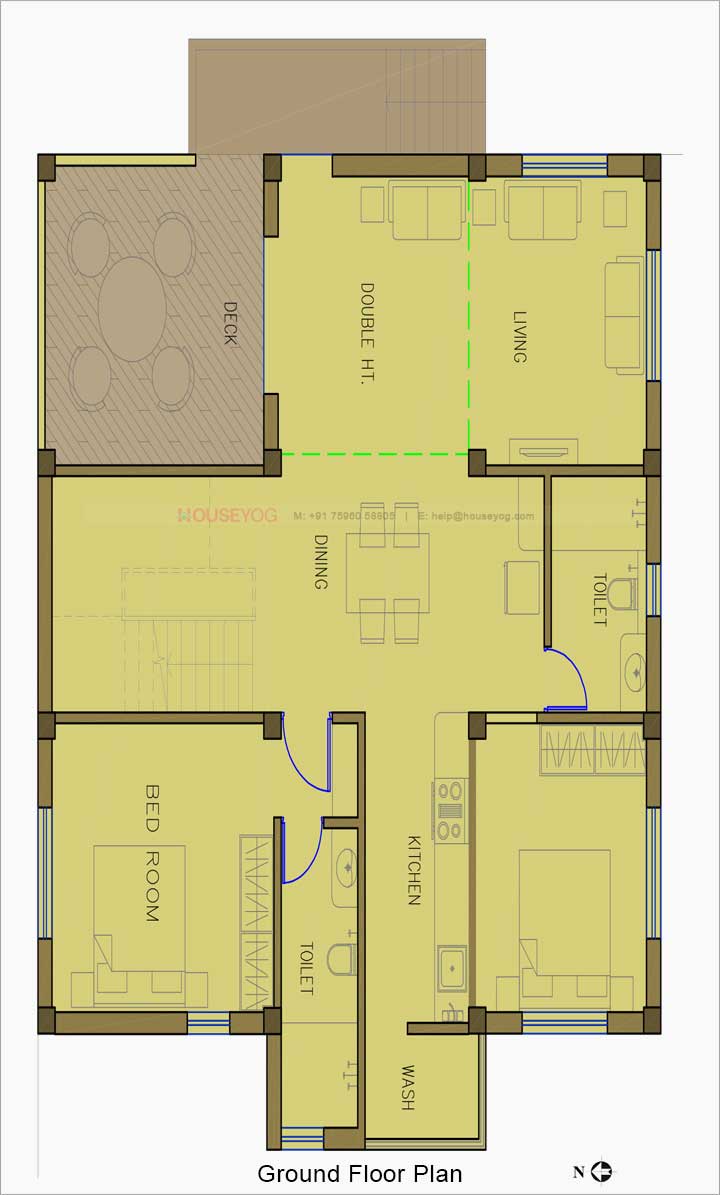

Ground floor plan
Ground floor plan

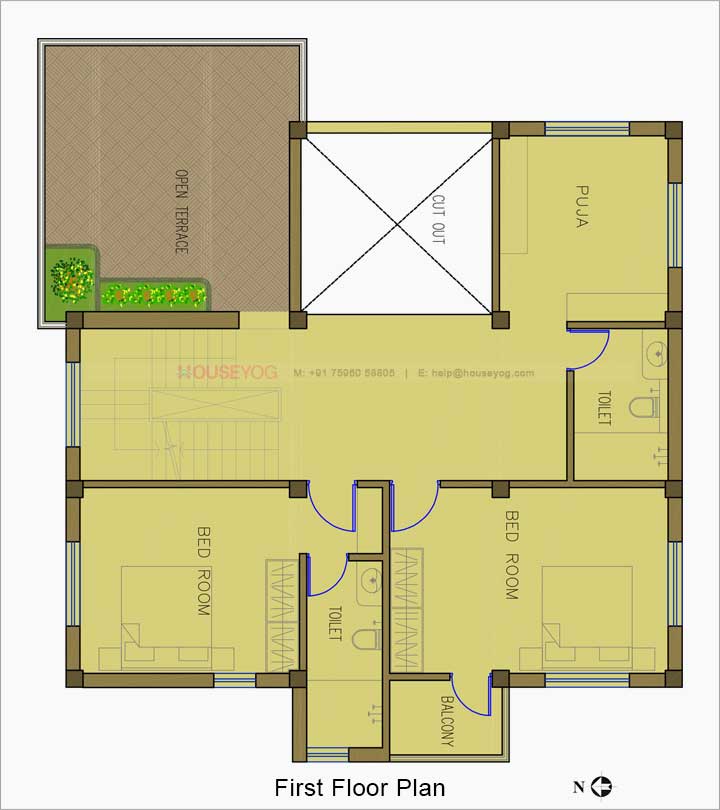

First floor plan
First floor plan

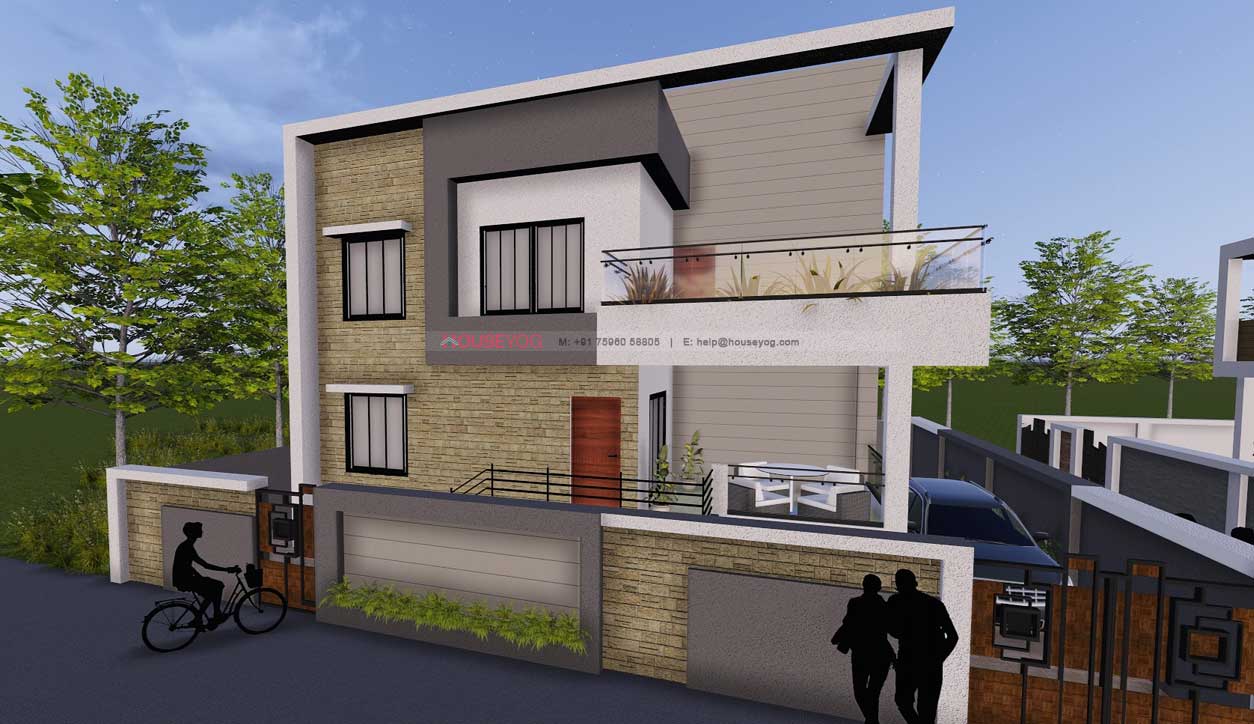

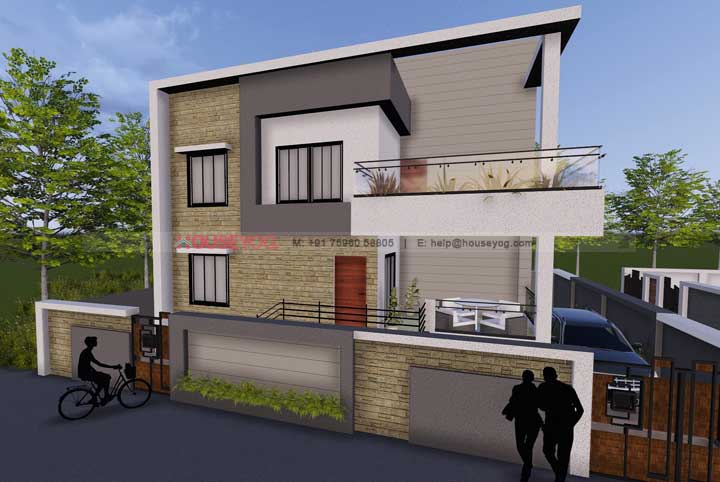

House Elevation - Front View
House Elevation - Front View

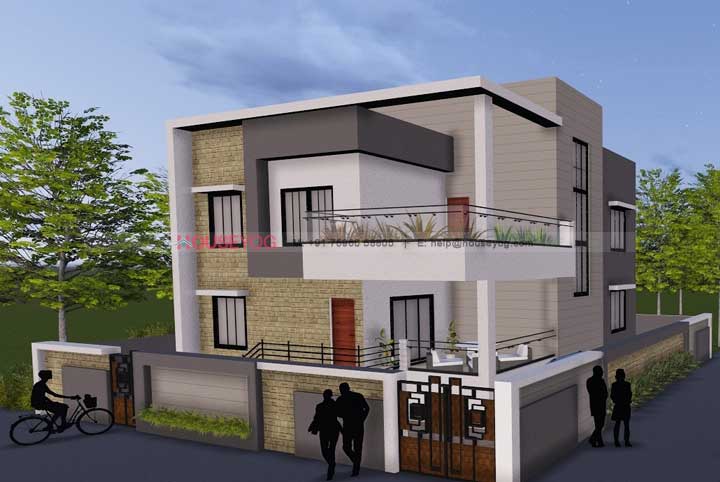

House Elevation - Side View
House Elevation - Side View

Design style: Bungalow, Duplex, Indian, Luxury, Modern, Simple

Last updated on: 27 May 2021

What's included in complete plan set?

Download a sample plan set

  • Space optimized floor plan with measurements
  • High definition 3D front elevation design
  • Structural and Working drawings
  • Drainage and plumbing blue print
  • Electrical and circuit drawings

This plan design can be customized!

This house plan design can be customized to meet your requirements. If you liked this plan and need cosmetic changes, then please tell us about your desired changes and we’ll help you get it right. Click the button to tell us your customization needs, or call 75960 58808.

Modify This Plan

Buy This Plan and Start Building

All house design plans and packages includes free customization and changes.

Order this plan now, and get it modified without paying any customization charges.

Basic: Plan and Elevation Design

14996

House plan drawing
Building elevation design
--
--
--
--
--
--

Most Popular

Complete: Plan, Elevation and Drawings

24995

House plan drawing
Building elevation design
Structural drawing
Working drawing
--
--
--
--

Full Set: Plan, Elevation and complete drawings

32494

House plan drawing
Building elevation design
Structural drawing
Working drawing
Drainage drawing
Electrical drawing
Plumbing drawing
A3 size printed plan set
