Layout
49 x 65.6 sq ft
Plot size
3214.39 sq ft
Build area
2982 sq ft
Facing
South
Floors
2
Bedrooms
4
Bathrooms
4
Car Parking
Yes
Open Terrace
No
Lift
No
Approx build cost
3578400
Here's a 4 bedroom duplex bungalow style house design with front and corner view. This 4 BHK, south facing house has four bedrooms, 4 bathrooms, sitting room, drawing room, dining room, kitchen, one temple, a store room and covered car parking, front open space, ground floor verandah and balcony.
The modern Indian style duplex bungalow has been designed for a plot size of approx 3,209 sq ft. The ground floor has a built up area of approx 1442 sq ft, and the first floor built up size is approx 1539 sq ft. The two storey south facing house has all the amenities and utility space which is desired by an Indian family.
The ground floor of this bungalow has plenty of open space in front and side. There are two entrances, one main gate for the car and another smaller gate for quick entry to the house. The three step staircase leads to the covered verandah and the main door.
The moment you enter the house, there is a small visitor room, and next to it is a spacious living room to host 10-12 people. Next is the dining area and adjacent to it another verandah on the right hand side, and to the left is a common bathroom and a provision for a wash basin near the common bathroom. Next to it, on the right hand side, there is a master bedroom with an attached bathroom, and to the left is a good sized kitchen with access to a separate store room. We have kept a temple room near the kitchen.
A nicely designed staircase inside the dining hall will lead you to the first floor of this beautiful bungalow.
The first floor of the bungalow has been designed for the family, and therefore we have provided a grand size master bedroom with attached bathroom, dressing room and balcony towards the main side of the building. Next is a small hall and next to it is a verandah. There are two other bedrooms and one common bathroom.
We have kept provision for a temple room and a dresser, which can be combined to make a study room or a storage room or this space can be utilized in any other ways.

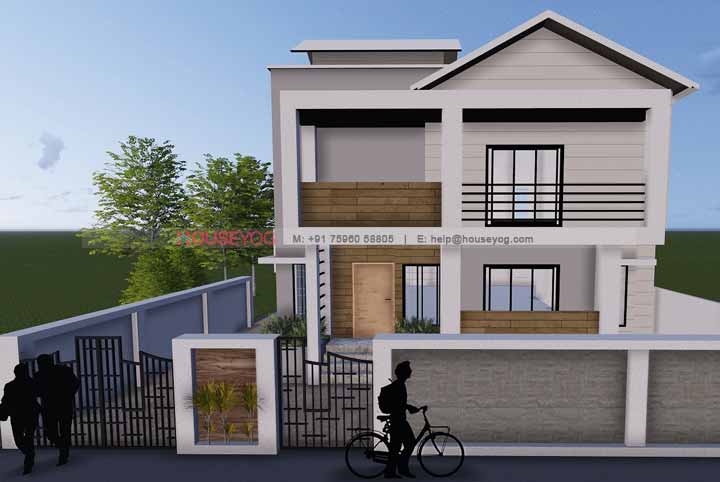

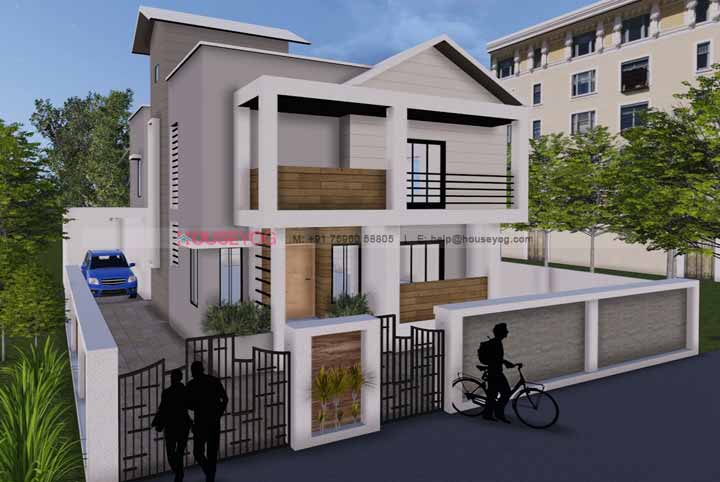

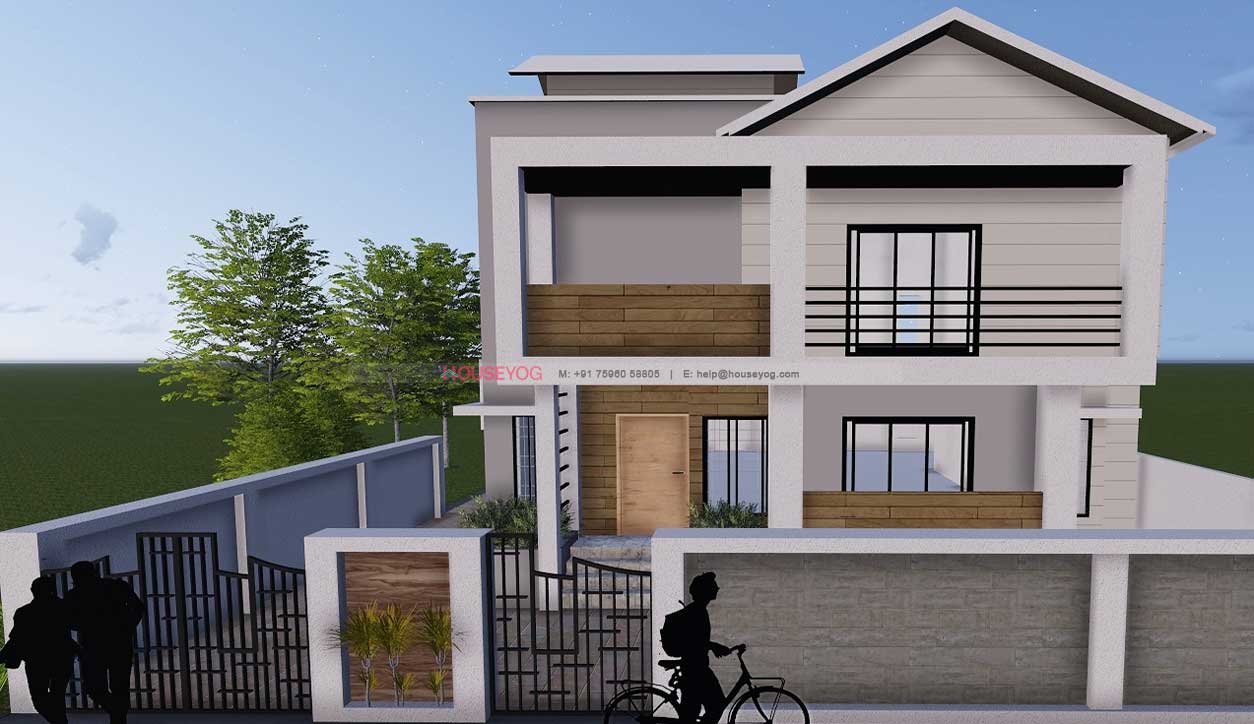

And for the exterior elevation design of this beautiful bungalow, the front design looks modern, Indian and classy. The rooftop of this bungalow has hut style layout which has been highlighted with dark wall color. The front side exterior wall of the house can be finished with wall paints or similar color tiles as well.
The boundary wall of the house has been kept as covered for most part, except the main and smaller gates, as it allows ventilation and lights. We have used tiles on a portion of exterior boundary wall design to give the house a rich and classy look.
If you are planning to construct a 4 bedroom bungalow on a plot size of approx 3000 sq ft, then this modern bungalow design from houseyog is what you need to evaluate closely. This house design is fully customizable to fit your needs i.e. space requirements and construction budget.

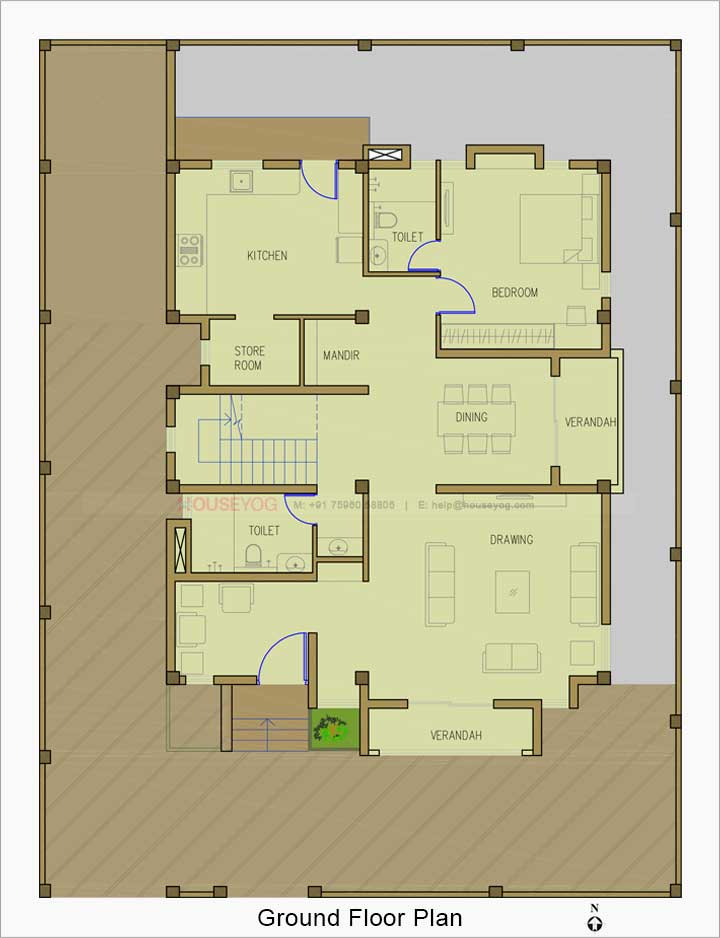

Ground Floor plan features and amenities
Ground floor built up area: 1442 sq ft, features two Verandah, bedroom, kitchen, living, store room, temple room, car parking and provision for landscaped gardening and potted planters.
Bedroom
1
Hall
Yes
Kitchen
1
Attached Bathroom
1
Common Bathroom
1
Study
No
Temple
Yes
Balcony
1
Utility space
Yes
Swimming pool
No
Garden
Yes
Car Parking
Yes

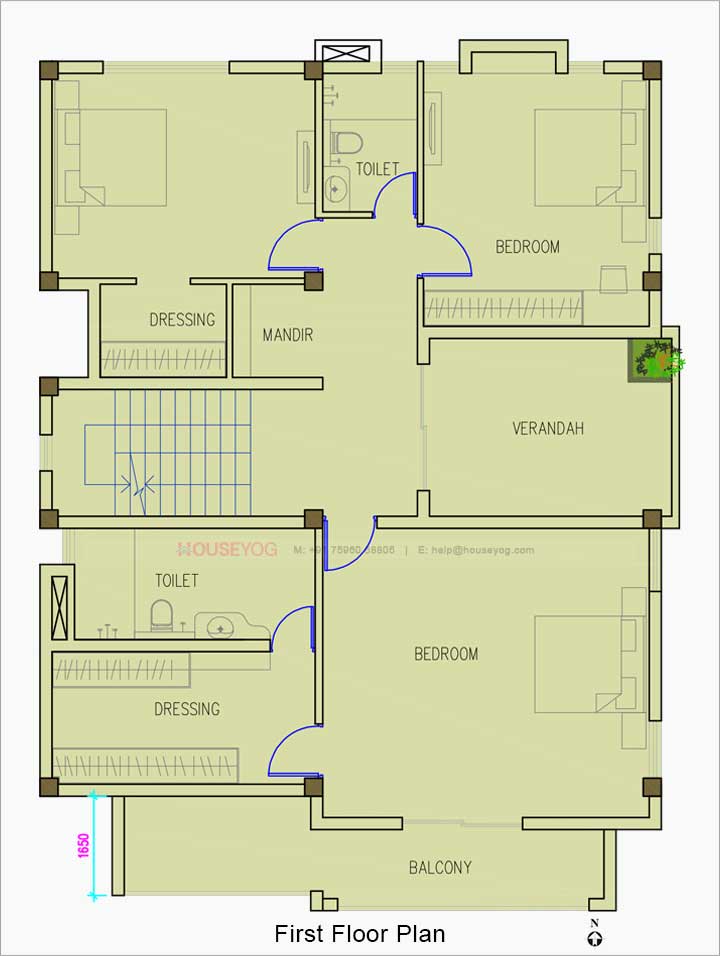

First Floor plan features and amenities
First floor built up area approx: 1539 sq ft. Features a king size master bedroom with separate dresser and a large size bathroom with provision for bathtub installation. Second bedroom with dresser, third bedroom and a common bathroom and a Verandah.
Bedroom
3
Hall
Yes
Attached Bathroom
1
Common Bathroom
1
Study
No
Temple
Yes
Balcony
2
Utility space
No
Swimming pool
No
Garden
No
Car Parking
No
Design style: Bungalow, Duplex, Indian, Luxury, Modern, Traditional
Last updated on: 06 Mar 2021
Design Code: HP1025
This house plan and design can be fully customized to meet your plot size and functional requirements. If you liked this plan and need cosmetic changes, then please tell us about your desired changes and we’ll help you get it right at surprisingly affordable rates.
Call us on 75960 58808 and talk to our experts now.
All house design plans and packages includes free customization and changes.
Order this plan now, and get it modified without paying any customization charges.
18857.56
House plan drawing
Building elevation design
--
--
--
--
--
--
Most Popular
35215.12
House plan drawing
Building elevation design
Structural drawing
Working drawing
--
--
--
--
50072.68
House plan drawing
Building elevation design
Structural drawing
Working drawing
Drainage drawing
Electrical drawing
Plumbing drawing
--
49X65 House Plan - 4 Bedroom Hous...2 house plan, 3214 sq ft plot, South facing, 4 bedrooms, 4 bathrooms with car parking |
|
Layout: 49 X 65.6 sqft |
Built area: 2982 sqft |
1 BHK Single Floor House Design1 house plan, 3240 sq ft plot, East facing, 1 bedrooms, 2 bathrooms with car parking |
|
Layout: 49 X 65.6 sqft |
Built area: 1587 sqft |
