3 Bhk Small House Plan And Elevation - HP1012

Key Features of This Plan

  • Layout
    30 x 45 sq ft

  • Plot size
    1350 sq ft

  • Build area
    1404.39 sq ft

  • Facing
    South

  • Floors
    2

  • Bedrooms
    3

  • Bathrooms
    3

  • Car Parking
    Yes

  • Open Terrace
    No

  • Lift
    No

  • Approx build cost
    1684800

Plan Description

Here's a modern 3BHK, south facing small house plan design with beautiful front elevation design. This 3 bedroom house design is suitable for approx 1350 sq ft plot area, with plot layout of around 30x45 square feet. The total built up area of this duplex house plan is approx 1404.39 sq ft.

The house features 3 bedrooms, 3 bathrooms, car parking area, landscaped garden with sitting area (Porch). The floor pan for this has been designed with comfort and spacious living in mind.

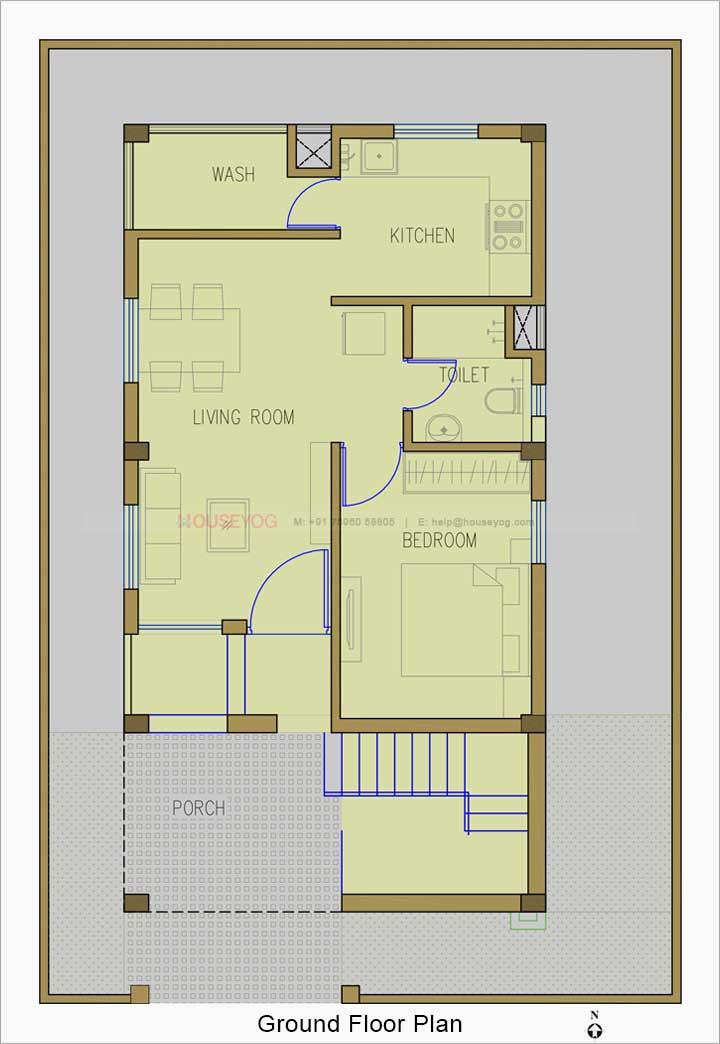

The ground floor has a total built up area of approx 631.85 sq ft and features one large size bedroom, living area, dining area and kitchen. Adjacent to the kitchen is a separate wash area.

The first floor of this house design has a built up area of approx 772.54 sq ft and it features a master bedroom with attached washroom, kids bedroom with common bathroom, living area and balcony.

Front elevation design of the house looks modern and simplistic. We have used simple and sober light grey color as the primary color, and a little white color has been used to highlight the looks of the house. We have also used tiles in the front elevation design and exterior boundary walls.

If you want to build a simple 3 bedroom house for a small family, then here's modern house design you may like to evaluate.

Plan Specification

Ground floor built up area approx 631.85 sq ft, Separate wash area adjacent to the kitchen, half covered porch, landscaped area

  • Bedroom
    1

  • Hall
    Yes

  • Kitchen
    1

  • Common Bathroom
    1

  • Study
    No

  • Temple
    No

  • Utility space
    Yes

  • Swimming pool
    No

  • Garden
    No

  • Car Parking
    Yes

First floor built up area approx: 772.54 sq ft, Bedroom has a separate dressing room, covered sitting area

  • Bedroom
    2

  • Hall
    Yes

  • Attached Bathroom
    1

  • Common Bathroom
    1

  • Study
    No

  • Temple
    Yes

  • Balcony
    1

  • Utility space
    No

  • Swimming pool
    No

  • Garden
    No

  • Car Parking
    No

House Plan and Elevation Images

Second floor plan drawing
Second floor plan drawing
First floor plan drawing
First floor plan drawing

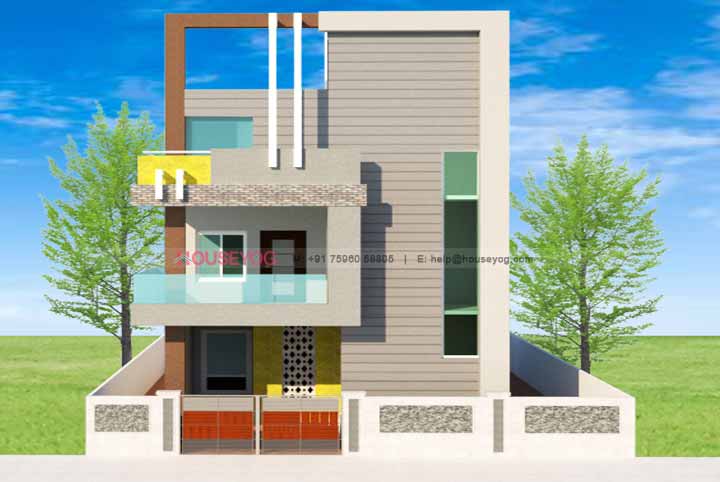

House Elevation
House Elevation

Design style: Budget, Indian, Modern, Simple

Last updated on: 21 Dec 2020

What's included in complete plan set?

Download a sample plan set

  • Space optimized floor plan with measurements
  • High definition 3D front elevation design
  • Structural and Working drawings
  • Drainage and plumbing blue print
  • Electrical and circuit drawings
