35x70 House Plan West Facing House Front Design Of Elevation - HP1048

Key Features of This Plan

  • Layout
    35 x 70 sq ft

  • Plot size
    2450 sq ft

  • Build area
    1880 sq ft

  • Facing
    West

  • Floors
    2

  • Bedrooms
    4

  • Bathrooms
    6

  • Car Parking
    Yes

  • Open Terrace
    No

  • Lift
    No

  • Approx build cost
    4165000

Plan Description

Looking for the best floor plan that can be built on a plot size of approx 35x70 sq ft for inspiration? Well, if you want to construct a modern duplex house and you have a 35 ft wide and 70 ft depth plot, then you may like to see this beautiful duplex house plan with front design for some inspiration.

This 35x70 duplex house has been designed for one of the clients in Lucknow. In this duplex house design, there is space for everything e.g. master and guest bedrooms, wide kitchen, utility room, separate living and dining space, open terrace, park etc. Almost every utility and space that you need to live comfortably with your family.

On the ground floor of this house plan, we have provisioned for two master bedrooms with attached bathrooms. Then we have a guest bedroom, a common family bathroom, a decent size kitchen room with utility space. We have a separate pooja room. There is a wide and separate dining area and drawing hall on both ground and first floors.

Both the ground floor and first floor layout in this house plan is similar, except some except that we have provisioned for one extra bedroom on the first floor. We have also kept some open space for gardening at the front of the house as well as on the rear side of this duplex house. Aside, we have also provided a balcony at the front in this duplex house design.

For this house front elevation design, we have made it look modern as well as classic at the same time. For instance, if you look at the design of the rooftop, we have made it look a bit sloppy. And for the open terrace/balcony area, we have designed a hut style roof. The boundary wall is well ventilated and matches well with the rooftop railings. We have used the combination of light and dark colour on the exterior wall in this duplex house design.

All in all, this 35x70 house plan design and 3D house front design can be a good starting point for someone planning to construct a house on approx 35x70 sq ft of plot.

Interested in similar house design? talk to us or Whatsapp us on: 7596058805/08 and talk to our architects now. The team of houseyog architects and 3D experts are ready to help design your house at surprisingly affordable rates.

Plan Specification

The ground floor in this house design has two master bedrooms with attached bathrooms, one parents bedroom, one family bathroom, a wide open  living and a separate dining room. We have a utility room, pooja room as well. Then there is a car parking

  • Bedroom
    3

  • Hall
    Yes

  • Kitchen
    1

  • Attached Bathroom
    2

  • Common Bathroom
    1

  • Study
    No

  • Temple
    Yes

  • Balcony
    1

  • Utility space
    Yes

  • Swimming pool
    No

  • Garden
    Yes

  • Car Parking
    Yes

On the first floor, we have two master bedrooms with big size attached bathrooms. Then we provided a kitchen with a utility room. Next to this we have a prayer room. Then two additional bedrooms with one common bathroom. We have also provided an open t

  • Bedroom
    4

  • Hall
    Yes

  • Kitchen
    1

  • Attached Bathroom
    2

  • Common Bathroom
    1

  • Study
    No

  • Temple
    Yes

  • Balcony
    2

  • Utility space
    Yes

  • Swimming pool
    No

  • Garden
    Yes

  • Car Parking
    No

House Plan and Elevation Images

Ground floor plan
Ground floor plan

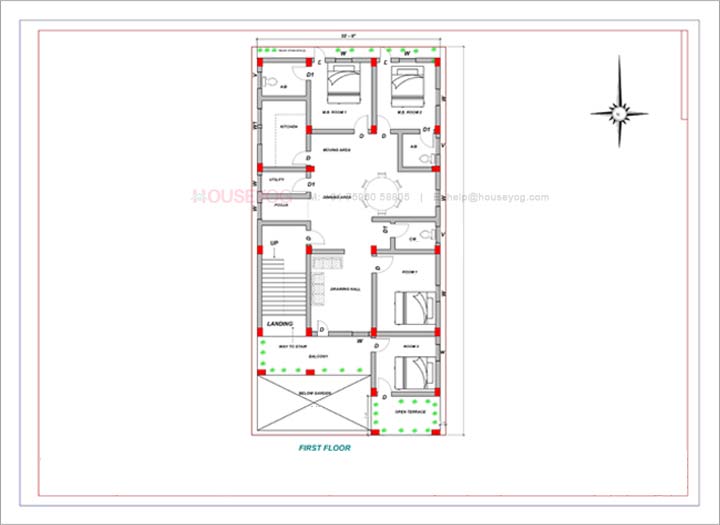

First floor plan
First floor plan
House Elevation - Front View
House Elevation - Front View

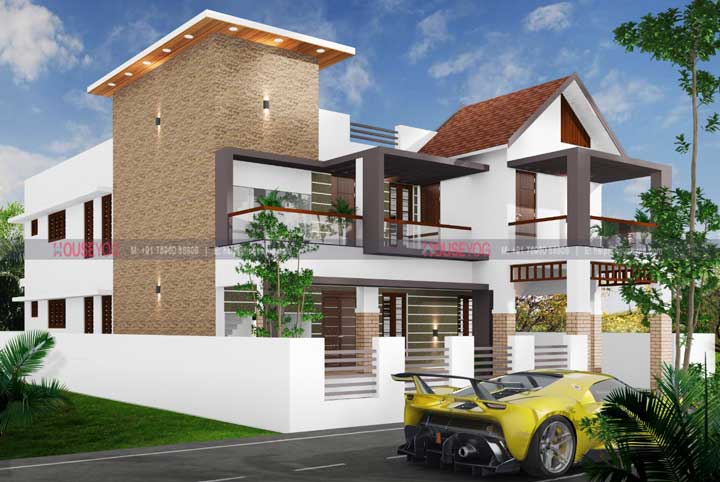

House Elevation - Corner View
House Elevation - Corner View

Design style: Duplex, Indian, Modern

Last updated on: 17 Nov 2022

What's included in complete plan set?

Download a sample plan set

  • Space optimized floor plan with measurements
  • High definition 3D front elevation design
  • Structural and Working drawings
  • Drainage and plumbing blue print
  • Electrical and circuit drawings

This plan design can be customized!

This house plan design can be customized to meet your requirements. If you liked this plan and need cosmetic changes, then please tell us about your desired changes and we’ll help you get it right. Click the button to tell us your customization needs, or call 75960 58808.

Modify This Plan

Buy This Plan and Start Building

All house design plans and packages includes free customization and changes.

Order this plan now, and get it modified without paying any customization charges.

Basic: Plan and Elevation Design

15800

House plan drawing
Building elevation design
--
--
--
--
--
--

Most Popular

Complete: Plan, Elevation and Drawings

29100

House plan drawing
Building elevation design
Structural drawing
Working drawing
--
--
--
--

Full Set: Plan, Elevation and complete drawings

40900

House plan drawing
Building elevation design
Structural drawing
Working drawing
Drainage drawing
Electrical drawing
Plumbing drawing
--
