3 Floor House Plan Design – 5 Bhk Bungalow Elevation - HP1032

Key Features of This Plan

  • Layout
    38 x 61 sq ft

  • Plot size
    2318 sq ft

  • Build area
    2654 sq ft

  • Facing
    East

  • Floors
    3

  • Bedrooms
    5

  • Bathrooms
    6

  • Car Parking
    Yes

  • Open Terrace
    No

  • Lift
    No

  • Approx build cost
    2520000

Plan Description

Here's a super spacious 3 storied house plan design featuring 5 grand size bedrooms, 6 washrooms, grand size open kitchen, separate store and wash area. The combined built up area in this house plan is approx 2654 sq ft.

At the ground floor of this bungalow style modern Indian house design, we have provided a small verandah, which leads to the grand living area and hall of this beautiful and spacious house. Then there is a master bedroom with an attached bathroom, an open kitchen with separate store rooms and wash area and a common toilet. The ground floor has partly covered car parking space, an open courtyard with sit out and provision for potted plants and greeneries. The total built up area for the ground floor comes at around 936 sq ft.

The first floor of this beautiful house has a tentative built up area of approx 990 sq ft and features two bedrooms with attached bathrooms, a sitting cum living area, one study or library room which can easily be used as a bedroom and a balcony with a sitting area.

Third floor of the house has a built up area of approx 727 sq ft and we have provided two bedrooms with attached bathrooms, a hall with sit out and an open terrace of approx 150 sq ft. The open terrace is being used extensively these days in new Indian home construction as it enhances the overall look and elevation of the building from outside and offers plenty of open space and ventilation.

The front elevation design of this5 BHK duplex bungalow looks very modern and up-class. With a front courtyard, balcony, open terrace and hut style roof slope, this house will look just amazing on a plot size of approx 2300 to 2500 square feet (layout 38x61 sq ft).

If you are planning to construct a bungalow style modern and duplex house for your family then this house plan design may be worth checking. This plan and design is fully customizable and if you like this design, then talk to us for any sort of customization or getting a similar house designed from scratch for your dream home.

Plan Specification

Ground floor: built up area approx: 936 sq ft. Features 1 bedroom with attached bathroom, living hall, dining area, kitchen, store room, wash area and one common toilet. Front open courtyard and car parking

  • Bedroom
    1

  • Hall
    Yes

  • Kitchen
    1

  • Attached Bathroom
    1

  • Common Bathroom
    1

  • Study
    No

  • Temple
    No

  • Balcony
    1

  • Utility space
    Yes

  • Swimming pool
    No

  • Garden
    Yes

  • Car Parking
    Yes

First floor built up area: approx 990 sq ft. Features two bedrooms with attached toilets, one study, one balcony with sit out and a living area.

  • Bedroom
    2

  • Hall
    Yes

  • Attached Bathroom
    2

  • Study
    Yes

  • Temple
    No

  • Balcony
    1

  • Utility space
    Yes

  • Swimming pool
    No

  • Garden
    No

  • Car Parking
    No

First floor built up area approx: 727 sq ft, two bedrooms with attached bathrooms, living hall and open terrace

  • Bedroom
    2

  • Hall
    Yes

  • Attached Bathroom
    2

  • Study
    No

  • Temple
    No

  • Balcony
    1

  • Utility space
    No

  • Swimming pool
    No

  • Garden
    No

  • Car Parking
    No

House Plan and Elevation Images

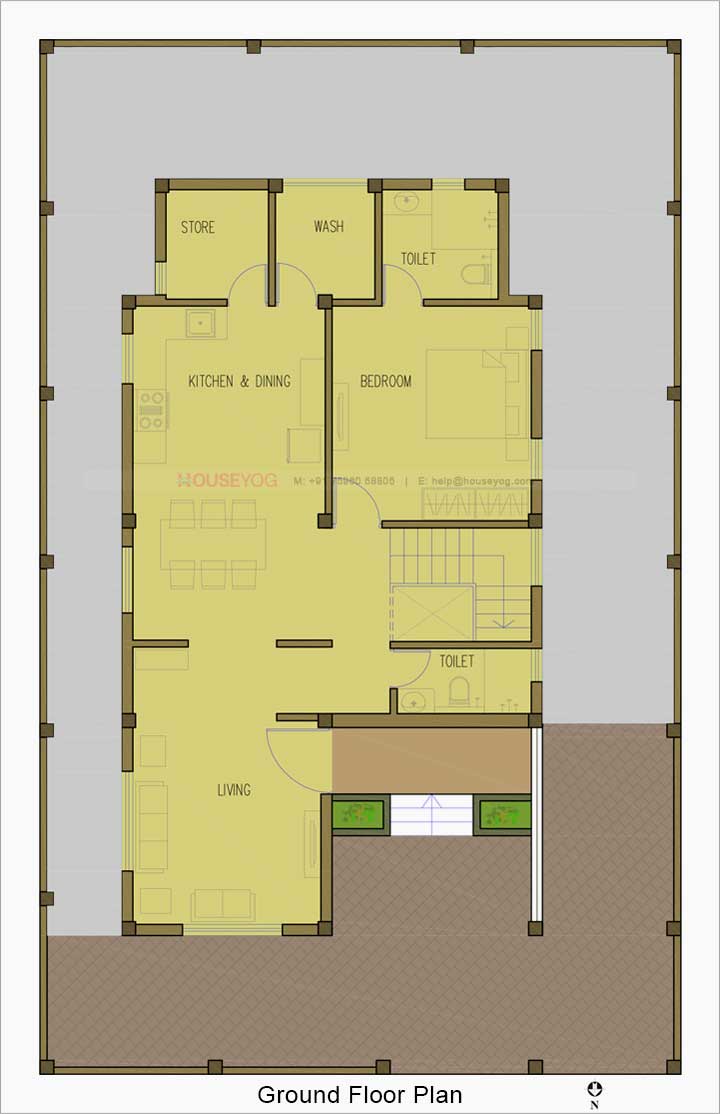

Ground floor plan
Ground floor plan

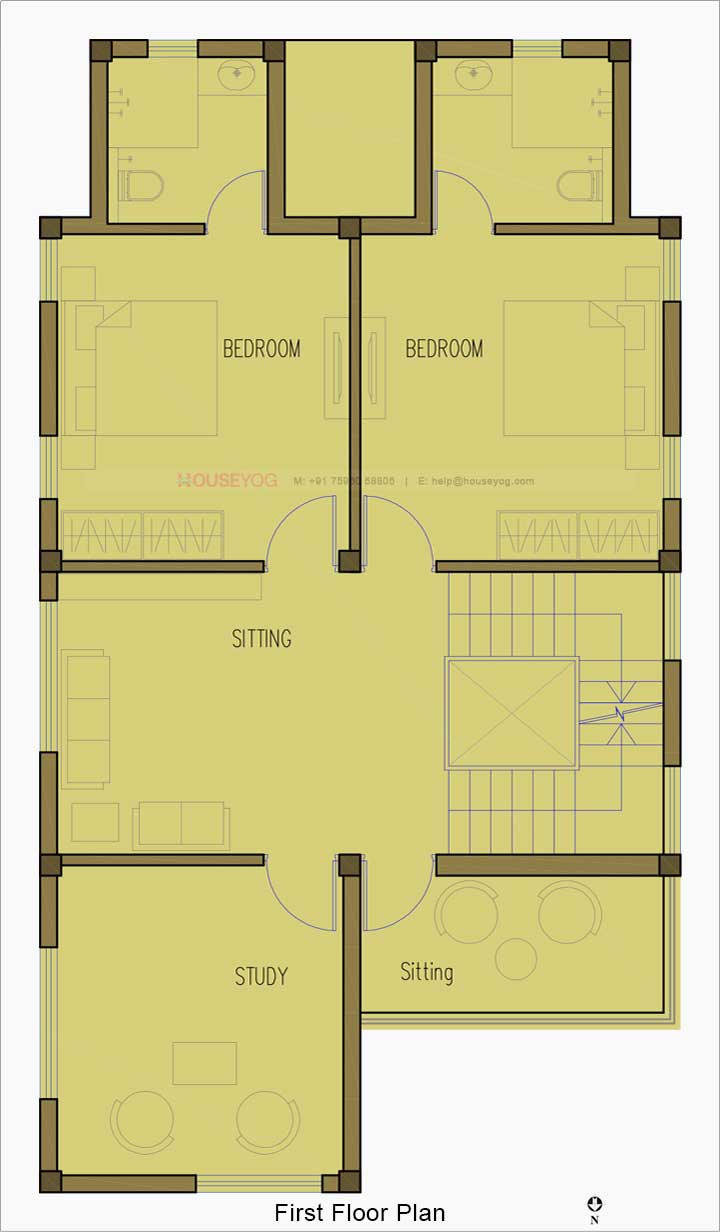

First floor plan
First floor plan

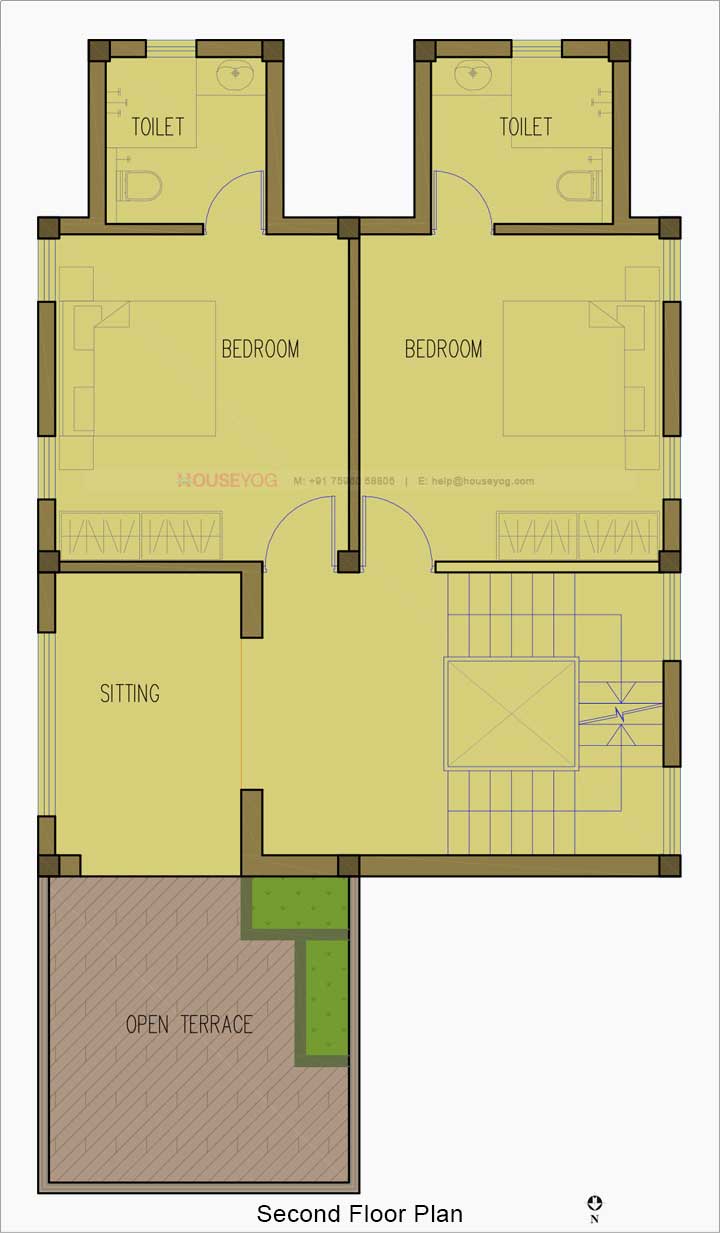

Second floor plan
Second floor plan
House Elevation
House Elevation

Design style: Bungalow, Duplex, Luxury, Modern

Last updated on: 21 Jan 2021

What's included in complete plan set?

  • Space optimized floor plan with measurements
  • High definition 3D front elevation design
  • Structural and Working drawings
  • Drainage and plumbing blue print
  • Electrical and circuit drawings

Get this house plan and design customized for you!

Design Code: HP1032

This house plan and design can be fully customized to meet your plot size and functional requirements. If you liked this plan and need cosmetic changes, then please tell us about your desired changes and we’ll help you get it right at surprisingly affordable rates.

Call us on 75960 58808 and talk to our experts now.

Modify This Plan

Buy This Plan and Start Building

All house design plans and packages includes free customization and changes.

Order this plan now, and get it modified without paying any customization charges.

Basic: Plan and Elevation Design

17272

House plan drawing
Building elevation design
--
--
--
--
--
--

Most Popular

Complete: Plan, Elevation and Drawings

30544

House plan drawing
Building elevation design
Structural drawing
Working drawing
--
--
--
--

Full Set: Plan, Elevation and complete drawings

41816

House plan drawing
Building elevation design
Structural drawing
Working drawing
Drainage drawing
Electrical drawing
Plumbing drawing
--
