35x54 Sq Ft 3 Bhk + Study House Plan, Front Elevation Design - HP1035

Key Features of This Plan

  • Layout
    35.5 x 54 sq ft

  • Plot size
    1917 sq ft

  • Build area
    1906 sq ft

  • Facing
    North

  • Floors
    2

  • Bedrooms
    3

  • Bathrooms
    3

  • Car Parking
    Yes

  • Open Terrace
    No

  • Lift
    No

  • Approx build cost
    2287200

Plan Description

Here's a space optimized 3 BHK Modern House Plan and Elevation design featuring ground and first floor. In this beautiful house plan, we have kept provision for all the amenities and features that makes it a super small house plan with modern front elevation design.

The house plan has been drawn for a plot size of 35'6"x54' sq ft (approx 1900 sq ft) and has a combined built up area of approx 1906 sq ft. This two floor house plan offers all of the common amenities and features 3 bedrooms, 1 study room, 3 bathrooms, car parking and open terrace with potted planters. We have also kept provision for front landscaping.

The ground floor of the house which has a built up area of approx 954 sq ft features a living room and a separate dining hall. We have provided a good size modern Indian kitchen with a separate wash area and a hand wash basin near the dining area. The master bedroom at the back has an attached bathroom. We have also provided a one study or library room which can be converted into a home office or can be used as a guest room, because there is a common bathroom close to it.

One the ground floor, we have kept Front open space and provision for landscaping and sit out area. There is an open car parking space that can be used to park cars as well as bikes and scooty as per needs.

The staircase is placed inside the house as this house is being constructed for family and there is no rental objective. The staircase leads to the first floor of the house which has nearly the same built up area like the ground floor.

On the first floor of this beautiful Indian house plan design, we have provided two bedrooms with attached bathrooms, one mid size hall with sitting area, a standard size puja/temple room and open terrace with planters and sitting area.

The front elevation design of this 3 BHK North facing duplex house is very modern. To make the exterior view of this house look luxurious. The sloped roof top and open terrace on the first floor simply enhances the elevation design of this beautiful duplex house.

We have used two different tiles on the front exterior walls, which can easily be replaced with exterior wall paints. The front boundary wall of this beautiful duplex bungalow also features tiles and has provision for potted plants and gardening. We have provided the main gate for the entry of cars and smaller gates for bikes and individuals.

If you are planning to construct a compact and space optimized duplex Indian house for your family then this design should inspire you to think out of the box while planning and designing your dream home. This beautiful 3 bedroom+1 study house plan design is fully customizable and we will be happy to customize this plan as per your space needs and requirements.

Plan Specification

Ground floor built up area: 954 sq ft. One master bedroom with attached bath. one kitchen with separate wash area. One study/library/home office which can be used as a guest bedroom, one common toilet, separate livng room and dining room with hand wash ba

  • Bedroom
    1

  • Hall
    Yes

  • Kitchen
    1

  • Attached Bathroom
    1

  • Common Bathroom
    1

  • Study
    Yes

  • Temple
    No

  • Utility space
    Yes

  • Swimming pool
    No

  • Garden
    Yes

  • Car Parking
    Yes

First floor built up area: 952 sq ft. Two bedrooms with attached baths, one puja/temple area and a mid sized sitting area, one common toilet and open terrace with potted planters and sit out.

  • Bedroom
    2

  • Hall
    Yes

  • Attached Bathroom
    2

  • Common Bathroom
    1

  • Study
    No

  • Temple
    Yes

  • Balcony
    1

  • Utility space
    Yes

  • Swimming pool
    No

  • Garden
    Yes

  • Car Parking
    No

House Plan and Elevation Images

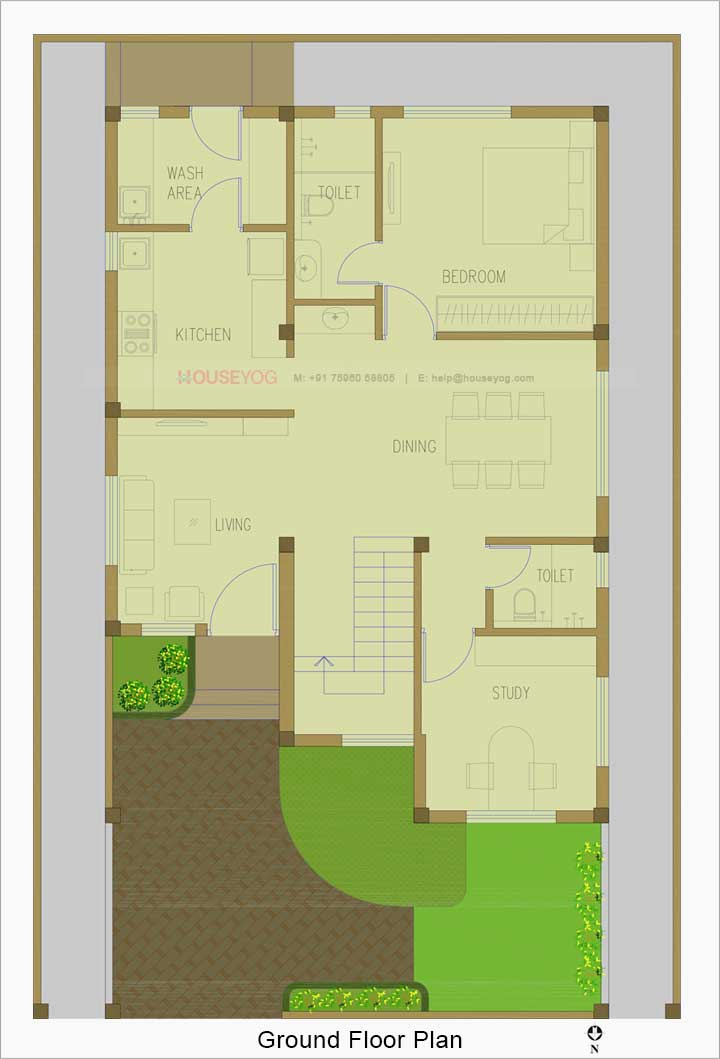

Ground floor plan
Ground floor plan

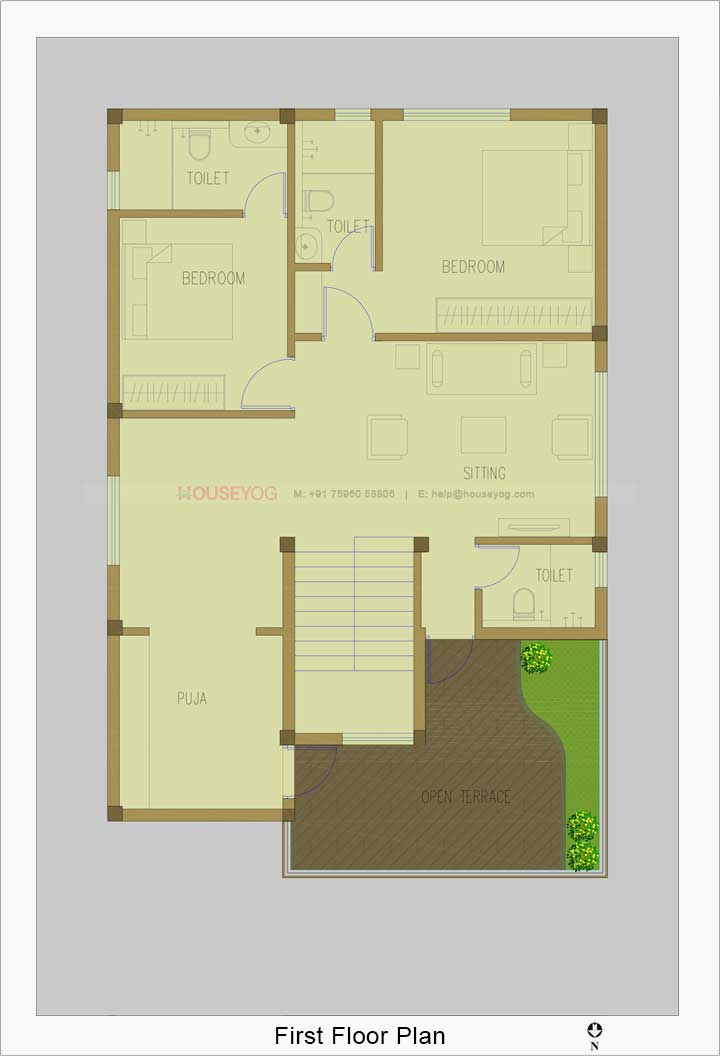

First floor plan
First floor plan

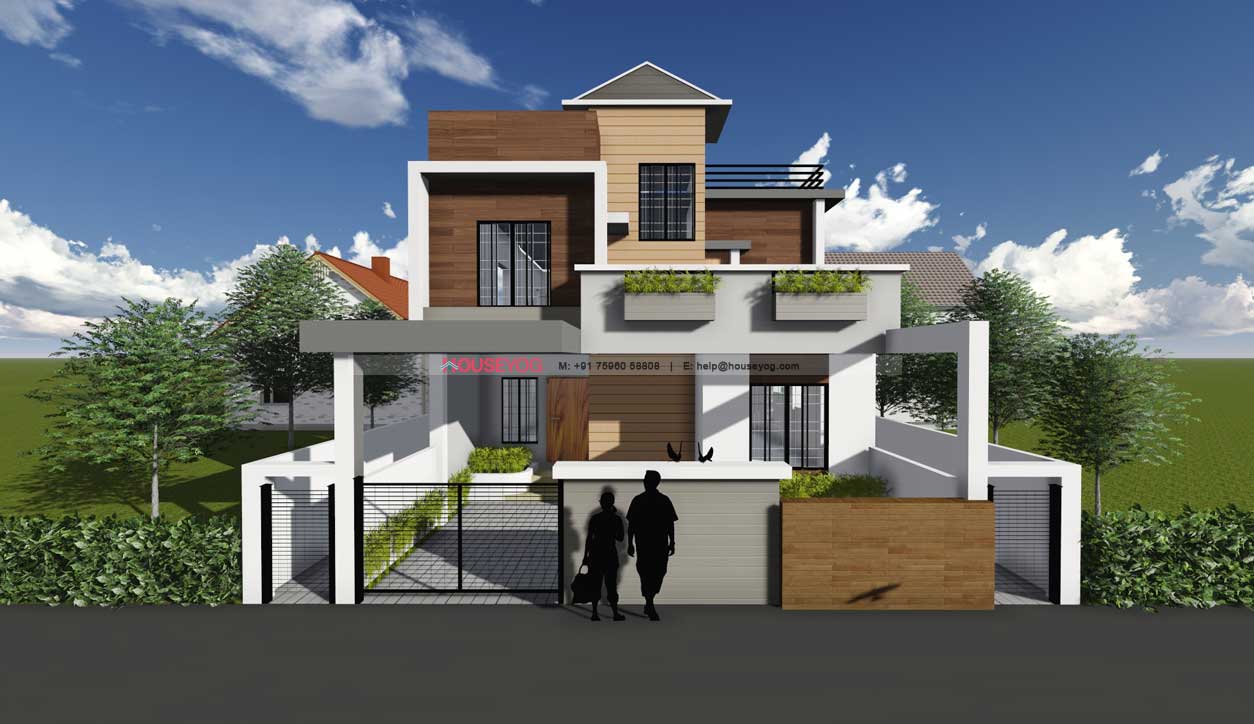

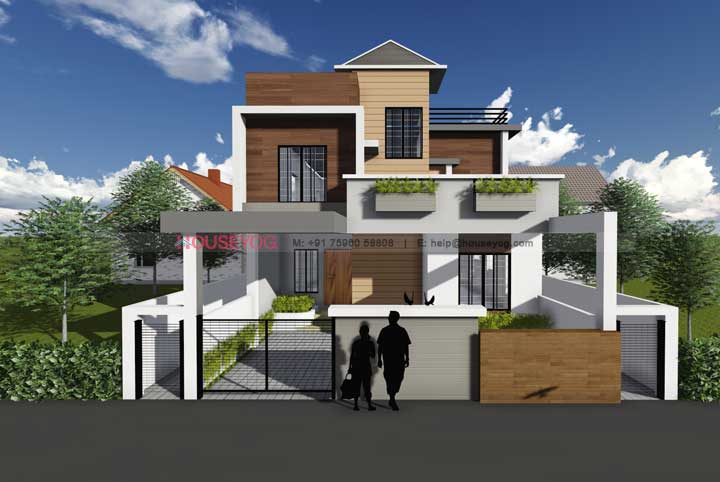

House Elevation - Front View
House Elevation - Front View

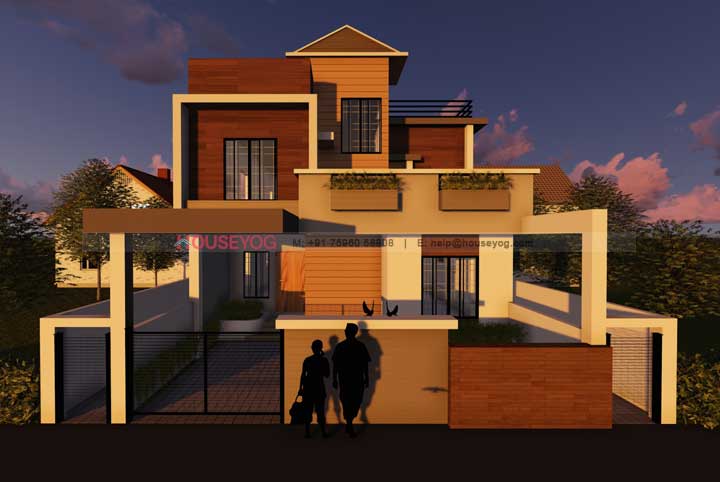

House Elevation - Night View
House Elevation - Night View

Design style: Bungalow, Duplex, Indian, Luxury, Modern

Last updated on: 06 Mar 2021

What's included in complete plan set?

  • Space optimized floor plan with measurements
  • High definition 3D front elevation design
  • Structural and Working drawings
  • Drainage and plumbing blue print
  • Electrical and circuit drawings
