House plan design

3 Bhk Small House Plan Modern Design - HP1030

Key Features of This Plan

  • Layout
    32 x 46.9 sq ft

  • Plot size
    1496 sq ft

  • Build area
    1533 sq ft

  • Facing
    East

  • Floors
    2

  • Bedrooms
    3

  • Bathrooms
    3

  • Car Parking
    Yes

  • Open Terrace
    No

  • Lift
    No

  • Approx build cost
    1839600

Plan Description

Here's a 3 BHK small house plan with modern front and side elevation design

This two marla (duplex) house plan has been designed for a small plot of approx 1500 square feet (32'x46'9" sq ft plot layout). The two storey house has a super built up area of approx 1533 sq ft.

The ground floor of the house has a built up area of approx 750 sq ft and features a decent size living room, a separate dining area, kitchen with utility space, one bedroom, one bathroom and staircase that leads to the first floor of this duplex house. There is open car parking space, and we have left front open space with provision for landscaped gardens.

The first floor of this duplex house plan has a built up area of approx 779 sq ft and features two bedrooms, two bathrooms, temple room and sitting room. There's also an open terrace of approx 140 sq ft that can be used for potted plantation to create greeneries.

The elevation design of this small duplex house is very modern and it looks rich and luxurious. The exterior boundary wall of this modern Indian home looks pretty because of subtle use of tiles that highlights the part of the boundary wall. The exterior wall color of this house looks rich because of simple colors and usage of tiles to highlight a portion of the elevation.

All in all, this beautiful 3 BHK small house plan will suit a small Indian family looking for low cost home construction with rich and luxurious feel. This small house plan is compact, but offers a very comfortable and luxurious living.

Plan Specification

Ground floor built up area for this small house plan is approx: 754 sq ft. Key features includes front open space with landscaping provision, open car parking, grand living room, separate dining area, bedroom, kitchen with store/utility room.

  • Bedroom
    1

  • Hall
    Yes

  • Kitchen
    1

  • Common Bathroom
    1

  • Study
    No

  • Temple
    No

  • Utility space
    Yes

  • Swimming pool
    No

  • Garden
    Yes

  • Car Parking
    Yes

The first floor of this small house design has a built up area of approx 779 sq ft. Key features includes open terrace with provision for potted plantation, two bedrooms, one attached bathroom, one common bath and sitting area.

  • Bedroom
    2

  • Hall
    Yes

  • Attached Bathroom
    1

  • Common Bathroom
    1

  • Study
    No

  • Temple
    Yes

  • Balcony
    1

  • Utility space
    No

  • Swimming pool
    No

  • Garden
    Yes

  • Car Parking
    No

House Plan and Elevation Images

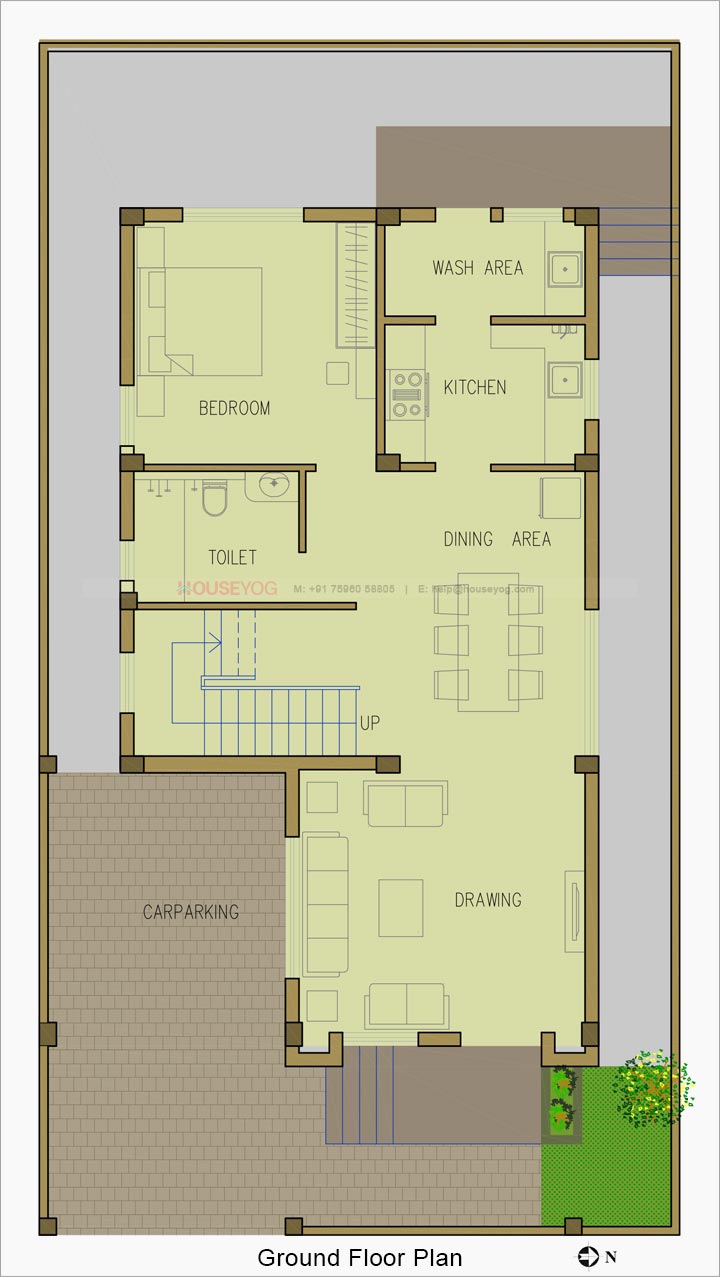

Ground floor plan
Ground floor plan

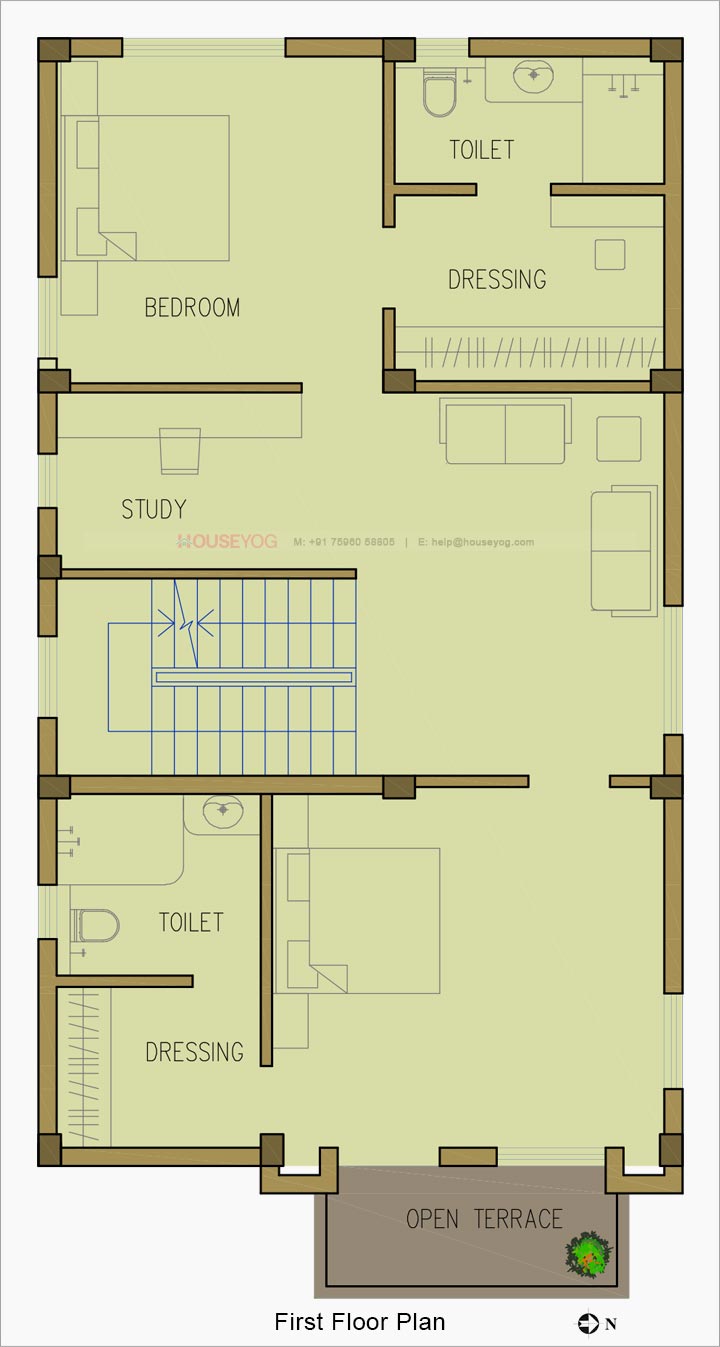

First floor plan
First floor plan

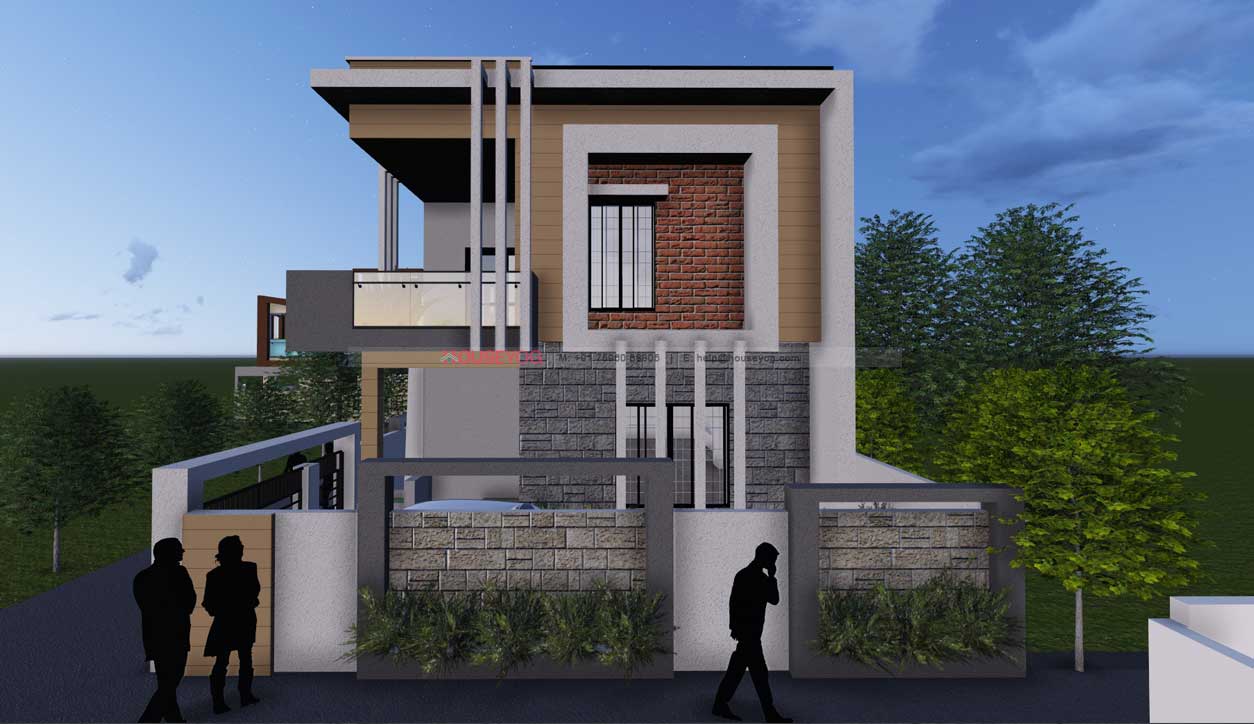

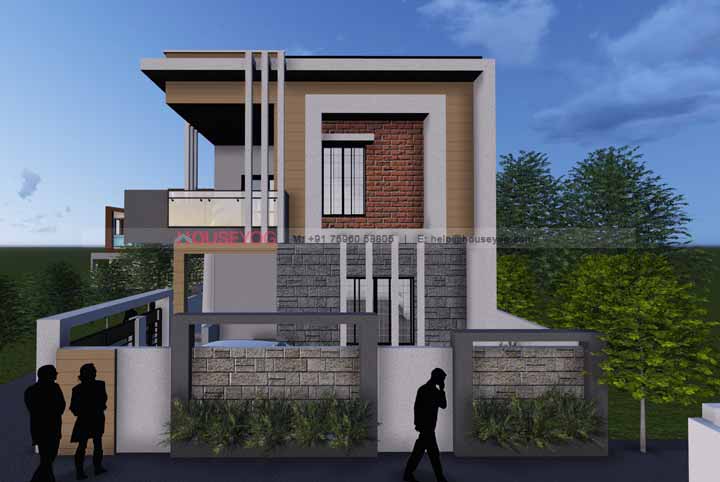

House Elevation - Front View
House Elevation - Front View

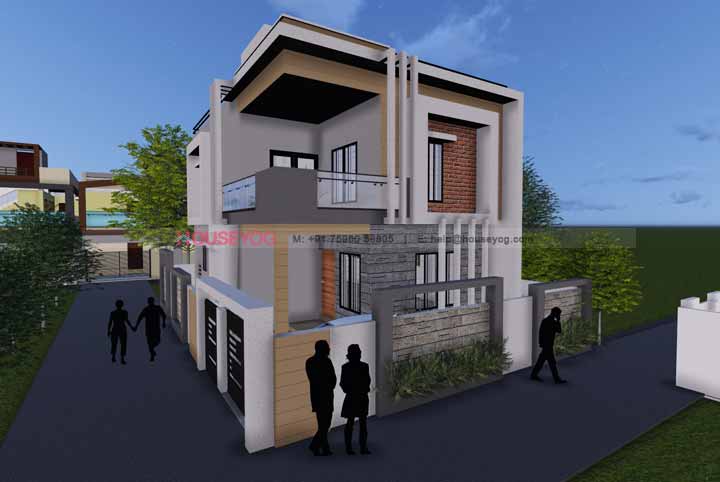

House Elevation - Side View
House Elevation - Side View

Design style: Budget, Contemporary, Duplex, Indian, Luxury, Modern, Simple

Last updated on: 06 Jan 2021

What's included in complete plan set?

  • Space optimized floor plan with measurements
  • High definition 3D front elevation design
  • Structural and Working drawings
  • Drainage and plumbing blue print
  • Electrical and circuit drawings

Get this house plan and design customized for you!

Design Code: HP1030

This house plan and design can be fully customized to meet your plot size and functional requirements. If you liked this plan and need cosmetic changes, then please tell us about your desired changes and we’ll help you get it right at surprisingly affordable rates.

Call us on 75960 58808 and talk to our experts now.

Modify This Plan

Buy This Plan and Start Building

All house design plans and packages includes free customization and changes.

Order this plan now, and get it modified without paying any customization charges.

Basic: Plan and Elevation Design

11984

House plan drawing
Building elevation design
--
--
--
--
--
--

Most Popular

Complete: Plan, Elevation and Drawings

21468

House plan drawing
Building elevation design
Structural drawing
Working drawing
--
--
--
--

Full Set: Plan, Elevation and complete drawings

29452

House plan drawing
Building elevation design
Structural drawing
Working drawing
Drainage drawing
Electrical drawing
Plumbing drawing
--
