3 Bhk House Plan With Front Design - HP1021

Key Features of This Plan

  • Layout
    48.6 x 42.3 sq ft

  • Plot size
    2055.77 sq ft

  • Build area
    1872 sq ft

  • Facing
    South

  • Floors
    2

  • Bedrooms
    3

  • Bathrooms
    3

  • Car Parking
    Yes

  • Open Terrace
    No

  • Lift
    No

  • Approx build cost
    2246400

Plan Description

Here's a 3 bedroom small house plan with home front design for 2047 sq ft plot size. This beautiful house plan has been designed for 48x42 sq ft plot size. The 3 bedroom south facing small house design has a total built up area of approx 1872 sq ft and features 3 bathrooms, open car parking space, balconies and open terrace.

The ground floor in this house design has built up area of approx 1005 sq ft and features a mid size balcony, a grand living room, kitchen with a separate dining room and a one common bathroom.

The first floor of the house has been planned for family living with an approx built up area of 867 sq ft. One the first floor, we have provided one master bedroom with an attached bathroom, and children room with a common bathroom. There is a mid-size hall with a sitting area and open terrace with potted planters.

The house front design in this plan features simple yet good looking elevation. We have used weather coat exterior wall paints instead of wall tiles to keep the construction and finishing costs in budget. The elevation can be tweaked to use wall tiles instead of the wall paint.

This ready to use house pan is fully customizable and we can make small changes here and there to fit your needs and construction budget.

Plan Specification

Ground floor built up area approx: 1005 sq ft. Features one bedroom, separate living and dining room, one common bathroom, kitchen, open car parking and front balcony

  • Bedroom
    1

  • Hall
    Yes

  • Kitchen
    1

  • Common Bathroom
    1

  • Study
    No

  • Temple
    No

  • Balcony
    1

  • Utility space
    Yes

  • Swimming pool
    No

  • Garden
    No

  • Car Parking
    Yes

first floor built up area: 867 sq ft, open terrace area approx 137 sq ft. Features two bedrooms, two bathrooms, living area and open terrace

  • Bedroom
    2

  • Hall
    Yes

  • Attached Bathroom
    1

  • Common Bathroom
    1

  • Study
    No

  • Temple
    No

  • Balcony
    1

  • Utility space
    Yes

  • Swimming pool
    No

  • Garden
    No

  • Car Parking
    No

House Plan and Elevation Images

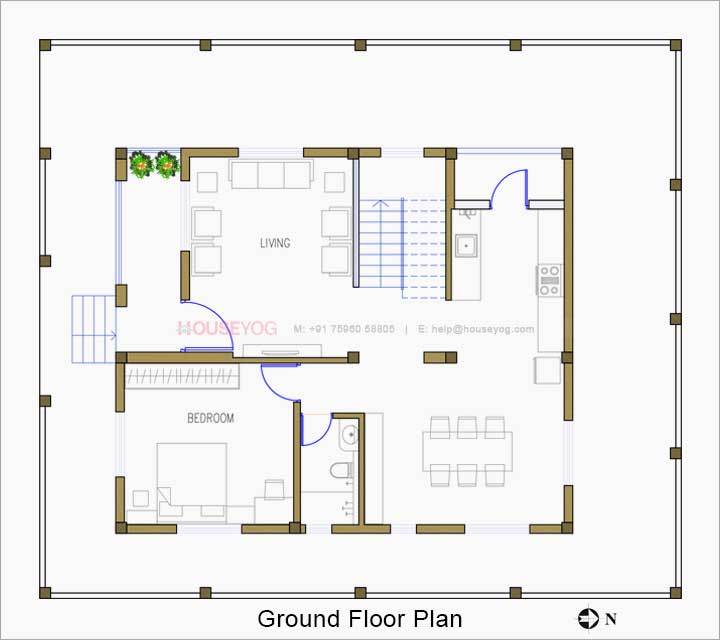

Ground floor plan
Ground floor plan

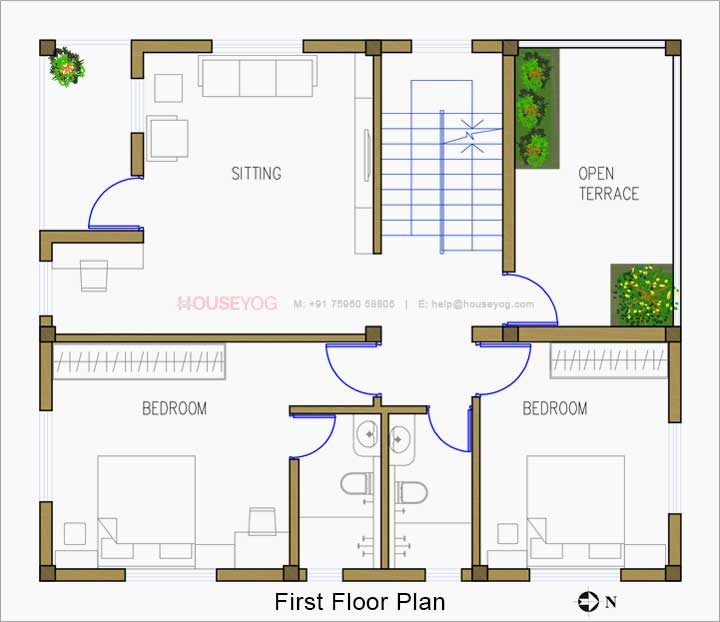

First floor plan
First floor plan
House Elevation
House Elevation

Design style: Budget, Duplex, Indian, Simple, Traditional

Last updated on: 30 Dec 2020

What's included in complete plan set?

  • Space optimized floor plan with measurements
  • High definition 3D front elevation design
  • Structural and Working drawings
  • Drainage and plumbing blue print
  • Electrical and circuit drawings

Get this house plan and design customized for you!

Design Code: HP1021

This house plan and design can be fully customized to meet your plot size and functional requirements. If you liked this plan and need cosmetic changes, then please tell us about your desired changes and we’ll help you get it right at surprisingly affordable rates.

Call us on 75960 58808 and talk to our experts now.

Modify This Plan

Buy This Plan and Start Building

All house design plans and packages includes free customization and changes.

Order this plan now, and get it modified without paying any customization charges.

Basic: Plan and Elevation Design

14223.08

House plan drawing
Building elevation design
--
--
--
--
--
--

Most Popular

Complete: Plan, Elevation and Drawings

25946.16

House plan drawing
Building elevation design
Structural drawing
Working drawing
--
--
--
--

Full Set: Plan, Elevation and complete drawings

36169.24

House plan drawing
Building elevation design
Structural drawing
Working drawing
Drainage drawing
Electrical drawing
Plumbing drawing
--
