House plan design

3 Bedroom Small House Design - HP1011

Key Features of This Plan

  • Layout
    21 x 47 sq ft

  • Plot size
    987 sq ft

  • Build area
    1263.19 sq ft

  • Facing
    North

  • Floors
    2

  • Bedrooms
    3

  • Bathrooms
    2

  • Car Parking
    No

  • Open Terrace
    No

  • Lift
    No

  • Approx build cost
    1515828

Plan Description

Here's a compact 3 bedroom house design suitable for a small plot of approx 987 sq ft. This two storey small family house has a total built up area of 1263.19 sq ft, and features 3 bedrooms and two bathrooms.

The Ground floor has the built up area of approx 598.11 square feet and features one bedroom, one bathroom, kitchen, dining area and a living room with a verandah.

The first floor of this house has a built up area of approx 665.08 sq ft, a little more than the ground floor. The master bedroom on the first floor has an attached toilet. There is a second bedroom with a balcony. There is a large living cum drawing area on the first floor, along with a temple room.

This small house plan has been designed for a small family. If you planning to build your dream home on a smaller plot of approx 1000 sq ft area, and you're looking for simple, yet modern, spacious yet compact house design, then this house plan and front elevation design may suit your need.

Plan Specification

Ground floor built up area approx: 598.11 sq ft, has varandah that opens from the living area

  • Bedroom
    1

  • Hall
    Yes

  • Kitchen
    1

  • Common Bathroom
    1

  • Study
    No

  • Temple
    No

  • Balcony
    1

  • Utility space
    No

  • Swimming pool
    No

  • Garden
    No

  • Car Parking
    No

First floor approx built up area: 665 sq ft, has sitting and entertainment area and balcony

  • Bedroom
    2

  • Hall
    Yes

  • Attached Bathroom
    1

  • Common Bathroom
    1

  • Study
    No

  • Temple
    Yes

  • Balcony
    1

  • Utility space
    No

  • Swimming pool
    No

  • Garden
    No

  • Car Parking
    No

House Plan and Elevation Images

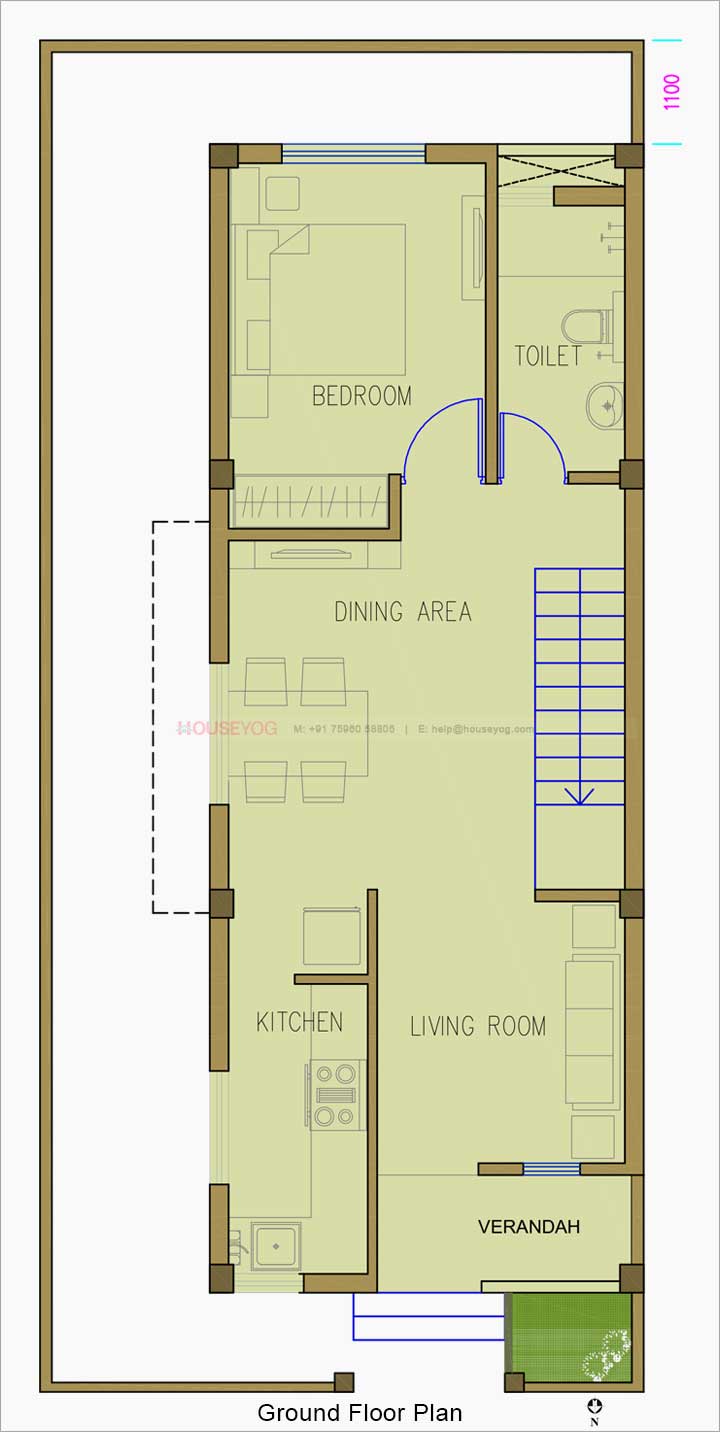

Ground floor plan drawing
Ground floor plan drawing

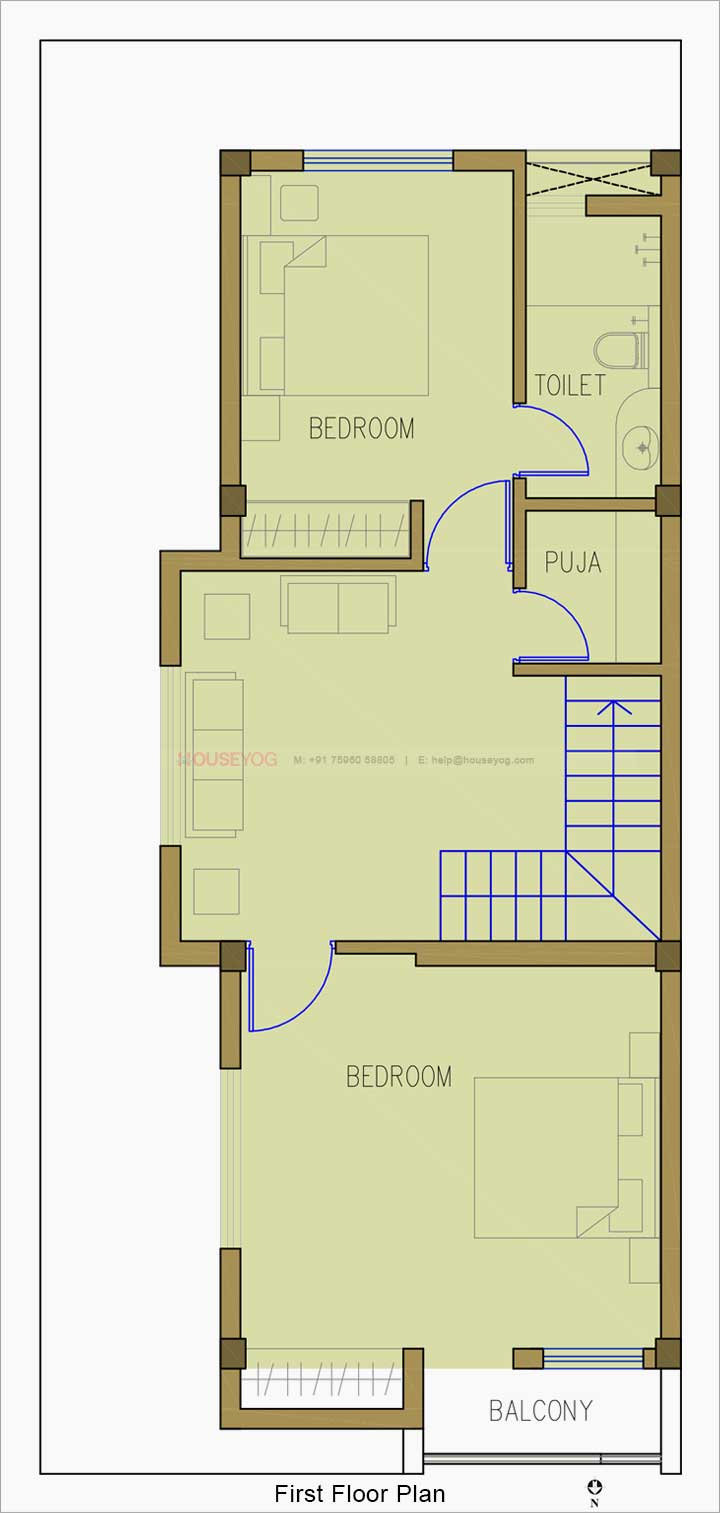

First floor plan drawing
First floor plan drawing

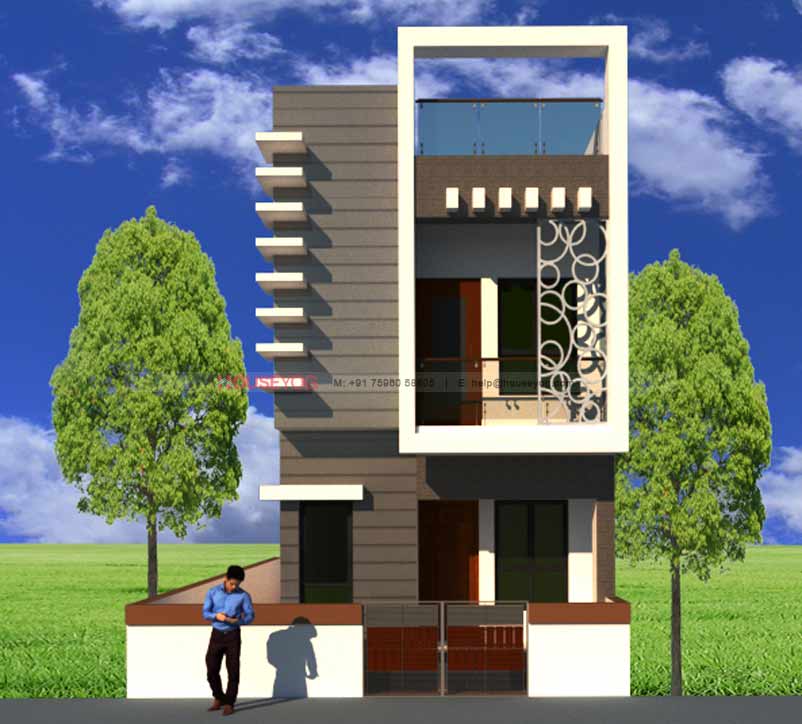

House Elevation
House Elevation

Design style: Budget

Last updated on: 21 Dec 2020

What's included in complete plan set?

  • Space optimized floor plan with measurements
  • High definition 3D front elevation design
  • Structural and Working drawings
  • Drainage and plumbing blue print
  • Electrical and circuit drawings

Get this house plan and design customized for you!

Design Code: HP1011

This house plan and design can be fully customized to meet your plot size and functional requirements. If you liked this plan and need cosmetic changes, then please tell us about your desired changes and we’ll help you get it right at surprisingly affordable rates.

Call us on 75960 58808 and talk to our experts now.

Modify This Plan

Buy This Plan and Start Building

All house design plans and packages includes free customization and changes.

Order this plan now, and get it modified without paying any customization charges.

Basic: Plan and Elevation Design

10000

House plan drawing
Building elevation design
--
--
--
--
--
--

Most Popular

Complete: Plan, Elevation and Drawings

17500

House plan drawing
Building elevation design
Structural drawing
Working drawing
--
--
--
--

Full Set: Plan, Elevation and complete drawings

23500

House plan drawing
Building elevation design
Structural drawing
Working drawing
Drainage drawing
Electrical drawing
Plumbing drawing
--
