36x63 House Plan – 3 Bedroom Indian Home Design - HP1036

Key Features of This Plan

  • Layout
    36 x 63 sq ft

  • Plot size
    2268 sq ft

  • Build area
    2186 sq ft

  • Facing
    North

  • Floors
    2

  • Bedrooms
    3

  • Bathrooms
    4

  • Car Parking
    Yes

  • Open Terrace
    No

  • Lift
    No

  • Approx build cost
    2623200

Plan Description

Here's a modern Indian home design - 3 Bedroom house plan with front deck area and back side open terrace on the first floor.

This two floor Indian house plan is designed for a plot size of approx 2,300 sq ft (plot layout 36'9"x63' sq ft) with combined built up area of 2186 sq ft. the north facing duplex house plan features 3 bedrooms, 4 bathrooms, front deck and open terrace and semi covered car parking space.

The ground floor of this beautiful house has a built up area of approx 1162 sq ft. We have provided two bedrooms, two bathrooms (one attached to the master bedroom in front) living room and separate dining area, one good sized kitchen and a separate wash area, that can be converted into a store room if needed.

The floor of this house plan has a built up area of approx: 1023 sq ft and features one grand size bedroom with attached bathroom, one common bathroom, a wash basin, a big size hall/sitting area, front open deck area and open terrace at the back side.

The front elevation design of this house looks quite modern and Indian. We have used grey, off white and lemon green colors for the wall. The exterior boundary wall of this beautiful Indian home design looks super attractive because of the tiled wall and greeneries.

If you are planning to build a duplex house for your family, then you may like this house plan and front design. This house plan and elevation design can be customized to suit your needs and plot size.

Plan Specification

Ground floor built up area: 1162 sq ft - key features are front side porch, 2 bedrooms, kitchens, wash area, drawing room and a grand size hall. semi covered car parking with provision for small landscaped garden.

  • Bedroom
    2

  • Hall
    Yes

  • Kitchen
    1

  • Attached Bathroom
    1

  • Common Bathroom
    1

  • Study
    No

  • Temple
    No

  • Utility space
    Yes

  • Swimming pool
    No

  • Garden
    Yes

  • Car Parking
    Yes

First floor built up area approx: 1023 sq ft and features one bedroom with attached bathroom and dresser. A grand size sitting area, common washroom and open terrace (approx 322 sq ft) at the back.

  • Bedroom
    1

  • Hall
    Yes

  • Attached Bathroom
    1

  • Common Bathroom
    1

  • Study
    No

  • Temple
    No

  • Balcony
    1

  • Utility space
    No

  • Swimming pool
    No

  • Garden
    No

  • Car Parking
    No

House Plan and Elevation Images

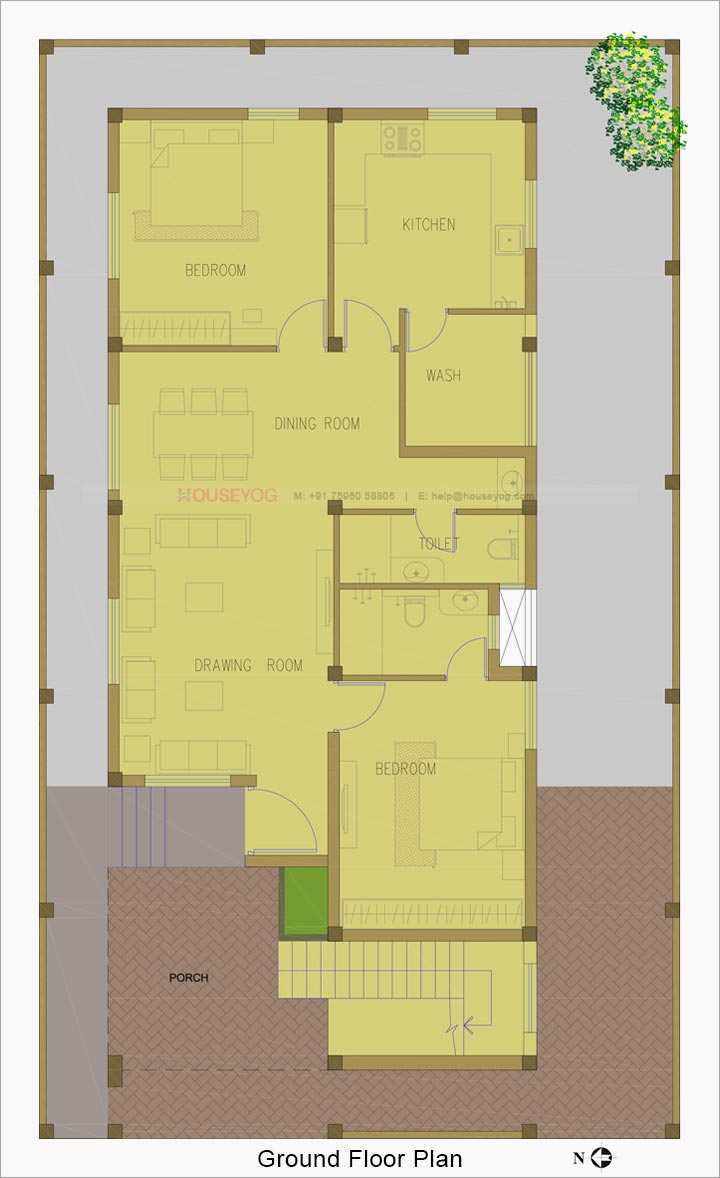

Ground floor plan
Ground floor plan
First floor plan
First floor plan

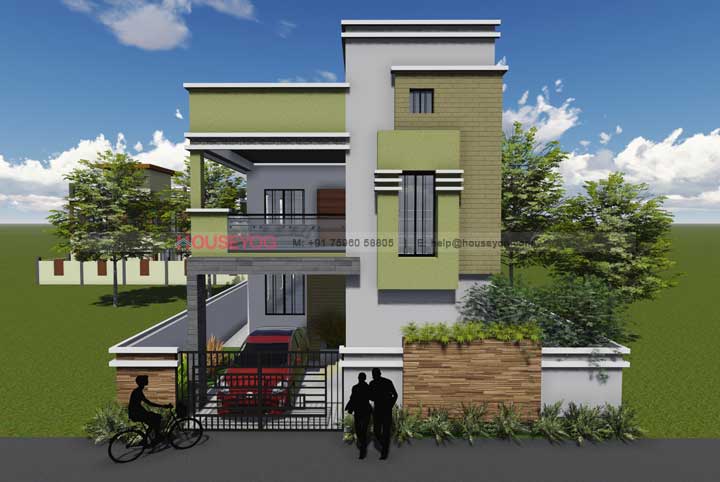

House Elevation
House Elevation

Design style: Duplex, Indian, Modern, Simple

Last updated on: 06 Mar 2021

What's included in complete plan set?

  • Space optimized floor plan with measurements
  • High definition 3D front elevation design
  • Structural and Working drawings
  • Drainage and plumbing blue print
  • Electrical and circuit drawings

Get this house plan and design customized for you!

Design Code: HP1036

This house plan and design can be fully customized to meet your plot size and functional requirements. If you liked this plan and need cosmetic changes, then please tell us about your desired changes and we’ll help you get it right at surprisingly affordable rates.

Call us on 75960 58808 and talk to our experts now.

Modify This Plan

Buy This Plan and Start Building

All house design plans and packages includes free customization and changes.

Order this plan now, and get it modified without paying any customization charges.

Basic: Plan and Elevation Design

15072

House plan drawing
Building elevation design
--
--
--
--
--
--

Most Popular

Complete: Plan, Elevation and Drawings

27644

House plan drawing
Building elevation design
Structural drawing
Working drawing
--
--
--
--

Full Set: Plan, Elevation and complete drawings

38716

House plan drawing
Building elevation design
Structural drawing
Working drawing
Drainage drawing
Electrical drawing
Plumbing drawing
--
