3 Bedroom House Plan - 24 By 53 House Design - HP1031

Key Features of This Plan

  • Layout
    24 x 53 sq ft

  • Plot size
    1272 sq ft

  • Build area
    1506 sq ft

  • Facing
    West

  • Floors
    2

  • Bedrooms
    3

  • Bathrooms
    3

  • Car Parking
    Yes

  • Open Terrace
    No

  • Lift
    No

  • Approx build cost
    1807200

Plan Description

Here's a beautiful small Indian house design - 3 BHK duplex house plan for 24 by 53 sq ft plot size.

This house has been designed for a small plot of approx 1200-1300 sq ft area. The two storey 3 bedroom house plan has a super built up area of approx 1506 sq ft and features semi covered car parking space and a front side lawn.

The ground floor of this small house plan has a built up area of approx: 785 sq ft and features a living room, dining area, one decent size bedroom, one common bathroom, and open kitchen with parallel islands (kitchen counter-top) and a separate wash area. The wash area can be converted into an attached bathroom if required.

The first floor in this west facing house plan has a super built up area of approx 721sq ft. One the first floor in this house plan, we have provided one master bedroom with an attached bathroom and balcony at the front side, another bedroom with a common toilet, midsized sitting area and an open terrace on the other side.

The front design of this two storey small house looks pretty Indian but modern. We have kept grey as the base color, and used matching tiles to highlight the front elevation design. There is a bit of yellow and maroon color on the exterior wall and all in all the complete view of this duplex house looks just amazing. This is a compact house design, but it looks rich and luxurious because of the beautiful front and side elevation design.

This house plan design can be tweaked according to your requirements and so, if you liked this house design then feel free to ask us for any customization needs.

Plan Specification

Ground floor in this small house plan has a built up area of approx: 785 sq ft. Features one living room, separate dining area, one bedroom with a common toilet, open kitchen with two island and separate wash area and provision for a small front side lawn

  • Bedroom
    1

  • Hall
    Yes

  • Kitchen
    1

  • Common Bathroom
    1

  • Study
    No

  • Temple
    No

  • Utility space
    Yes

  • Swimming pool
    No

  • Garden
    Yes

  • Car Parking
    Yes

First floor this 3 bedroom house design has a built up area of approx: 721 sq ft. The first floor of the house features two bedrooms, two bathrooms, one balcony, sitting area and an open terrace of approx 150 sq ft.

  • Bedroom
    2

  • Hall
    Yes

  • Attached Bathroom
    1

  • Common Bathroom
    1

  • Study
    No

  • Temple
    No

  • Balcony
    1

  • Utility space
    Yes

  • Swimming pool
    No

  • Garden
    Yes

  • Car Parking
    No

House Plan and Elevation Images

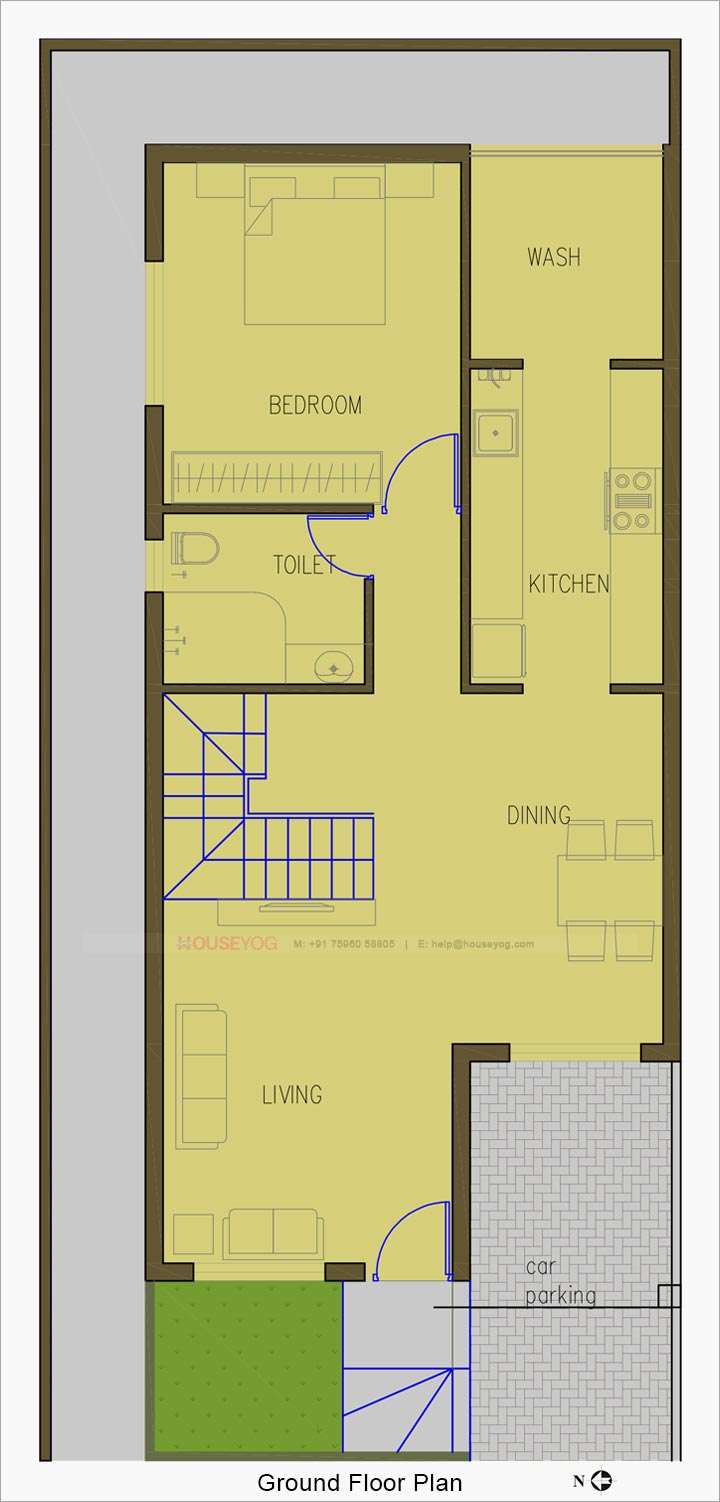

Ground floor plan
Ground floor plan

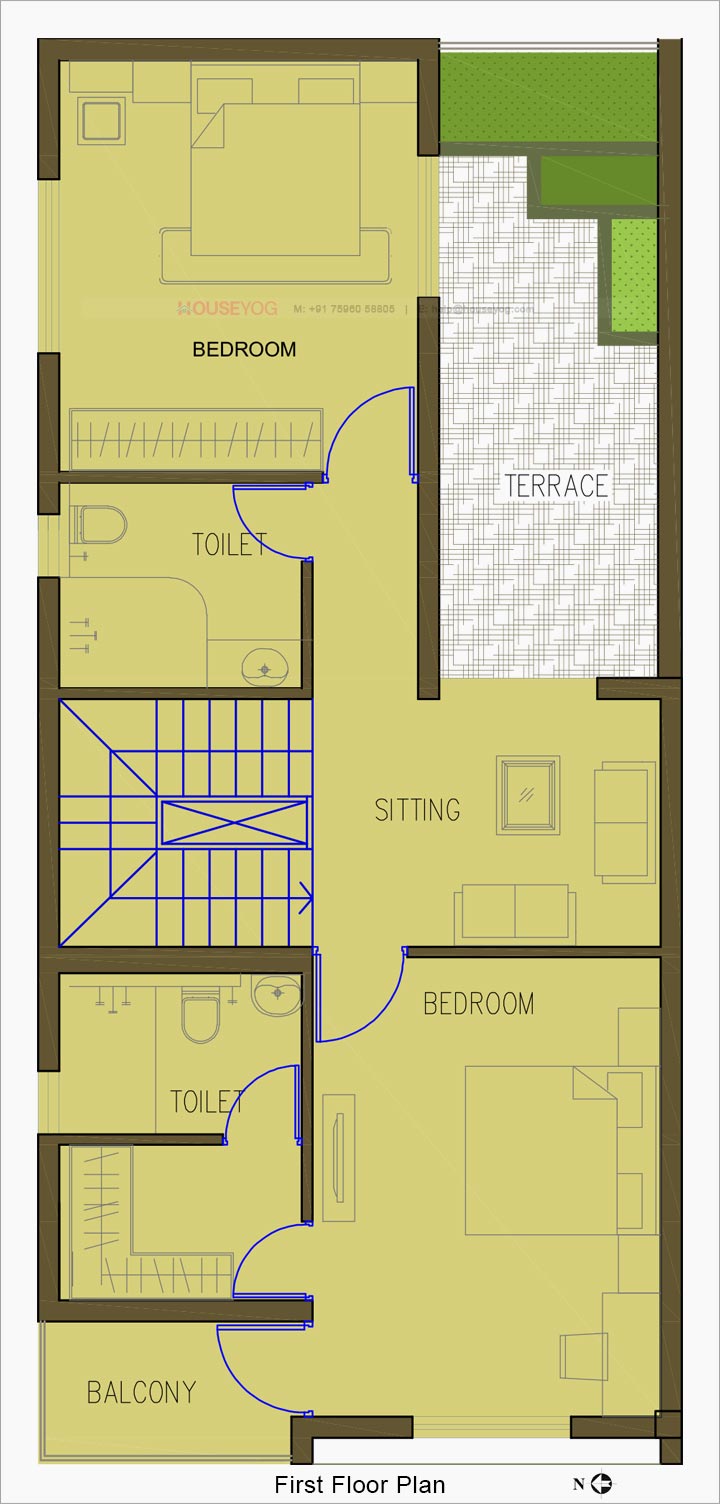

First floor plan
First floor plan

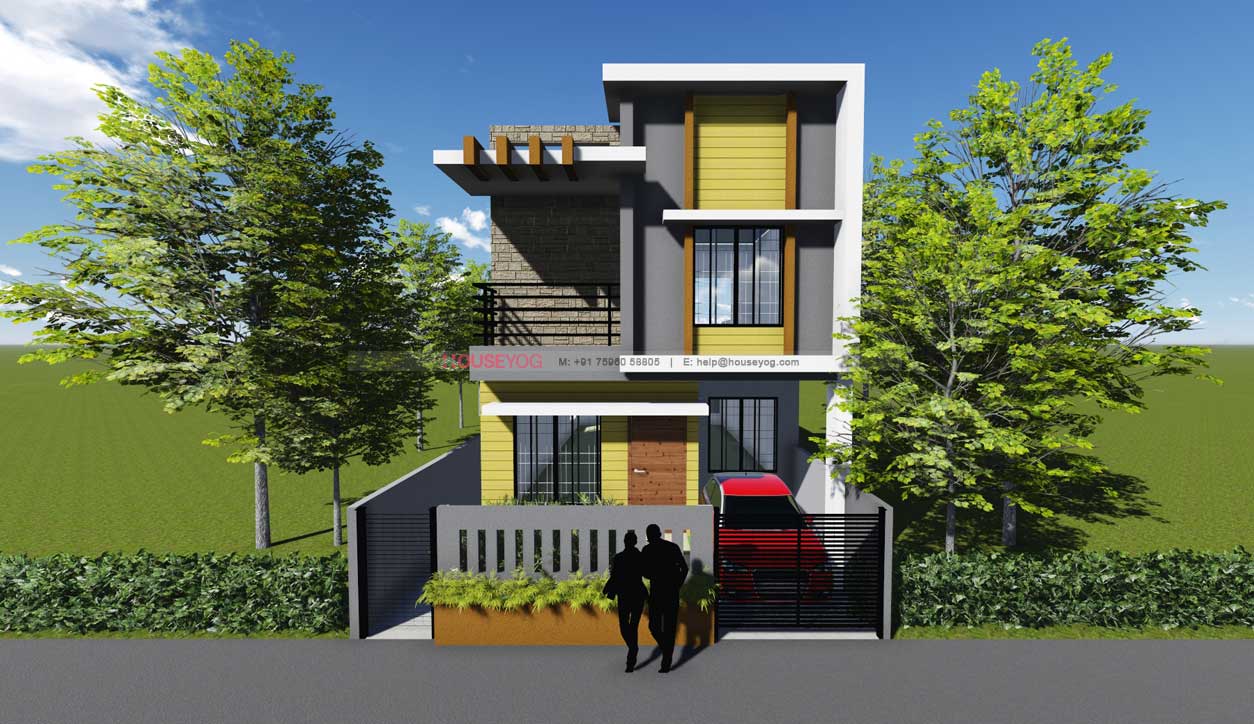

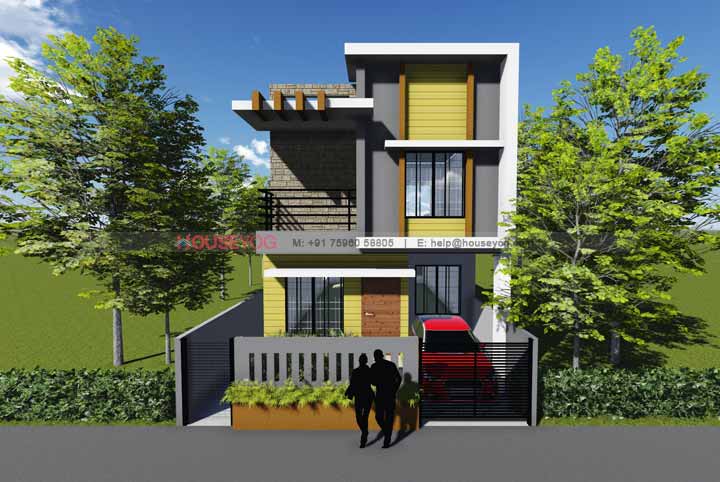

House Elevation
House Elevation

Design style: Duplex, Indian, Luxury, Modern, Simple

Last updated on: 06 Jan 2021

What's included in complete plan set?

  • Space optimized floor plan with measurements
  • High definition 3D front elevation design
  • Structural and Working drawings
  • Drainage and plumbing blue print
  • Electrical and circuit drawings

Get this house plan and design customized for you!

Design Code: HP1031

This house plan and design can be fully customized to meet your plot size and functional requirements. If you liked this plan and need cosmetic changes, then please tell us about your desired changes and we’ll help you get it right at surprisingly affordable rates.

Call us on 75960 58808 and talk to our experts now.

Modify This Plan

Buy This Plan and Start Building

All house design plans and packages includes free customization and changes.

Order this plan now, and get it modified without paying any customization charges.

Basic: Plan and Elevation Design

11088

House plan drawing
Building elevation design
--
--
--
--
--
--

Most Popular

Complete: Plan, Elevation and Drawings

19676

House plan drawing
Building elevation design
Structural drawing
Working drawing
--
--
--
--

Full Set: Plan, Elevation and complete drawings

26764

House plan drawing
Building elevation design
Structural drawing
Working drawing
Drainage drawing
Electrical drawing
Plumbing drawing
--
