3 Bedroom House Plan - 1681 Sqft - HP1007

Key Features of This Plan

  • Layout
    41 x 41 sq ft

  • Plot size
    1681 sq ft

  • Build area
    1636 sq ft

  • Facing
    South

  • Floors
    2

  • Bedrooms
    3

  • Bathrooms
    3

  • Car Parking
    Yes

  • Open Terrace
    No

  • Lift
    No

  • Approx build cost
    1963200

Plan Description

This is a modern two storey, 3 bedroom house plan design suitable for 40 x 41 sq. ft. plot layout. The house plan has been designed to offer comfortable living to a small family. This south facing, duplex house plan features 3 bedrooms, 3 toilets, covered car parking area and open terrace and balconies.

The total built up area for this house is approx 1635.8 sq ft and this design will suit a plot size of approx 1680-1700 square feet. The building elevation design looks attractive from outside and the house offers spacious and comfortable living inside.

In this compact duplex house design, the ground floor has a built up area of approx 888.67 sq ft which features one bedroom with attached toilet, a separate living and sitting area, dining area, open concept kitchen and a separate wash area. The ground floor of this house design also features a covered car parking space.

The first floor of the house has the built up area of approx 747.14 sq ft and features two bedrooms, with attached bathrooms and a separate sitting area and entertainment zone. There is a balcony that opens from the master bedroom.

First floor of this house also features a covered terrace and one open terrace with a sitting area. The terrace area is adding to the luxury of the house. Half of the open terrace is covered, so that you can enjoy rain and the rest half is open so you can enjoy the rains.

If you are planning to build your dream home on a smaller plot size of around 1600-1700 sq ft area, and you are looking for a house design that offers the look of a luxury house and can be built in budget, this beautiful house design may be the one you need to check.

Plan Specification

Ground floor built up area approx: 888.67 sq ft, separate wash area, gardening space

  • Bedroom
    1

  • Hall
    Yes

  • Kitchen
    1

  • Attached Bathroom
    2

  • Study
    No

  • Temple
    No

  • Utility space
    Yes

  • Swimming pool
    No

  • Garden
    No

  • Car Parking
    Yes

First floor built up area approx: 747.14 sq ft, balcony with master bedroom, huge open and covered terrace with plotted plants and sitting area

  • Bedroom
    2

  • Hall
    Yes

  • Attached Bathroom
    2

  • Study
    No

  • Temple
    No

  • Balcony
    1

  • Utility space
    Yes

  • Swimming pool
    No

  • Garden
    No

  • Car Parking
    No

House Plan and Elevation Images

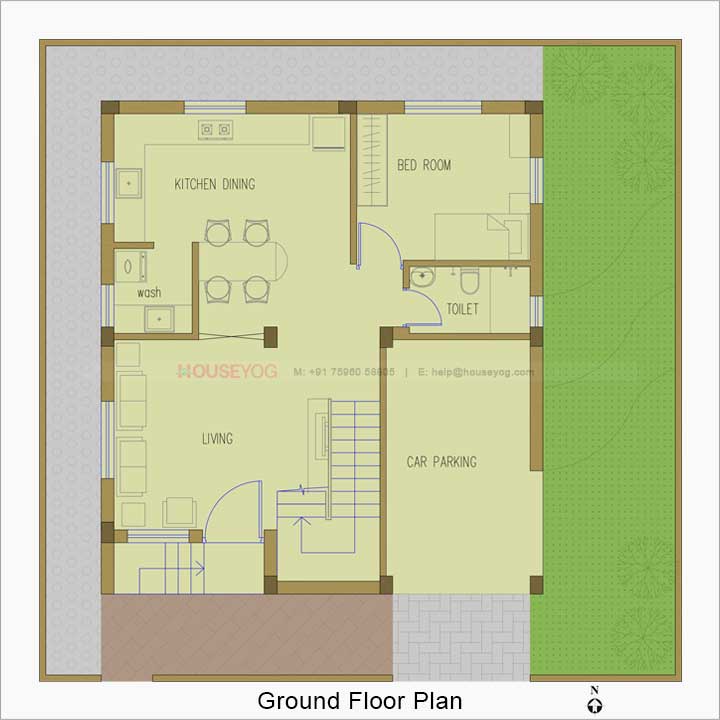

Ground floor plan
Ground floor plan

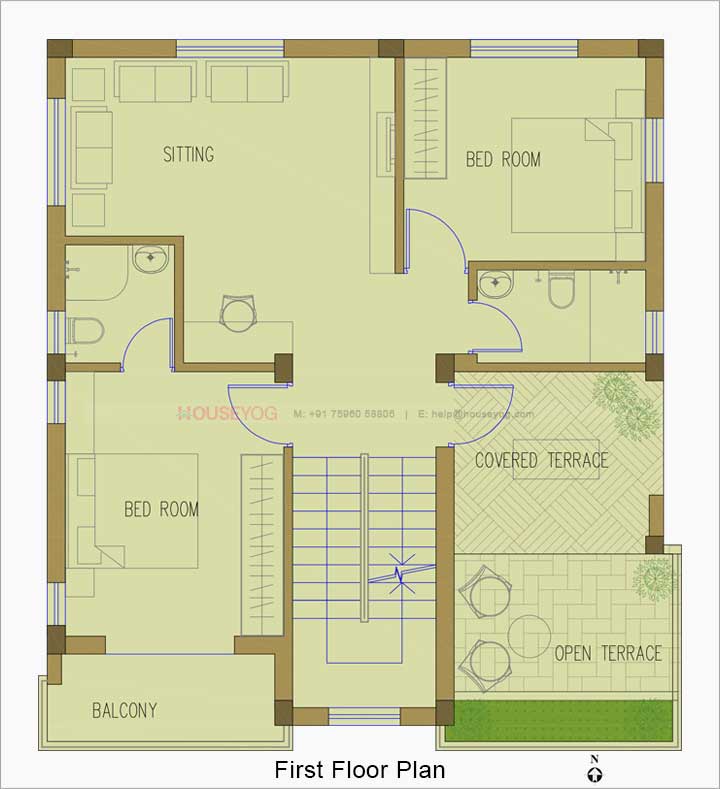

First floor plan
First floor plan

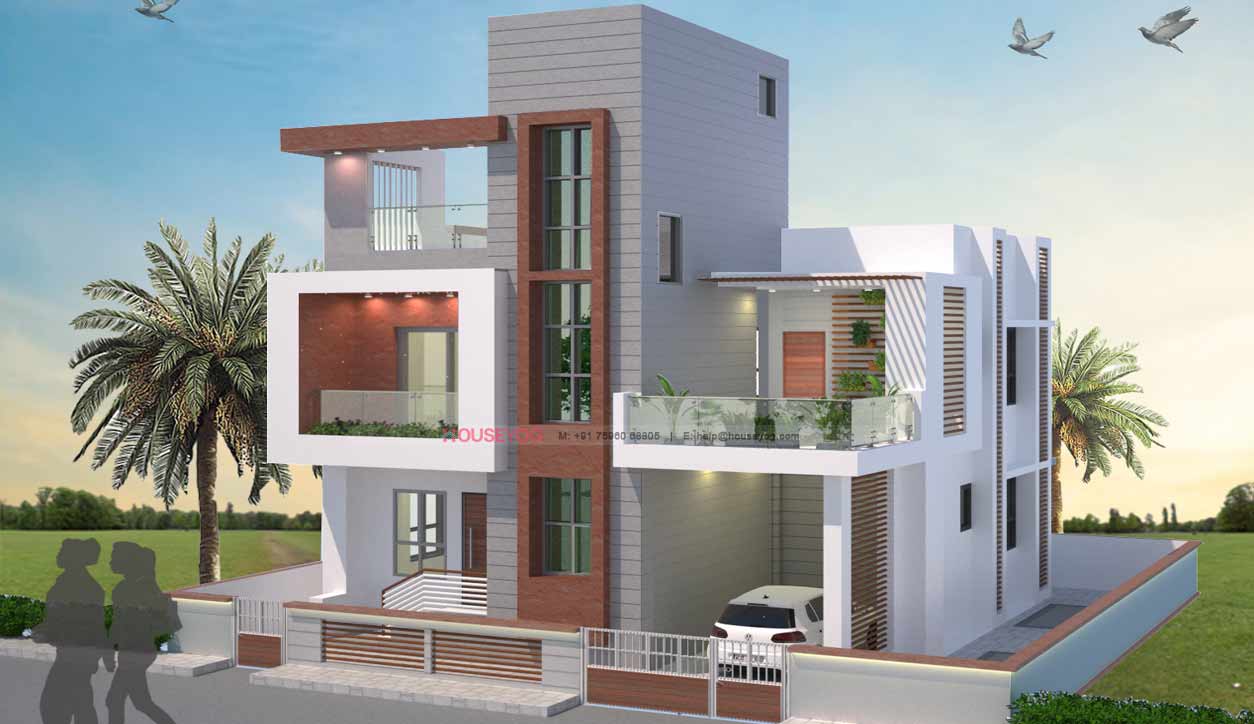

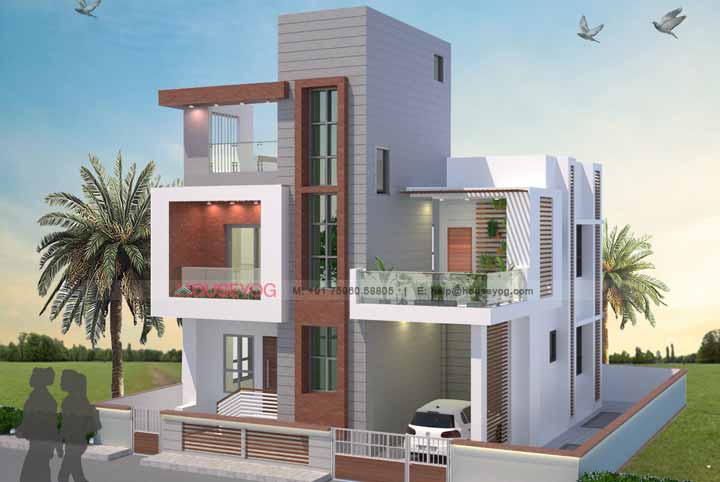

House Elevation
House Elevation

Design style: Budget, Duplex, Indian, Modern

Last updated on: 19 Dec 2020

What's included in complete plan set?

  • Space optimized floor plan with measurements
  • High definition 3D front elevation design
  • Structural and Working drawings
  • Drainage and plumbing blue print
  • Electrical and circuit drawings

Get this house plan and design customized for you!

Design Code: HP1007

This house plan and design can be fully customized to meet your plot size and functional requirements. If you liked this plan and need cosmetic changes, then please tell us about your desired changes and we’ll help you get it right at surprisingly affordable rates.

Call us on 75960 58808 and talk to our experts now.

Modify This Plan

Buy This Plan and Start Building

All house design plans and packages includes free customization and changes.

Order this plan now, and get it modified without paying any customization charges.

Basic: Plan and Elevation Design

12724

House plan drawing
Building elevation design
--
--
--
--
--
--

Most Popular

Complete: Plan, Elevation and Drawings

22948

House plan drawing
Building elevation design
Structural drawing
Working drawing
--
--
--
--

Full Set: Plan, Elevation and complete drawings

31672

House plan drawing
Building elevation design
Structural drawing
Working drawing
Drainage drawing
Electrical drawing
Plumbing drawing
--
