1325 Sq Ft House Plan - 3 Bhk, South Facing House Floor Plan - HP1038

Key Features of This Plan

  • Layout
    36 x 30 sq ft

  • Plot size
    1325 sq ft

  • Build area
    1926 sq ft

  • Facing
    South

  • Floors
    2

  • Bedrooms
    3

  • Bathrooms
    3

  • Car Parking
    Yes

  • Open Terrace
    No

  • Lift
    No

  • Approx build cost
    2311200

Plan Description

Here's a highly optimized house plan for 1300-1350 sq ft plot area. This two storey house plan has been designed for one of clients from Bokaro, Jharkhand. If you look at the layout of the plot, it has an odd size dimension, and we have tried to best use the available space and provide as many rooms and features as requested by our client.

The total plot area is approx 1325 sq ft, and we have left space for the septic tank, borewell and provided spacious car parking space and a separate Puja cabinet/section in the living room.

The house has been planned and designed in such a way, that the ground floor can be rented out if needed and the small family can stay separately on the first floor.

Total built up area on the ground floor is approx 900 sq ft, excluding the car parking area which is approx 250 sq ft. Client wanted a spacious car parking area to park one big car and bikes, cycle etc. There is one bedroom, kitchen, living and dining, bathroom with separate WC on the ground floor.

On the first floor of this two storey house, there are two bedrooms, one living cum dining room, one kitchen and two bathrooms. There is a Puja cabinet in one of the bedrooms and we have also provided two balconies.

Plan Specification

Ground floor built area approx 708 sq ft and features 1 bedroom, kitchen, living and dining room with puja space and a bathroom with separate WC

  • Bedroom
    1

  • Hall
    Yes

  • Kitchen
    1

  • Common Bathroom
    1

  • Study
    No

  • Temple
    Yes

  • Utility space
    No

  • Swimming pool
    No

  • Garden
    No

  • Car Parking
    Yes

First floor built area approx 967 sq ft and features 2 bedroom (with puja cabinet in one of the bedrooms), one kitchen, one living and dining room, one common and one attached bathroom.

  • Bedroom
    2

  • Hall
    Yes

  • Kitchen
    1

  • Attached Bathroom
    1

  • Common Bathroom
    1

  • Study
    No

  • Temple
    Yes

  • Balcony
    2

  • Utility space
    No

  • Swimming pool
    No

  • Garden
    No

  • Car Parking
    No

House Plan and Elevation Images

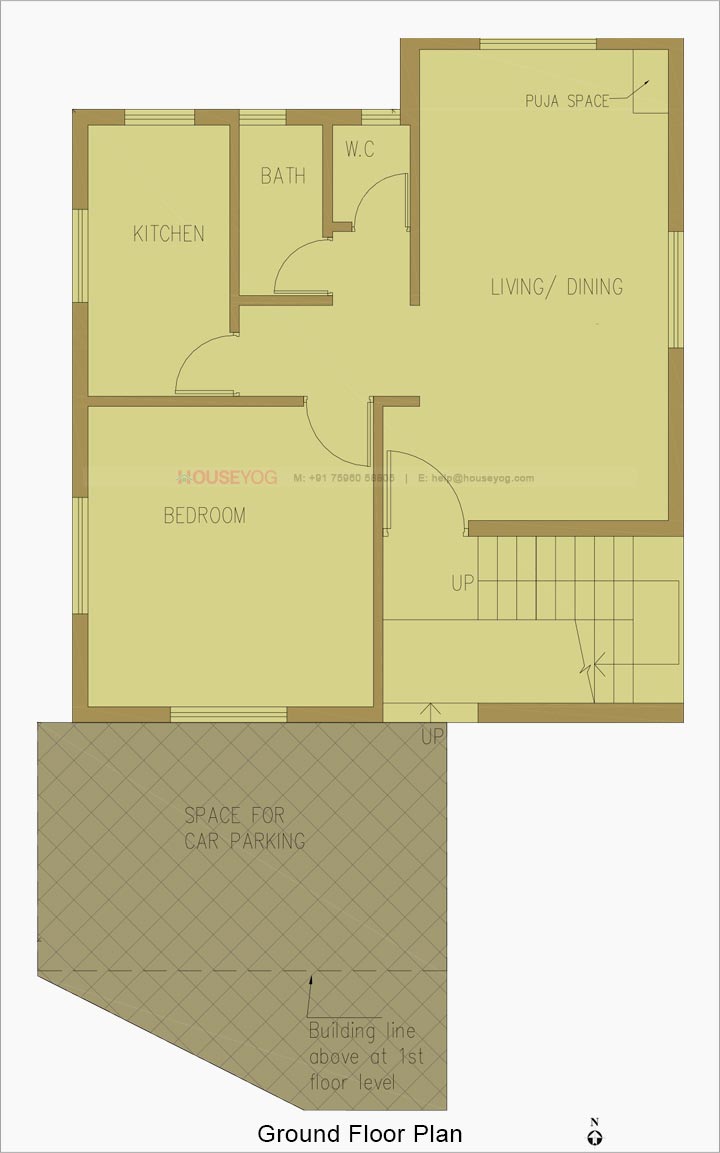

Ground floor plan
Ground floor plan

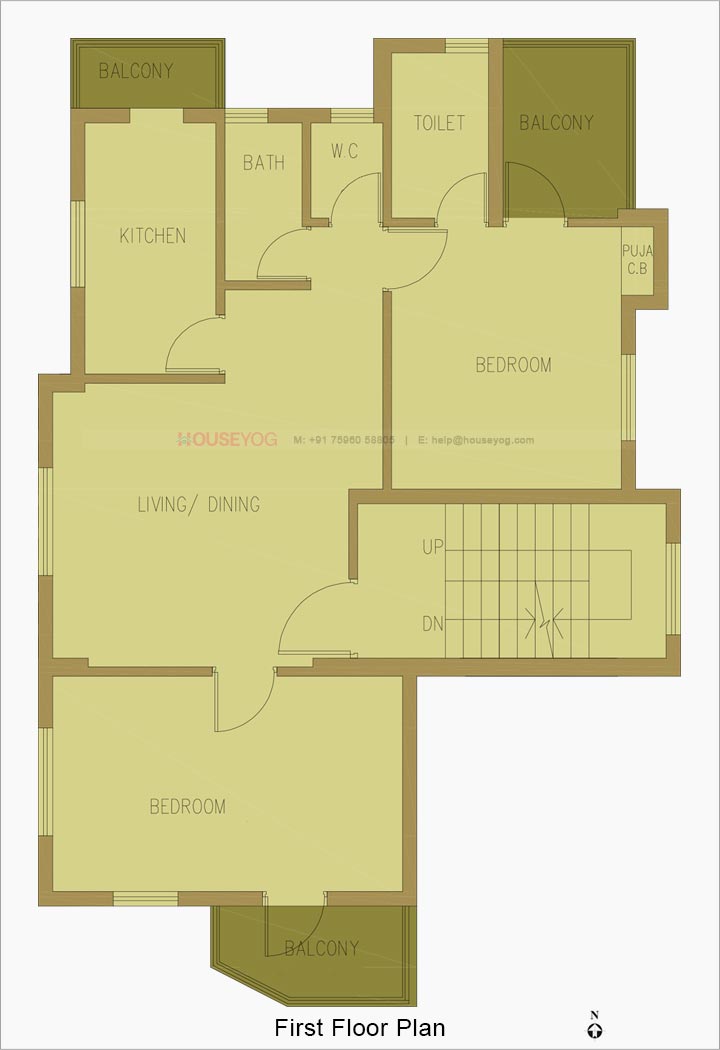

First floor plan
First floor plan

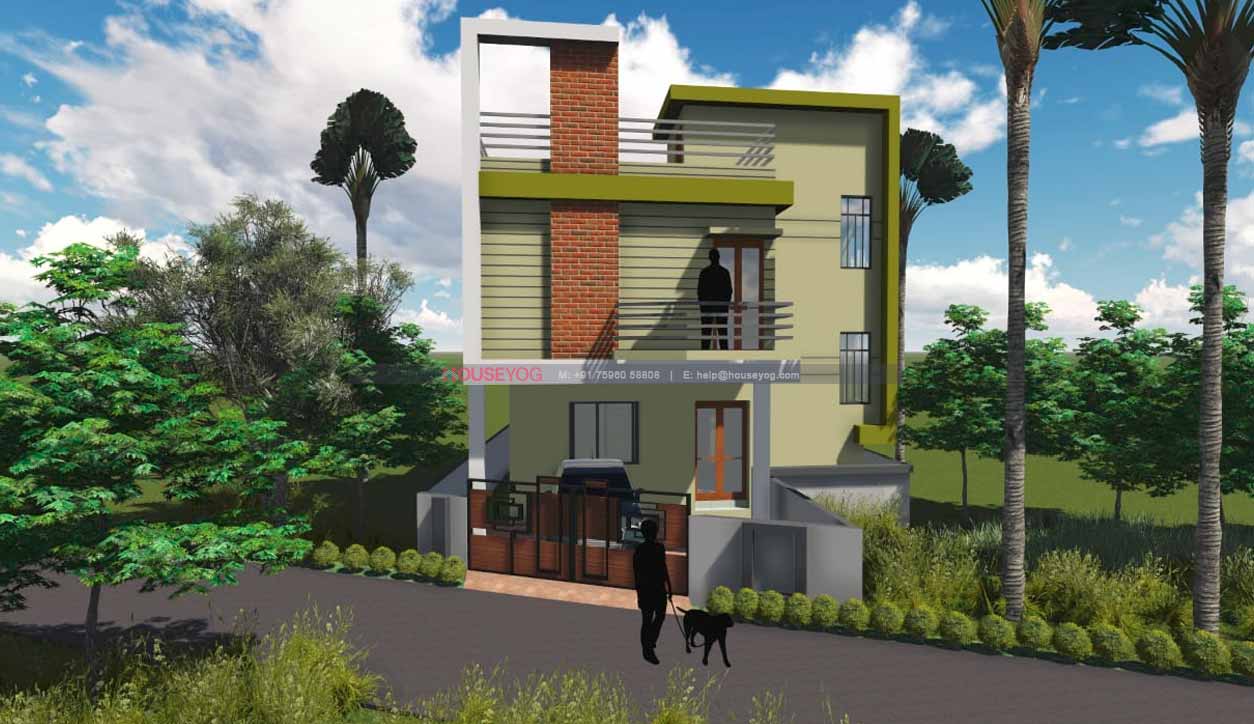

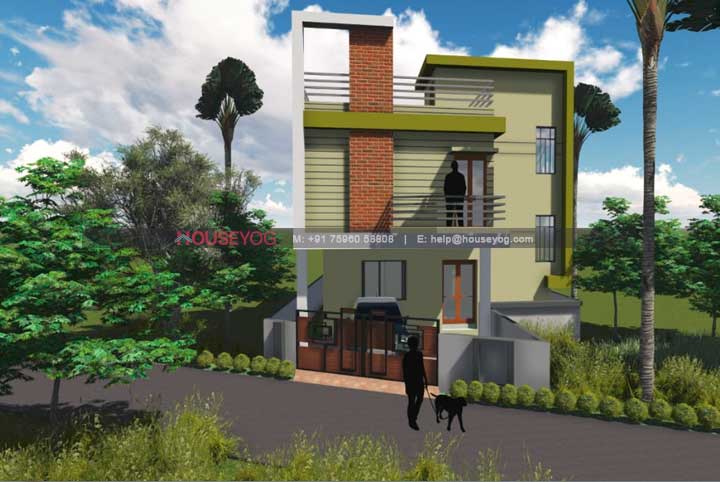

House Elevation - Front View
House Elevation - Front View

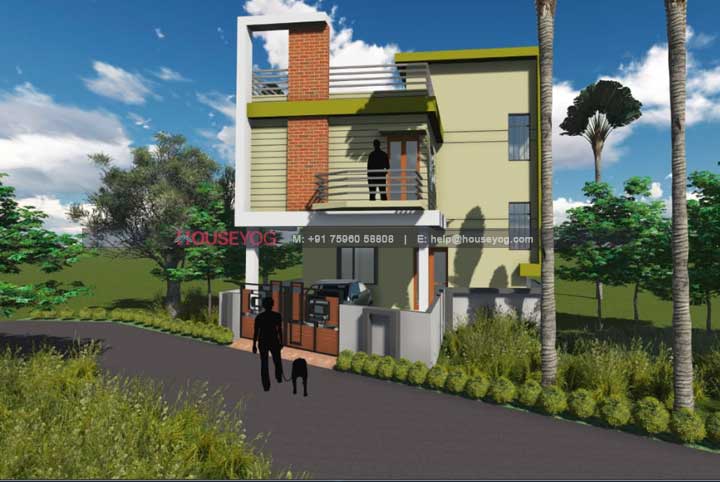

House Elevation - Side View
House Elevation - Side View

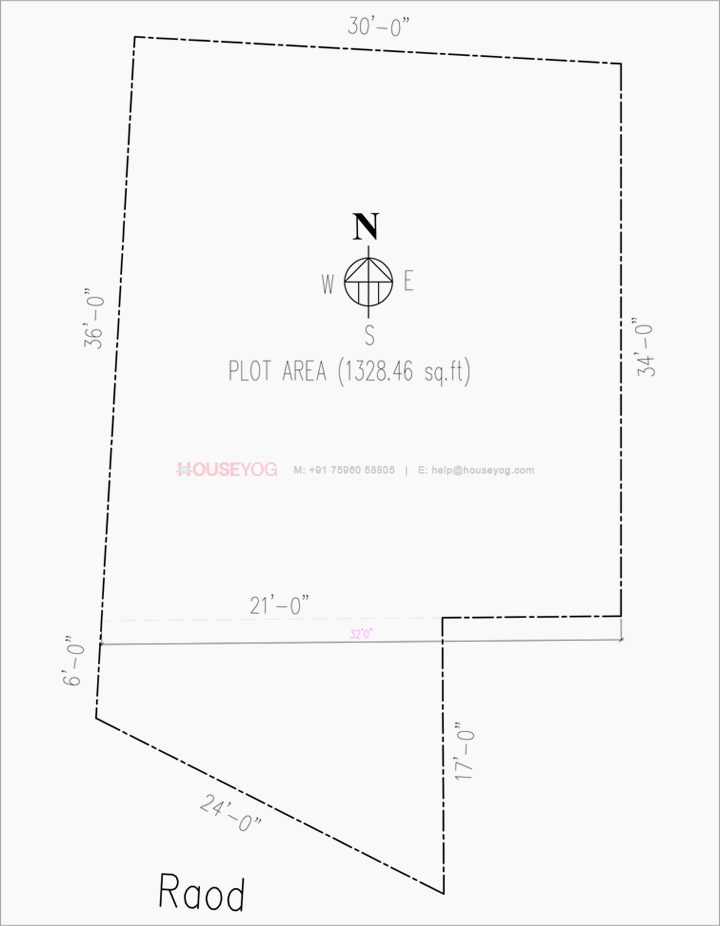

Plot Area
Plot Area

Design style: Budget, Indian, Modern

Last updated on: 24 May 2021

What's included in complete plan set?

Download a sample plan set

  • Space optimized floor plan with measurements
  • High definition 3D front elevation design
  • Structural and Working drawings
  • Drainage and plumbing blue print
  • Electrical and circuit drawings

This plan design can be customized!

This house plan design can be customized to meet your requirements. If you liked this plan and need cosmetic changes, then please tell us about your desired changes and we’ll help you get it right. Click the button to tell us your customization needs, or call 75960 58808.

Modify This Plan

Buy This Plan and Start Building

All house design plans and packages includes free customization and changes.

Order this plan now, and get it modified without paying any customization charges.

Basic: Plan and Elevation Design

10300

House plan drawing
Building elevation design
--
--
--
--
--
--

Most Popular

Complete: Plan, Elevation and Drawings

19125

House plan drawing
Building elevation design
Structural drawing
Working drawing
--
--
--
--

Full Set: Plan, Elevation and complete drawings

25450

House plan drawing
Building elevation design
Structural drawing
Working drawing
Drainage drawing
Electrical drawing
Plumbing drawing
A3 size printed plan set
