30×40 Plot House Planning Guide (What You Can Build + Layout Tips)

A 30×40 plot is one of the most common plot sizes in India. Whether in cities, towns, or other developing areas, many people either own this size or actively look for it while buying land. A 1200 sq ft plot appears good enough for small residential buildings in India. And most often, it comes under the budget of the buyer when purchasing a new piece of land to build a house.

But once the plot is finalised, the real confusion begins.

Can you build a proper 3BHK on a 30×40 plot?
Should you go for a single floor or a duplex?
Will there be enough space for parking and ventilation?

These are the most practical questions that come up during planning, and the answers are not always obvious. Whether you are planning to buy a 30×40 plot or already own one, this guide will help you understand how to plan your house properly.

In this guide, you’ll understand what you can realistically build on a 30×40 plot, the challenges you may face, and how to plan your layout properly before starting construction.

What Can You Build on a 30×40 Plot?

A 30×40 plot gives you a total area of 1200 sq ft, but the usable built-up area will always be lower due to setbacks, open space, and circulation.

In most cases, a 30×40 plot is suitable for:

• A compact 3BHK house
• A spacious 2BHK with better room sizes
• A duplex house with rooms distributed across two floors

In practical terms, a 30×40 plot is generally considered ideal for a compact 3BHK house or a duplex layout in India.

However, what you choose depends on your space priorities and lifestyle needs.

Is a 30×40 Plot Enough for a 3BHK House?

This is one of the most common questions we hear from our clients.

The short answer is yes, a 30×40 plot is enough for a 3BHK house. But it requires careful layout planning.

Since the width is 30 ft, you can arrange rooms side by side more comfortably compared to narrower plots. This makes it possible to fit three bedrooms, a living space, and a kitchen within the available area.

However, the layout will be compact, not very spacious.

Room sizes may need adjustment, and you may have to compromise slightly on open areas or circulation space.

If you want a deeper understanding of space requirements, you can also read our detailed guide on plot size for 3BHK house in India, where we explain minimum and ideal sizes in detail.

Ground Floor vs Duplex: What Works Better?

One of the biggest decisions for a 30×40 plot is whether to build everything on one floor or go for a duplex.

If you try to fit all rooms on a single floor, the layout can feel a little tight. You will need to carefully adjust room sizes, and space for parking or open areas may become limited.

A duplex, on the other hand, allows you to distribute spaces across two floors. Typically, the living room, kitchen, and one bedroom are placed on the ground floor, while the remaining bedrooms are shifted to the upper floor.

This improves space utilisation and makes the house feel less congested.

For most families, a duplex layout works better on a 30×40 plot, especially when planning a 3BHK house.

Also, the construction budget is another important consideration that must be evaluated carefully. Building a duplex usually increases the construction cost due to additional structural work, a staircase, and finishing requirements.

To make the right decision, it’s important to understand the practical challenges that come with this plot size.

Real Layout Planning Challenges in a 30×40 Plot

While a 30×40 plot is practical, it does come with certain challenges that should be understood early.

One of the main issues is space balancing. You need to accommodate a living room, kitchen, bedrooms, bathrooms, staircase, and parking, all within a limited footprint.

The staircase often becomes a critical element. If not planned properly, it can consume a significant portion of the usable area and disturb the flow of the layout.

Ventilation is another concern. If the house is built wall-to-wall with minimal open space, rooms may not get sufficient natural light and airflow.

These challenges are not deal-breakers, but they highlight the importance of thoughtful planning.

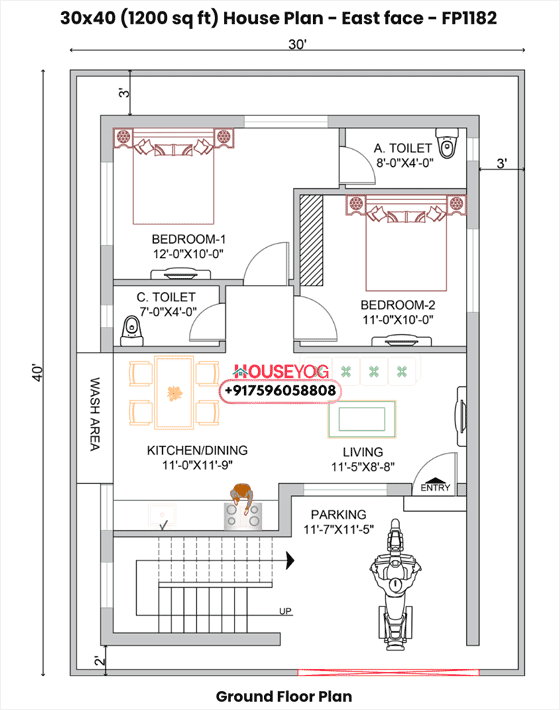

Parking Planning in a 30×40 Plot

Parking is one of the most commonly overlooked aspects in small and mid-sized plots.

In a 30×40 plot, accommodating one car parking space is usually possible, but it needs to be planned from the beginning. If parking is adjusted later, it often interferes with the internal layout.

You also need to consider entry movement, gate placement, and turning radius. A poorly planned parking area can affect both the usability and aesthetics of the house.

If you have more than one vehicle, space management becomes even more critical.

Common Mistakes to Avoid

You may face issues later because of poor decisions made early.

A common mistake in planning a 30×40 layout is trying to fit too many features into a limited space. This often leads to cramped rooms and poor circulation.

Another issue is ignoring ventilation while maximising the built-up area. While it may seem beneficial initially, it affects long-term comfort.

Some people also finalise the plot without thinking about staircase placement or future expansion, which limits flexibility later.

Avoiding these mistakes can make a significant difference in the final outcome.

When a 30×40 Plot May Not Be Enough

A 30×40 plot works well for small 2-3 BHK homes, but it may not suit every requirement.

If you are planning a very spacious 3BHK with large rooms, multiple parking spaces, or additional features like a home office or pooja room on the ground floor, you may find this size restrictive.

Similarly, for larger families or future expansion plans, a bigger plot may offer better flexibility.

Understanding your long-term needs before finalising the plot can help avoid limitations later.

You can also refer to our detailed guide on best plot size for house in India to understand how this compares with other plot sizes.

Explore 30×40 House Plans for Better Understanding

Once you understand what is possible on a 30×40 plot, the next step is to look at real layouts.

You can explore our collection of 30×40 house plans to see how different designs utilise space effectively.

This will help you understand how rooms are placed, where the staircase is typically positioned, and how parking is integrated into the layout, and help you visualise your future home better.

Estimate Construction Cost for Your 30×40 House

Plot size and construction cost are closely connected.

Even within the same 30×40 plot, the total cost can vary depending on whether you build a single-floor house or a duplex, and the quality of materials you choose.

To get a rough estimate, you can use our construction cost calculator based on your built-up area and requirements.

This helps you plan your budget more realistically before starting construction.

Need Help Planning Your 30×40 House?

Planning a house on a 30×40 plot requires careful space management.

If you already have a plot or are planning to buy one, our architectural design services can help you create a layout that makes the best use of your available space while keeping your budget and future needs in mind.

FAQs on 30×40 Plot House Planning in India

Final Thoughts

A 30×40 plot is a practical and popular choice for building a home in India.

It offers enough space for a comfortable 3BHK if planned carefully, especially with a duplex layout. However, since the area is limited, every design decision matters, from staircase placement to ventilation and parking.

The key is simple: focus on smart planning rather than just fitting more rooms. With the right layout, even a 30×40 plot can give you a comfortable and well-balanced home.
